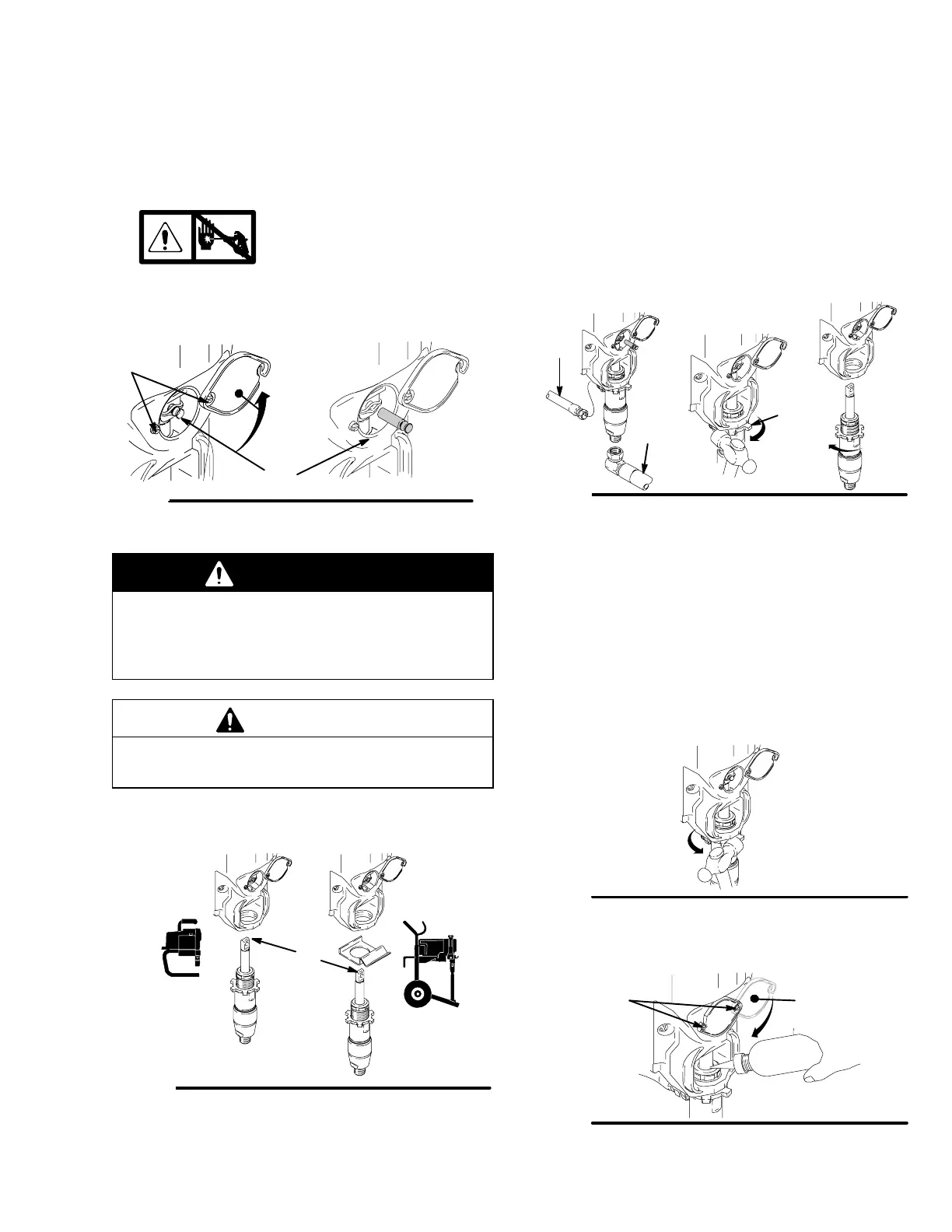

Displacement Pump Replacement
See manual 309053 for pump repair instructions.
See manual 309057 or 309058 for sprayer part number references.
Removal
1. Flush pump (13).
2.
Relieve pressure; page 4.
3. Fig. 10. Loosen two screws (10b) and rotate
cover (10a).
Fig. 10
10a
10b
9a
9573A
4. Cycle pump until pump pin (9a) is in position to be
removed. Remove pump pin (9a).
5. Fig. 11. Remove suction tube (78) and hose (19).
6. Loosen pump jam nut (12). Unscrew pump.
Fig. 11
78
12
9574A
19
Installation
WARNING
If pin works loose, parts could break off due to
force of pumping action. Parts could project
through the air and result in serious injury or prop-
erty damage.
CAUTION
If the pump locknut loosens during operation, the
threads of the drive housing will be damaged.
1. Fig. 12. Extend pump piston rod fully. Apply grease
to top of pump rod at (A) or inside connecting rod.
Fig. 12
9575A
A
2. Fig. 10. Install pump pin (9a). Verify retainer spring
(9b) is in groove of pump pin.
3. Push pump up until pump threads engage.
4. Screw in pump until threads are flush with drive
housing opening. Align pump outlet to back.
5. Fig. 11. Install suction tube (78) and hose (19).
6. Fig. 13. Screw jam nut (12) up onto pump until nut
stops. Tighten jam nut by hand, then tap 1/8 to 1/4
turn with a 20 oz (maximum) hammer to
approximately 75" 5 ft–lb (102 Nm).
Fig. 13
9576A
7. Fig. 14. Fill packing nut with Throat Seal Liquid
(TSL) until fluid flows onto top of seal.
Fig. 14
9577A
10a
10b
8. Fig. 10. rotate cover (10a); tighten screws (10b).
