Graco PROX19 User Manual

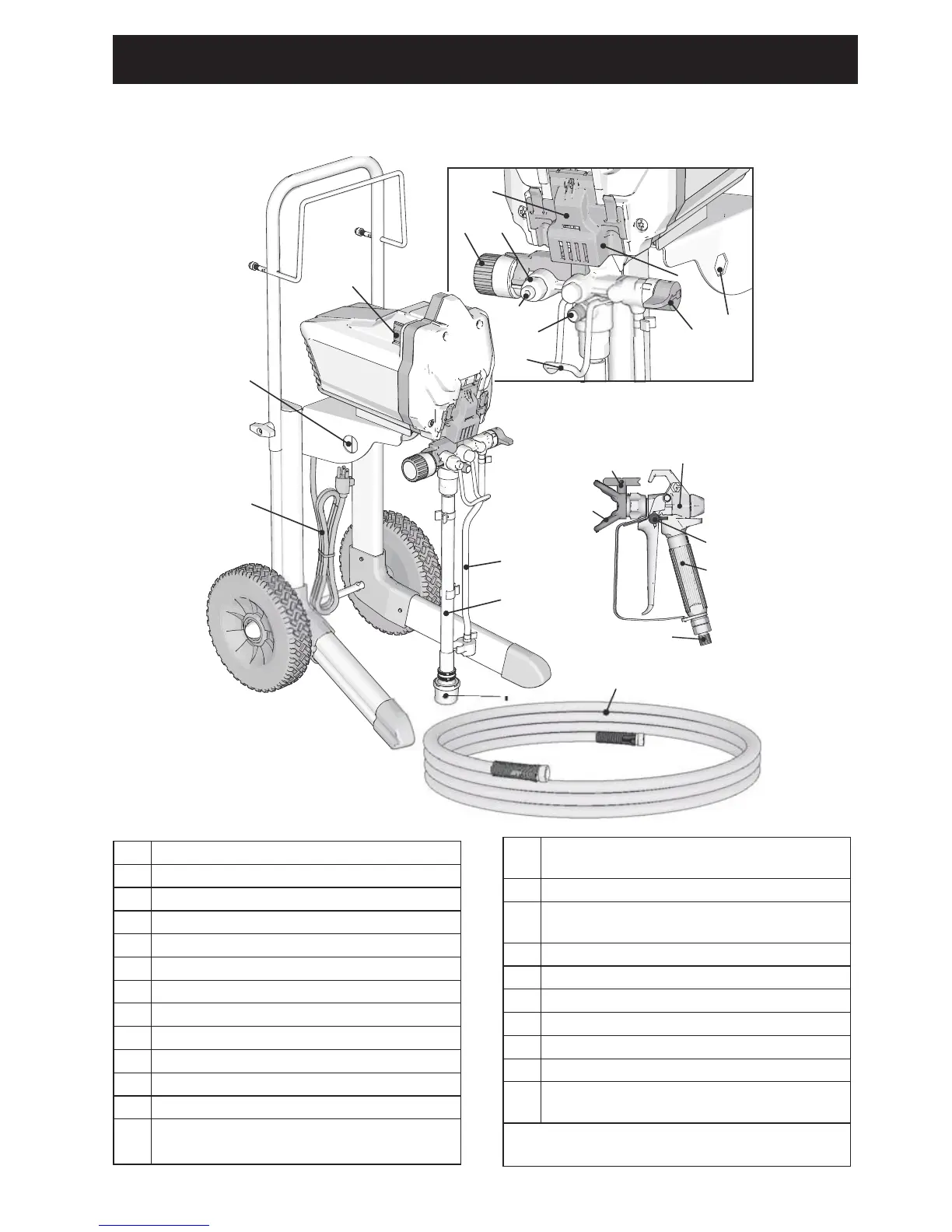

Know Your Sprayer
3A3208B 11
ProX Cart Models
D
C
F
E
T
V
S
R
P
B
N
X
U
Z
ti27117a
Q
A
J
H
G
K
L
M
A PushPrime Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
L Gun Fluid Inlet Fitting
M Gun Fluid Filter (inside handle)
N ProXChange Pump (behind Easy
Access Door)
P Pump Fluid Outlet Fitting (airless
hose connection)
Q Airless Hose
R InstaClean Fluid Filter (inside fluid
outlet)
S Pail Hanger
T Inlet Strainer
U Power Cord
V Easy Access Door
X Pump Removal Tool
Z Inlet Valve Removal Tool
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 28 for more
information.

Graco PROX19 Specifications

General

Max Pressure	3000 PSI
Type	Airless
Power Source	Electric
Voltage	120V
Amp Draw	15 Amps
Max Tip Size	0.019 inches
Hose Length	50 ft
