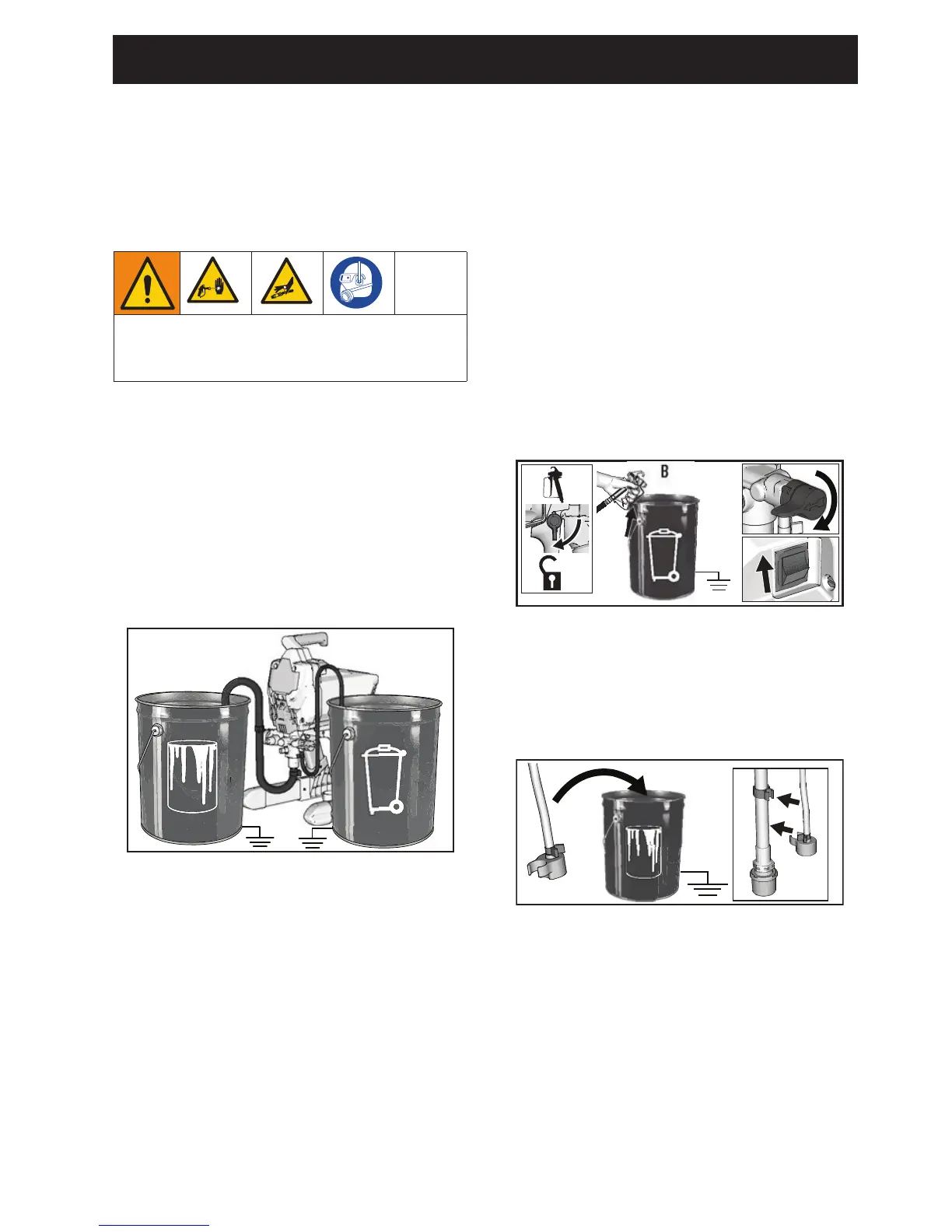

Start Up
3A3208B 15
11. When sprayer starts pumping, flushing
solvent and air bubbles will be purged
from system. Allow fluid to flow out of
drain tube, into waste pail, for 30 to 60
seconds.
12. Turn ON/OFF switch to OFF position.
13. Inspect for leaks. If leaks occur, per-
form Pressure Relief Procedure, page
13, then tighten all fittings and repeat
Start Up. If there are no leaks continue
with the next step.
Fill Pump
1. Move suction tube to paint pail and
submerge suction tube in paint.
2. Turn ON/OFF switch to ON position.
3. Wait to see paint coming out of drain
tube.
4. Turn ON/OFF switch to OFF position.
NOTE: Some fluids may prime faster if
the ON/OFF Switch is momentarily
turned off so the pump can slow and
stop. Turn ON/OFF switch on and off
several times if necessary.
Fill Gun and Hose
1. Hold gun against waste pail. Point gun
into waste pail.
a. Disengage trigger lock.
b. Pull and hold gun trigger.
c. Turn Prime/Spray valve horizontal
to SPRAY position.
d. Turn ON/OFF switch to ON posi-
tion.
2. Trigger gun into waste pail until only
paint comes out of the gun.
3. Release trigger. Engage trigger lock.
4. Transfer drain tube to paint pail and clip
to suction tube.
NOTE: When motor stops, sprayer is ready
to paint. If motor continues to run, sprayer is
not properly primed. Repeat Fill Pump and
Fill Gun and Hose.
High-pressure spray is able to inject toxins
into the body and cause serious bodily
injury. Do not stop leaks with hand or rag.
