Maintenance
3A3208B 31

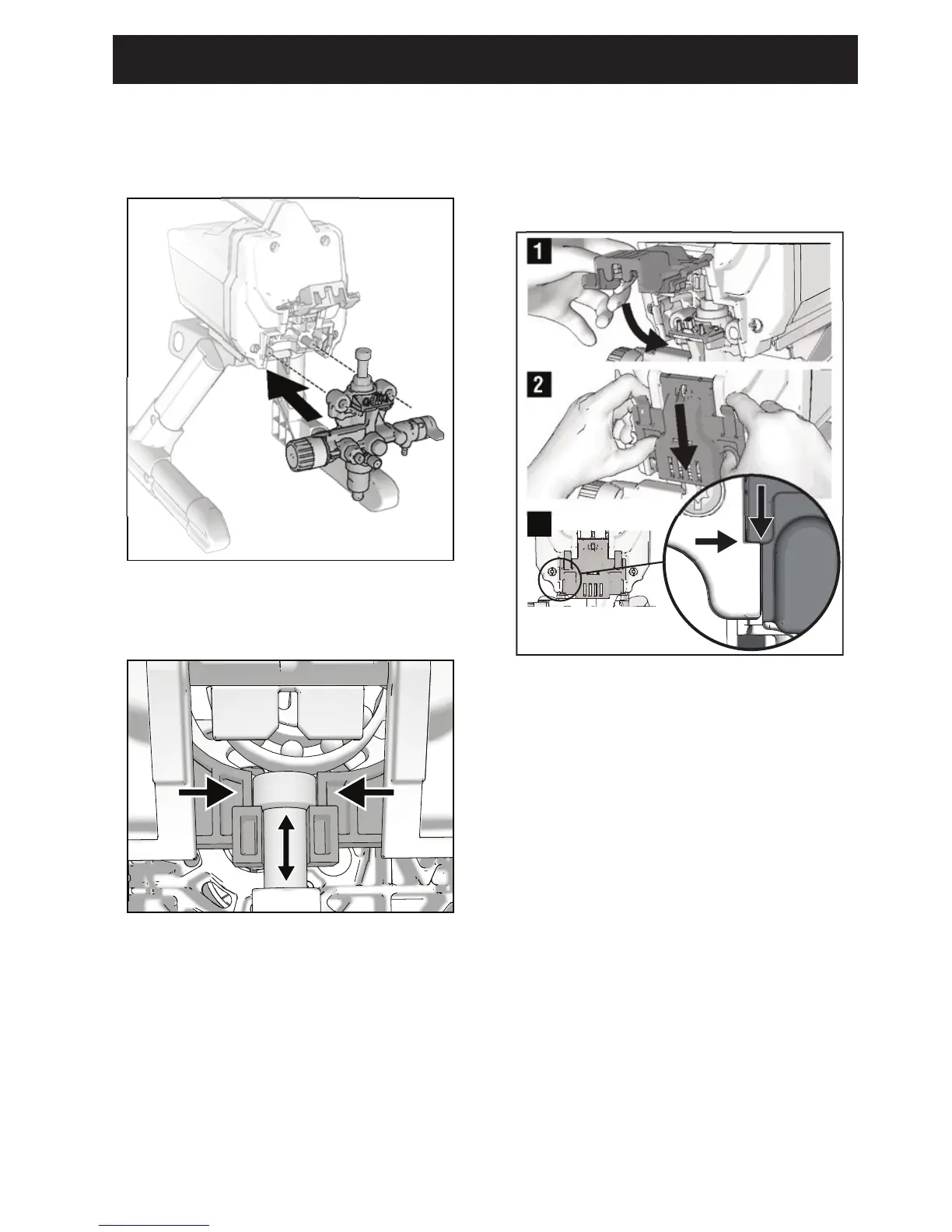

Pump Installation
1. Slide pump assembly onto the mounting
pins.
a. Move pump rod up or down until cap
is level with the opening in the yoke.
b. Push on pump rod to slide pump
assembly back on to mounting pins.
2. Swing easy access door closed while
pushing the entire door towards the inlet
end of the pump.
3. Install hopper if it was removed and any
hoses removed earlier.
4. Plug sprayer into power source.
NOTE: Door must be fully closed and
latched before sprayer will operate.
ti27036a
ti27037a
1
ti27478a
2
3
