5 Booster

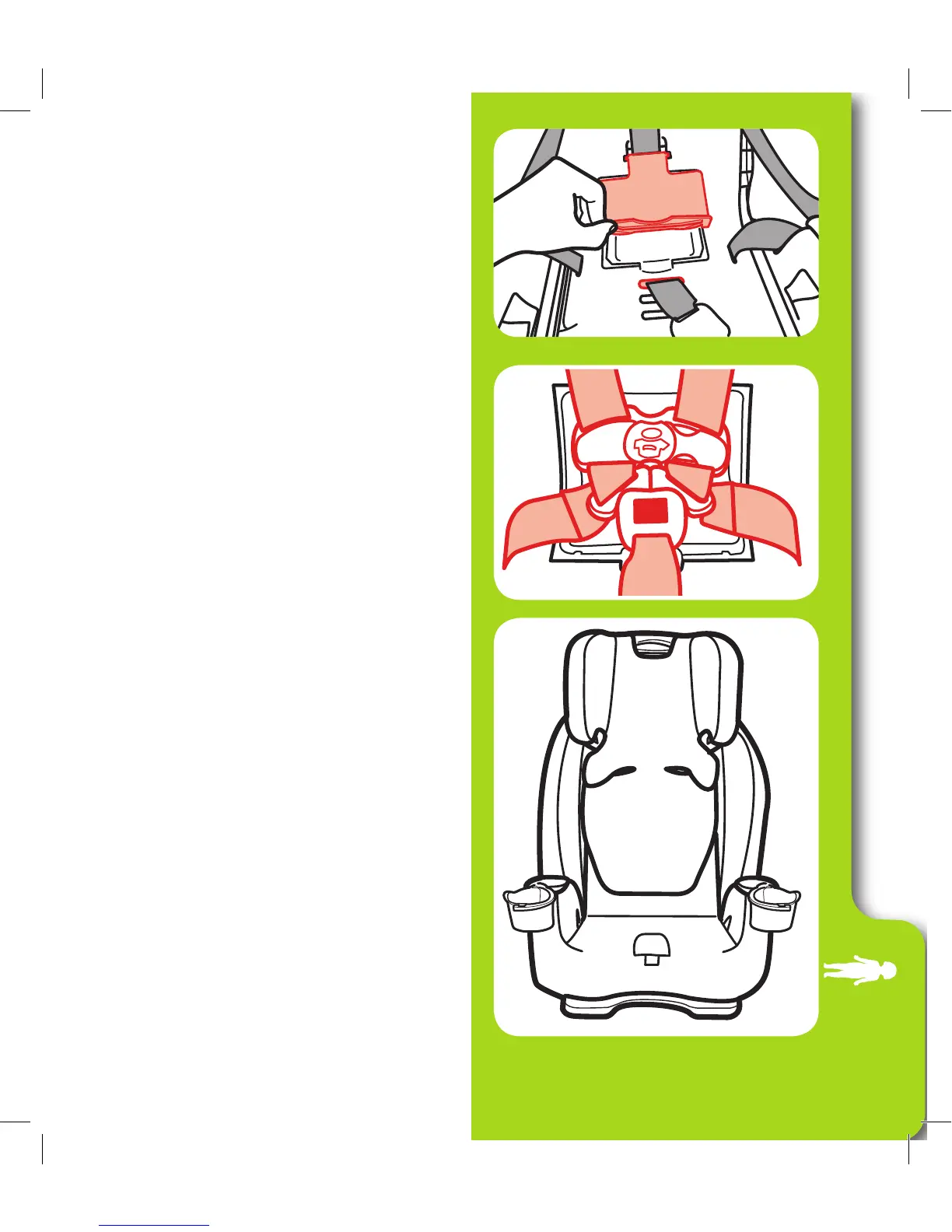

Move Buckle Strap to Rear Slot

Open the Harness Storage Door

and Place Harness, Chest Clip,

Buckle, and Buckle Tongues Inside

Storage Compartment. Close

the Door

Replace Seat Pad

Move the headrest back to its proper

position for your child.
