Graco T Series User Manual

12 306–667

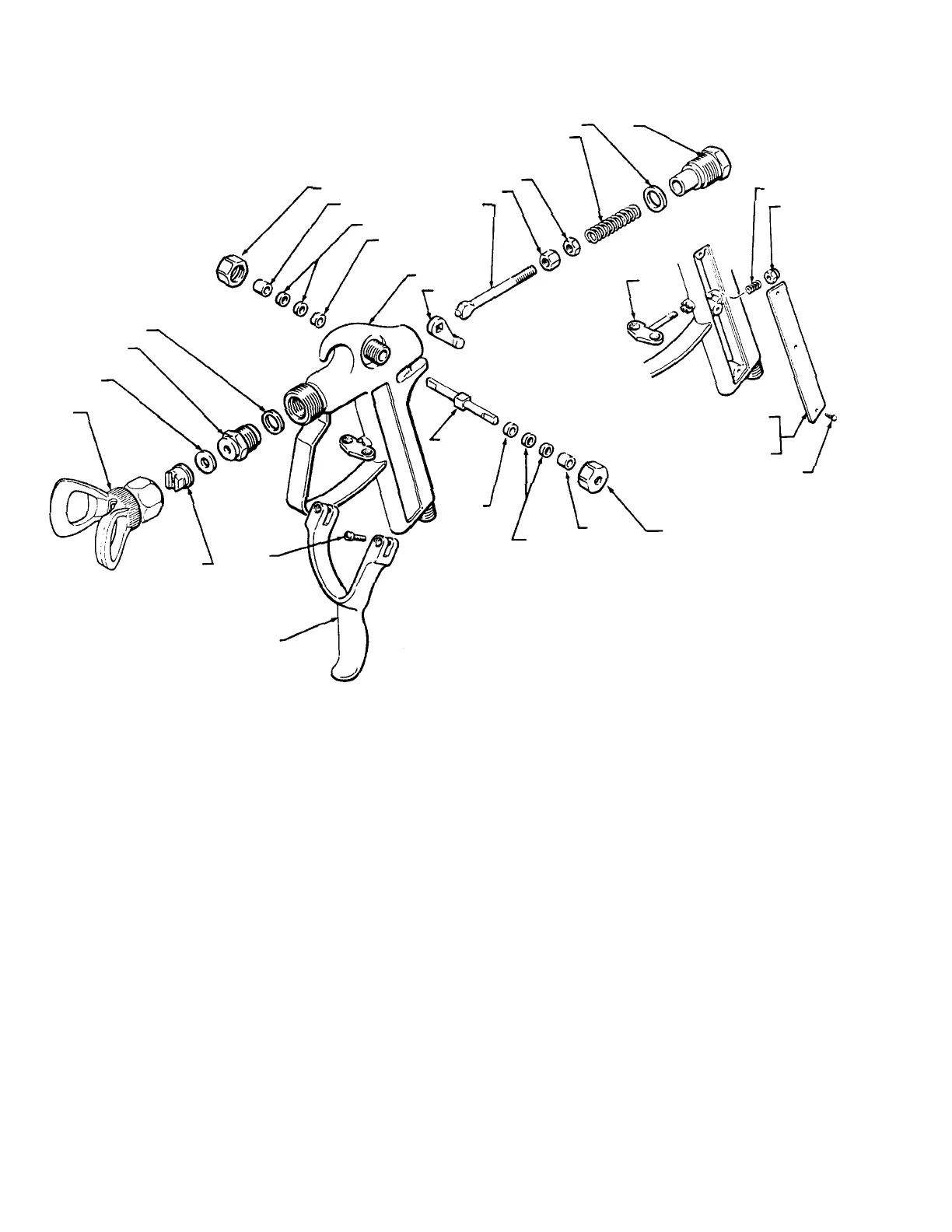

Parts
*
25
†17
†23
†18
SPRAY TIP
(Not included)
13
11†
10†
9†
22
8
1
14
12*
†9
10†
11† 13
3
4
5
(left)
(right)
15
16
2†24
†21
†20
†7
†6
†19
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1* 101–890 SCREW
, fill hd mach;
no. 6–32 x 7/16 2
2 101–965 NUT, lock 1
3 102–817 SCREW
, type “u” drive; no. 0 x 3/16 6
4 164–108 PLA
TE, name 1
5 164–109 PLA
TE, serial 1
6† 164–111 GASKET
, Delrin

1
7† 164–112 SPRING, compression 1
8 164–114 LEVER, cam 1
9† 164–115 GLAND, packing (inner) 2
10† 164–116 P
ACKING, cam shaft leather 4
11† 164–117 GLAND, packing (outer) 2
12* 164–118 SHAFT
, cam 1
13 164–119 NUT
, cam shaft packing 2
14 164–123 TRIGGER 1
15 164–822 STOP
, trigger 1
16 166–938 SPRING, compression 1
17† 166–969 GASKET
, flat Delrin

; 1/16 thick 1
18† 167–730 GASKET
, copper; dif fuser-seat 1
19† 168–330 RETAINER, spring 1
20† 171–240 NUT, lock 1
21† 171–241 NUT
, adjusting 1
22 205–598 BODY
, gun 1
23† 214–966 DIFFUSER SEAT 1
24† 208–137
NEEDLE, fluid valve 1
25* 220–222 TIP GUARD 1
* Recommended “T ool Box” spare parts. Keep on hand to
reduce down time.
† Supplied in Repair Kit 214–969.
