Motor Brush Replacement
795/1095 Motor Brush Removal
NOTE: Replace brushes worn to less than 1/2 in.
Brushes wear differently on each side of motor,
check both sides. Brush Repair Kit 220853 is
available. Spring clip, 110816, may be
purchased separately.
1. Read General Repair Information; page 4.
2.
Relieve pressure; page 4.

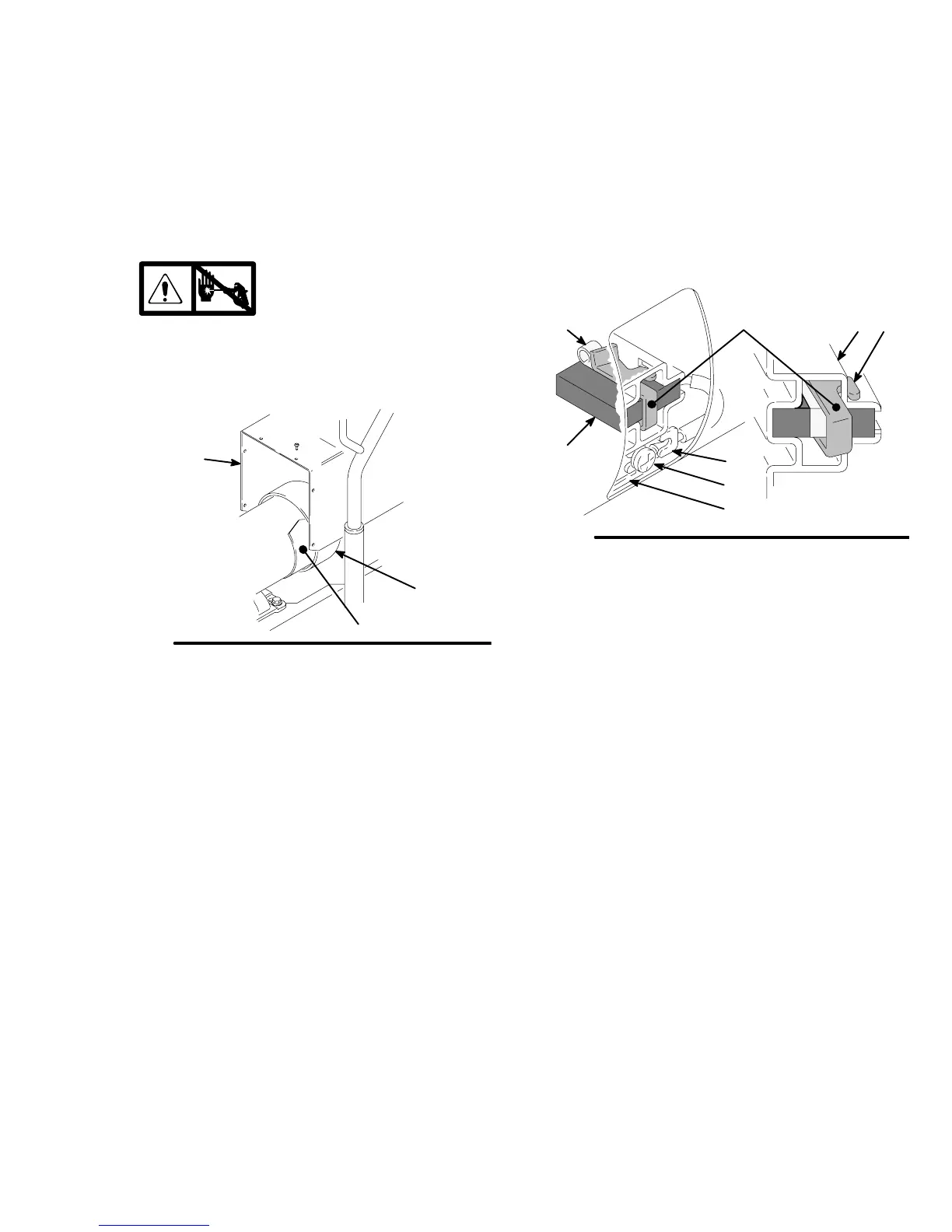

3. Fig. 4. Remove motor shield (90). Remove in-
spection covers (B) and gaskets on each side of
motor.
A
B
54
Fig. 7
7714B
7714A
4. Fig. 8. Push in 110816 spring clip (A) to release
hooks (B) from brush holder (C). Pull out spring
clip.
5. Fig. 8. Loosen terminal screw (D). Pull brush lead
(E) away, leaving motor lead (F) in place. Remove
brush (G) and spring (H).
Fig. 8
H
E
D
F
G
A
01227
BC
6. Inspect commutator for excessive pitting, burning
or gouging. A black color on commutator is normal.
Have commutator resurfaced by a qualified motor
repair shop if brushes wear too fast.
(Continued on page 12)
