Drive Housing Replacement
CAUTION
Do not drop gear cluster (7) when removing drive
housing (10). Gear cluster may stay engaged in
motor front end bell or drive housing.
795/1095 Removal
1.
Relieve pressure; page 4.
2. Remove pump (79); Displacement Pump Re-
placement, page 21.
3. Fig. 14. Remove four screws (123) and remove
shroud (90).
4. Remove four screws (10) and washers (15).
5. Remove four screws (101) and front cover (104).
6. Remove two nuts (33), pail hanger (54) and spring
clip (129).
7. Remove four screws (19) and washers (17) and
bearing housing (126) from drive housing (78).
8. Remove two screws (20) and washers (15) and
pull drive housing (78) off of motor (75).
9. Slide connecting rod (76) out of bearing housing.
795/1095 Installation
1. Slide connecting rod (76) into bearing housing.
2. Push drive housing (78) onto motor (75) and install
with two washers (15) and screws (20).
3. Install bearing housing (126) on drive housing (78)
with four screws (19) and washers (17).
4. Install spring clip (129), pail hanger (54) and two
nuts (33).
5. Install front cover (124) and four screws (101).
6. Install washers (10) and four screws (15).
7. Fig. 14. Install shroud (90) with four screws (123).
8. Install pump (79); Displacement Pump Replace-
ment, page 21.
K

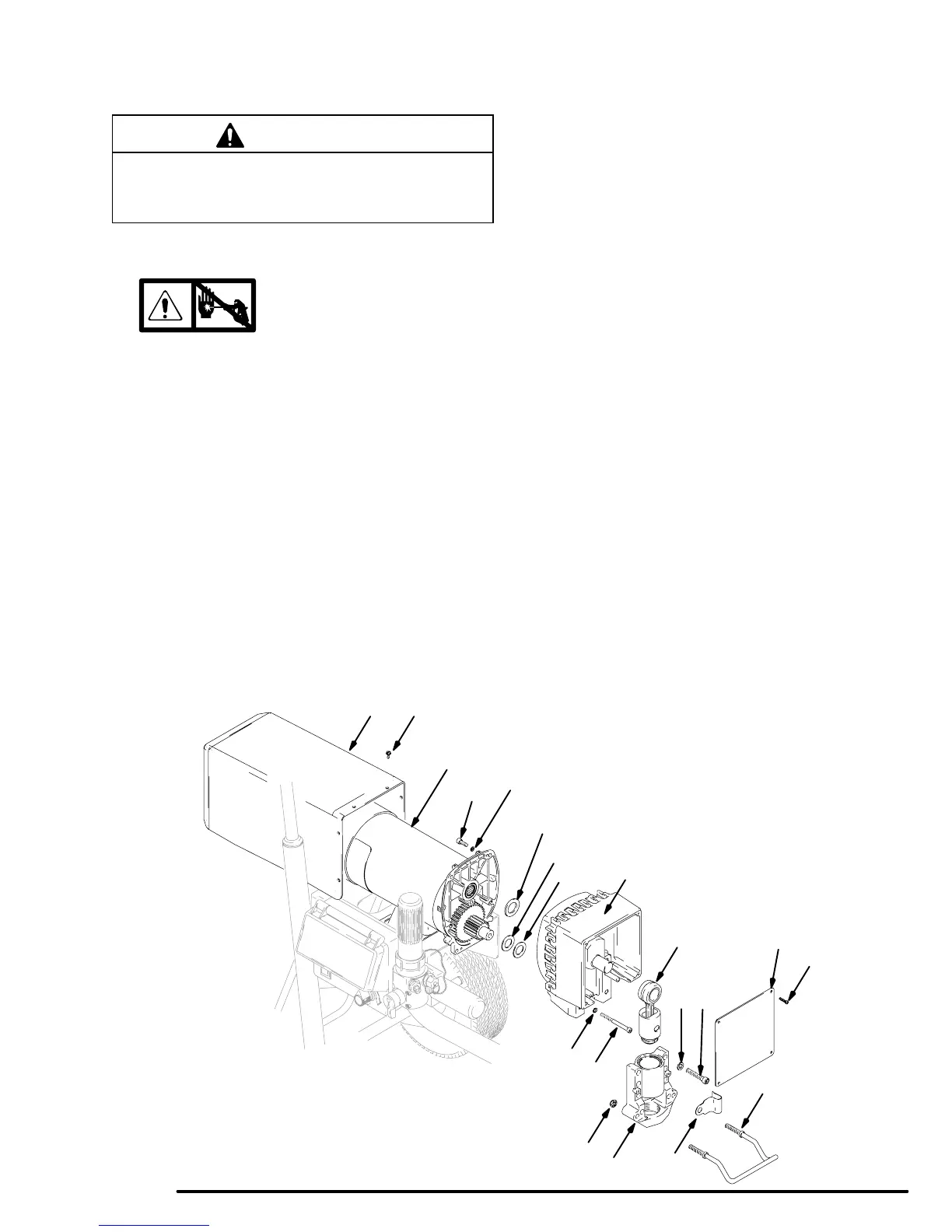

Fig. 14
ti0948A
78
76
124
10
90
54
101
20
15
129
19
123
15
33
126
75
39
37
28
795/1095
