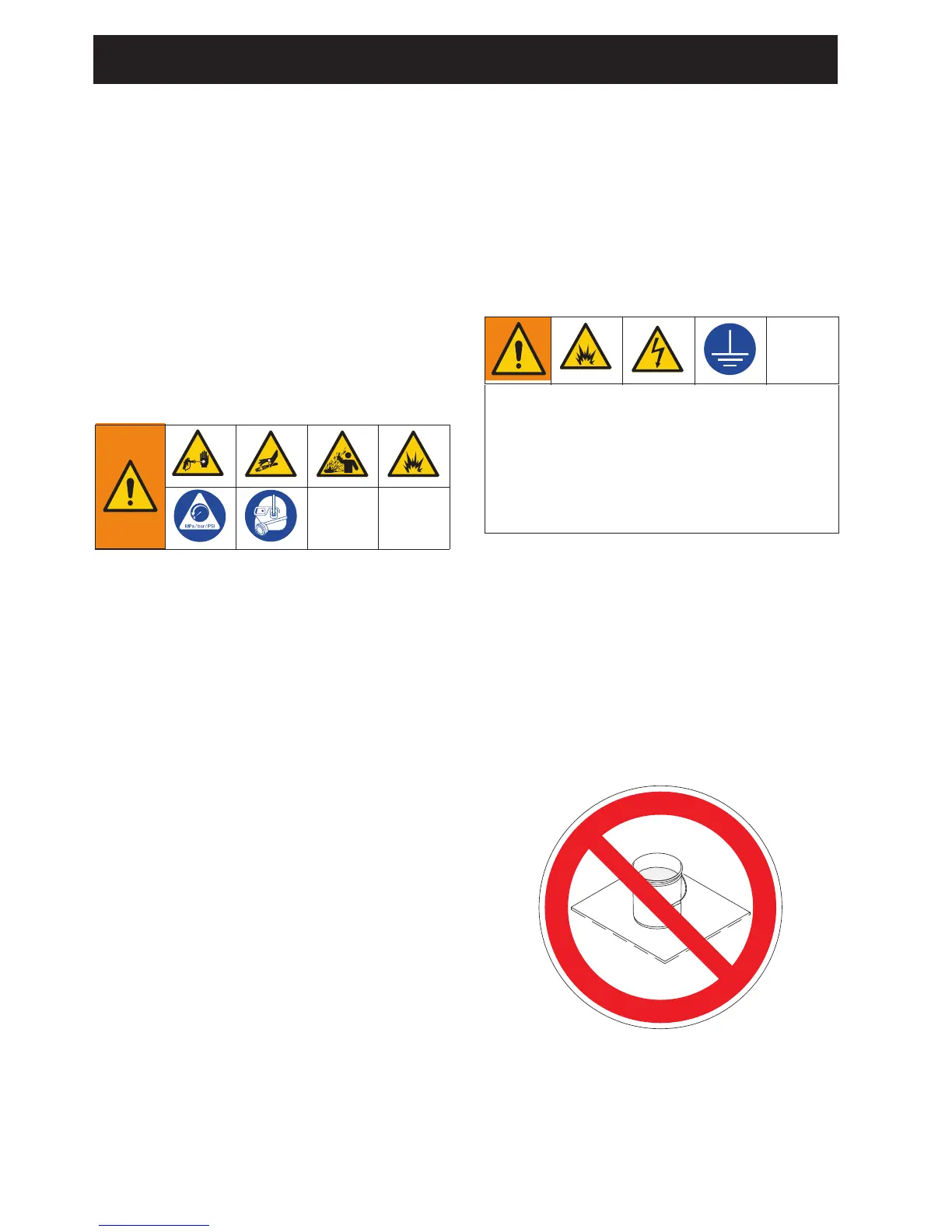

Page #26 background imageLoading...
Page #26 background image
Reference
26 3A3208B
Lacquer Conversion Kit
To spray lacquers with the ProX17 or
ProX19, you must purchase a lacquer
conversion kit, and follow Static Grounding
Instructions (Oil-Based materials), page
26, when using oil-based materials. See
ProX17 and ProX19 parts list, page 41 or 45.
The X5 and X7 must not be used with
lacquers.
Cleaning Fluid
Compatibility
Oil- or Water-Based Materials
When spraying water-based materi-
als, flush the system thoroughly with
water.
When spraying oil-based materials,
flush the system thoroughly with min-
eral spirits or compatible, oil-based
flushing solvent.
To spray water-based materials after
spraying oil-based materials, flush the
system thoroughly with water first. The
water flowing out of drain tube should
be clear and solvent-free before you
begin spraying the water-based mate-
rial.
To spray oil-based materials after
spraying water-based materials, flush
the system thoroughly with mineral spir-
its or a compatible oil-based flushing
solvent first. The solvent flowing out of
the drain tube should not contain any
water. When flushing with solvents
always follow Static Grounding
Instructions (Oil-Based materials),
page 26.
To avoid fluid splashing back on your
skin or into your eyes, always aim gun
at inside wall of pail.
Static Grounding
Instructions (Oil-Based
materials)
Always use a metal pail for oil-based
materials requiring flushing with compatible
oil-based flushing solvents when sprayer is
flushed or pressure is relieved.
Follow local code. Use only conductive metal
pails, placed on a grounded surface such as
concrete.
Do not place pail on a non-conductive surface
such as paper or cardboard which interrupts
grounding continuity.
The equipment must be grounded to
reduce the risk of static sparking and
electric shock. An electric or static spark
can cause fumes to ignite or explode. An
improper ground can cause electric shock.
A good ground provides an escape wire for
the electric current.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Graco X5 and is the answer not in the manual?

Graco X5 Specifications

General IconGeneral
TypeAirless Paint Sprayer
Maximum Hose Length75 ft
Maximum Pressure3000 PSI
Weight15 lbs
Flow Rate0.27 GPM
Recommended Annual Use125 gallons per year
Hose Length25 ft
Power SourceElectric
Voltage120 V
Tip Size0.015 in
Maximum Tip Size0.015 inch
