Installation
8 3A7469D

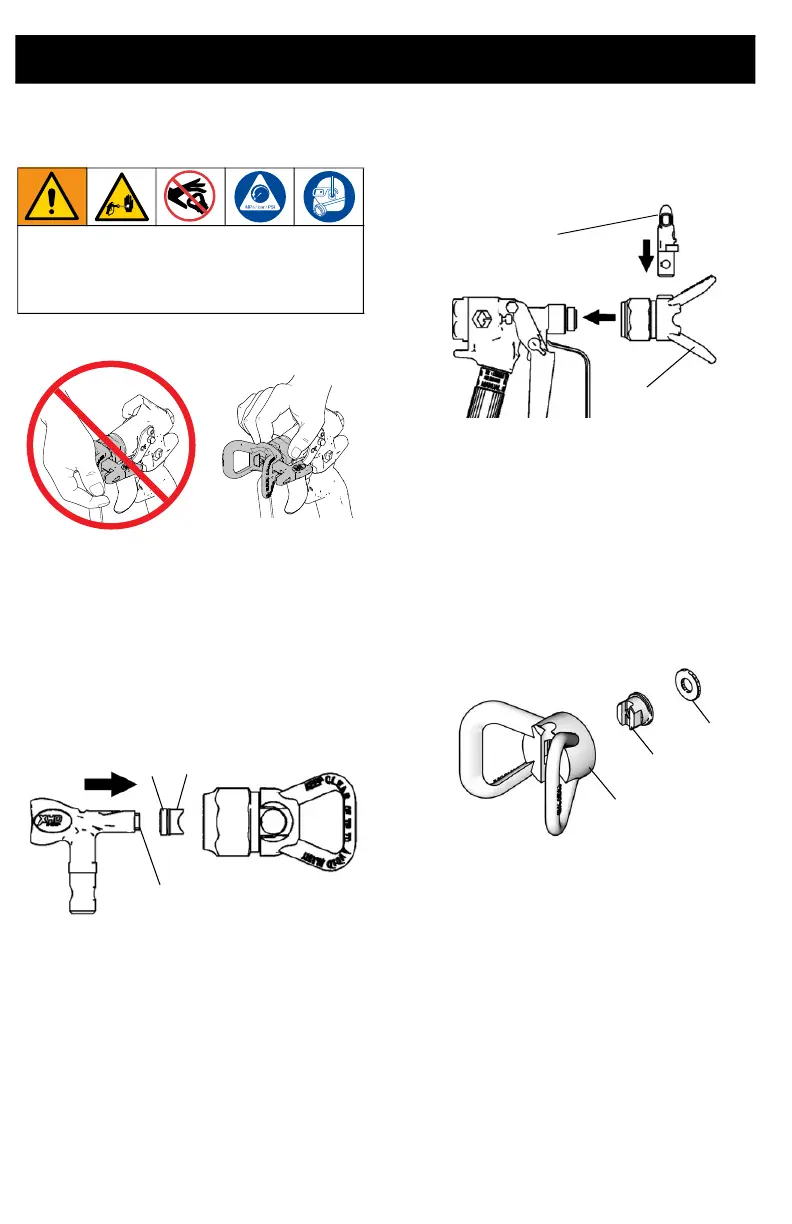

Spray Tip Installation
RAC Tip
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Snap gasket (20b) on fluid seal (20a).
Use tool (A) to insert gasket and seal into
housing, seal first. Tip the tool to remove
it when seal is in place.
4. Install tip cylinder (20c) as shown. Turn
90° counterclockwise to spray position,
so the arrow faces forward. Install the
RAC tip guard (19) onto spray gun.
Flat Tip
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Insert tip (32) and gasket (30) into back
of tip guard (31).
4. Install the tip guard (31) over the end of
the gun.
To avoid serious injury from skin injection,
do not put your hand in front of the spray
tip when installing or removing the spray
tip and tip guard.
NO
YES
A
20b
20a
20c
19
31
32
30
