Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
3.2 Top cover – removal and installation
Page 1 of 1
Removal and installation
1 Remove the upper seat part at the seat
suspension and put it aside (see
Chapter 3.1).
Notes:
● Cable ties at cable harness for upper
seat part need not be removed and the
electrical connections need not be
disconnected.
● Do not overstretch the cable harness
for the upper seat part when putting it
aside.

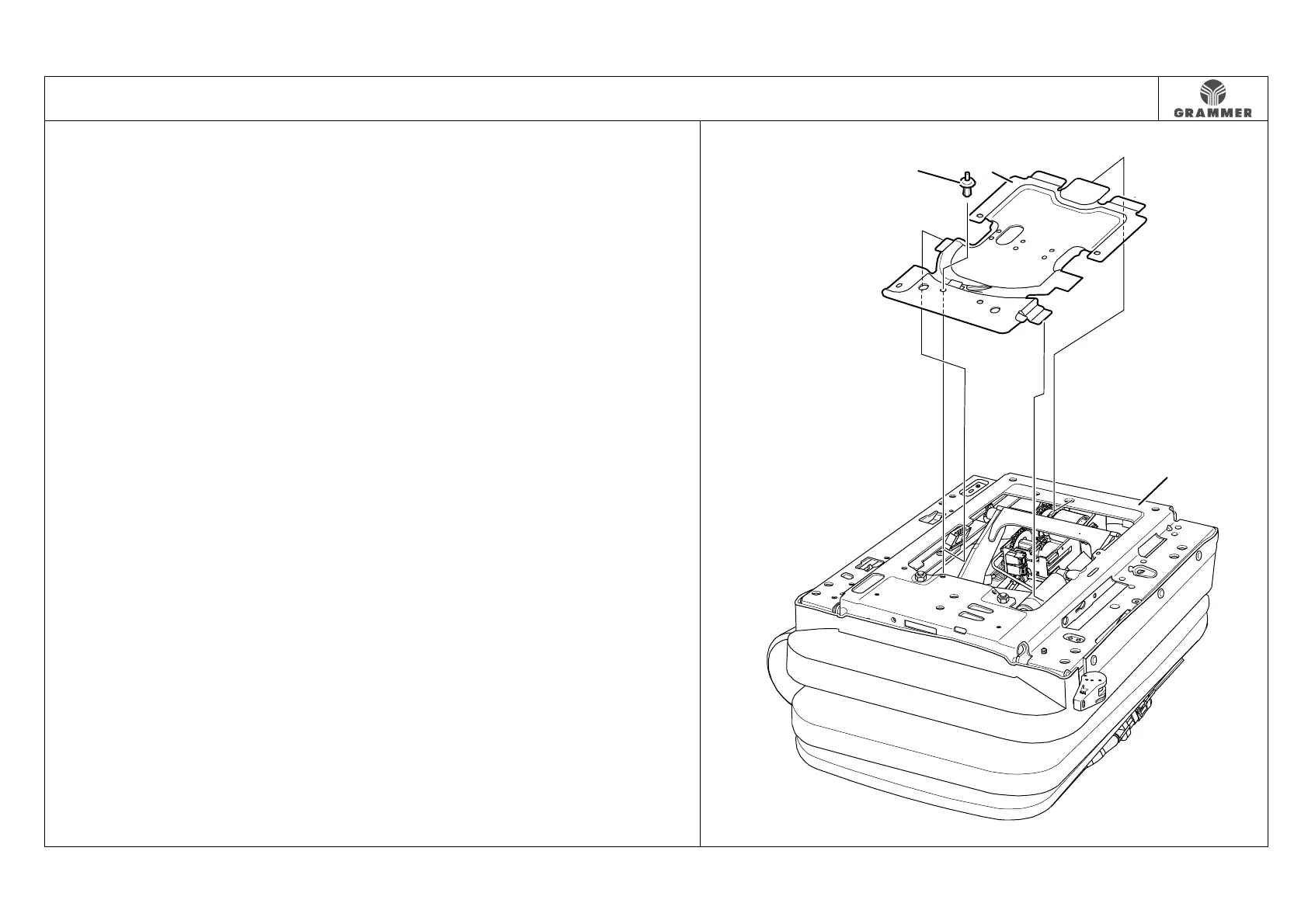

2 Knock out the expanding rivet (1).
Installation note:
Replace the expanding rivet (1).
3 Push the three cover lugs at the top
cover (2) out of the seat suspension (3)
and remove the top cover (2).
4 Re-install the components in the
reverse order of their removal.
