Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338

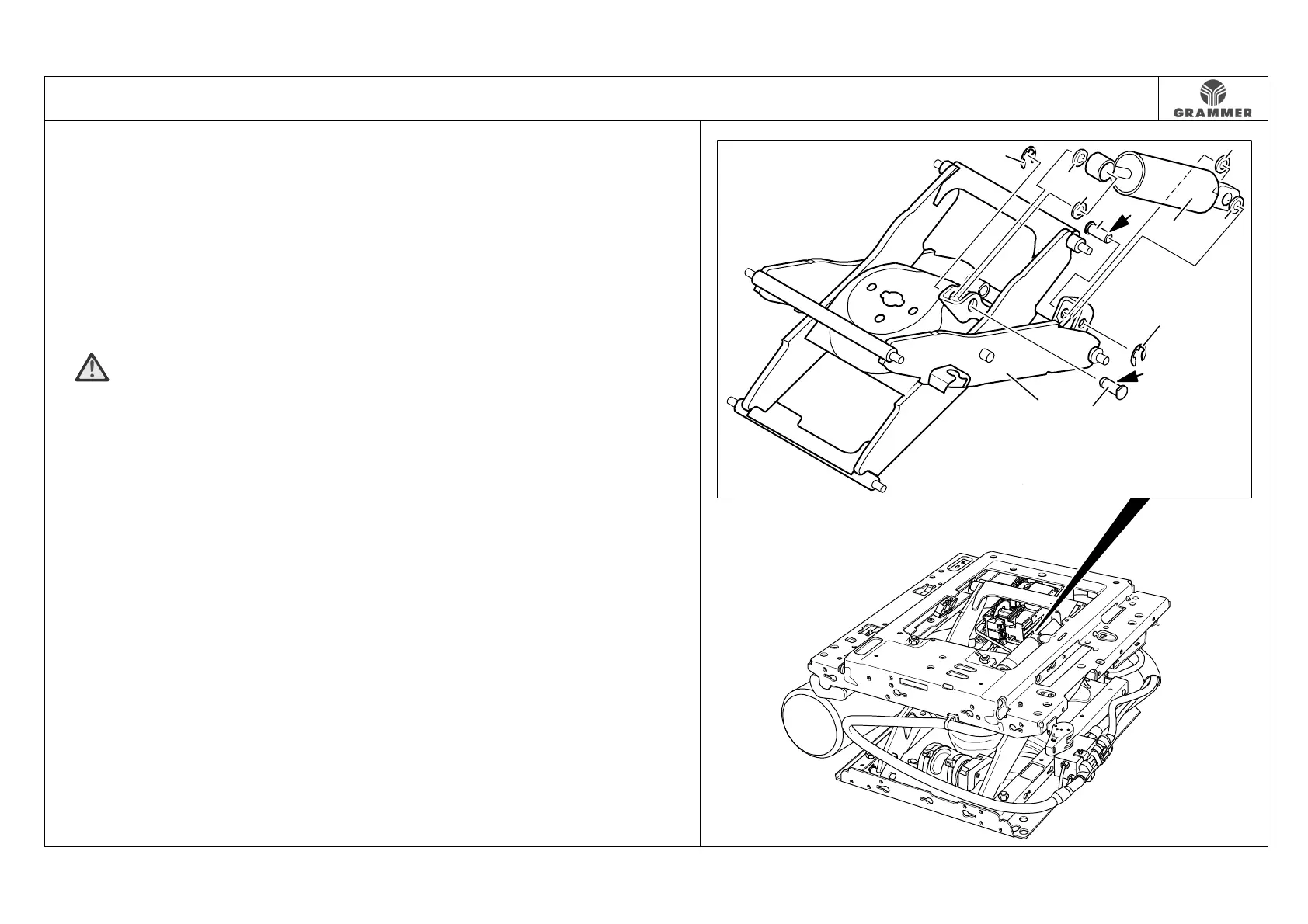

3.4 Vertical shock absorber – removal and installation
Page 1 of 1
Removal and installation
1 Remove the upper seat part at the seat
suspension (see Chapter 3.1).
2 Remove the top cover (see Chapter
3.2).
3 Remove the bellows at the upper
suspension part (see Chapter 3.3) and
press it down.
4 WARNING Risk of crushing!
Move the seat suspension to high
position and secure it at the back
between the swinging structure and the
lower suspension part by means of
suitable spacers.
5 Loosen the lock washer (5) at the stud
(4).
6 Pull out the bolt (4) from the swinging
structure (1) and the vertical shock
absorber (2) and remove two washers
(7).
Installation note:
Apply acid-free multi-purpose lubricant
to the entire surface (F) of the stud (4).
7 Loosen the lock washer (3) at the stud
(6).
8 Pull out the bolt (6) from the swinging
structure (1) and the vertical shock
absorber (2) and remove two washers
(7).
Installation note:
Apply acid-free multi-purpose lubricant
to the entire surface (F) of the stud (6).
9 Remove the vertical shock absorber (2)
in upward direction.
Installation note:
When re-installing the vertical shock
absorber (2), make sure the labelling is
on top.
10 Re-install the components in the
reverse order of their removal.
1
6
5
7
7
7
2
7
4
3
F
F
