Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
3.12 Cable harness for vehicle connection – removal and installation
Page 1 of 1
Removal and installation
1 Remove the seat (see Chapter 3.1).
2 Remove the bellows at the upper
suspension part (see Chapter 3.3) and
press it down.

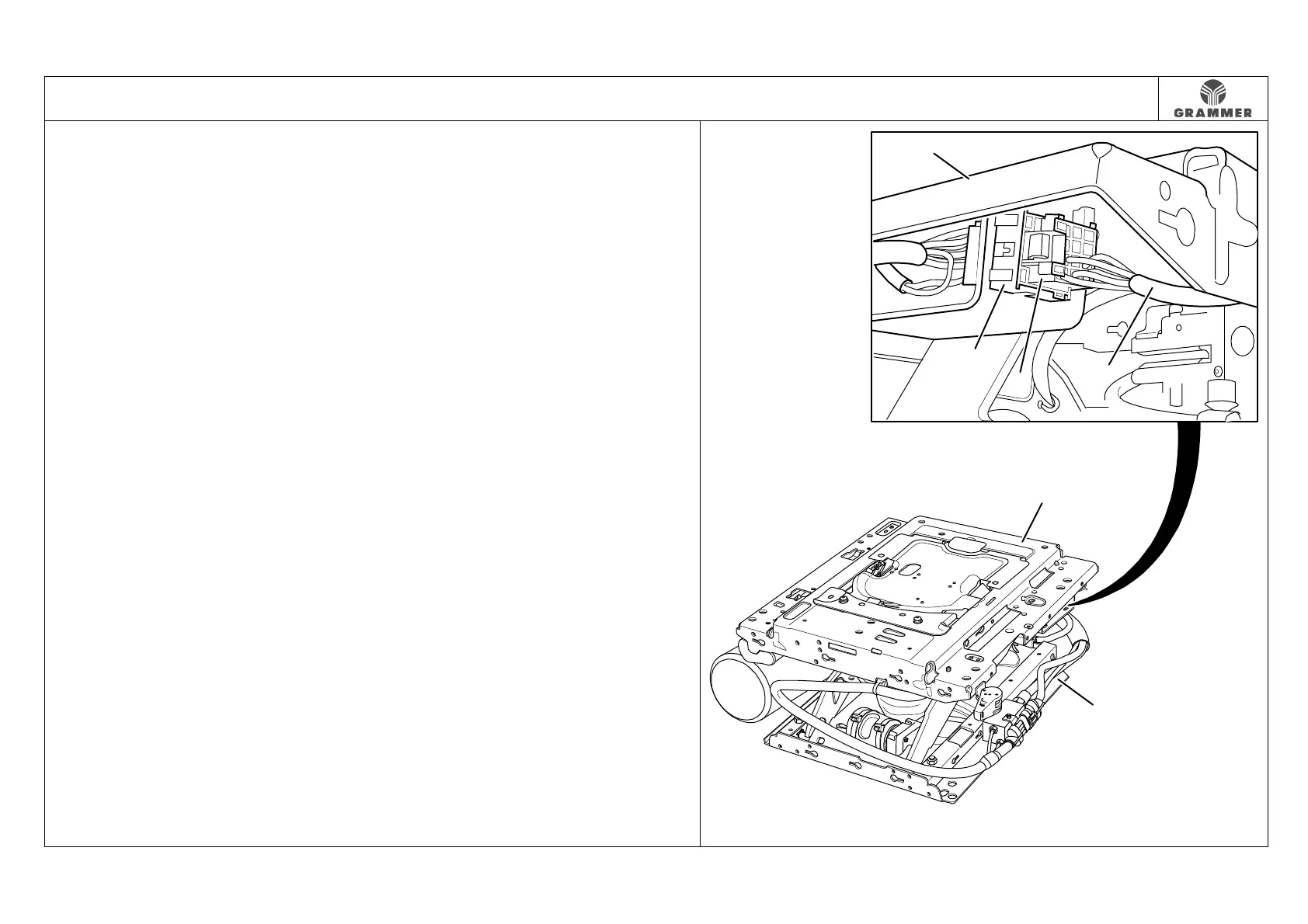

3 Disconnect the electrical connection
between the plug of the cable harness
for the seat suspension (5) and the
socket of the cable harness for vehicle
connection (4).
4 Mark the points where the cable
harness of the vehicle connection (1) is
fastened on the upper part of the
suspension (3) with corrugated pipe
support and with cable ties with bracket
at the lower part of the suspension (2)
and remove the cable harness of the
vehicle connection (1).
Installation note:
The cable harness for vehicle
connection (1) is guided out of the seat
suspension between the bellows and
the lower suspension part (2) at the
rear on the right.
5 Re-install the components in the
reverse order of their removal.
3
1
5
4
3
2
2868
