Grand Design IMAGINE XLS 2023 - Water Heater Bypass Valves

22
Plumbing Systems
Normal Use Position: Bypass Position:
TURN BOTH bypass valve handles TURN BOTH bypass valve handles
towards the water heatertowards the water heater..
TURN BOTH bypass valve handles TURN BOTH bypass valve handles
towards the hot & cold water linestowards the hot & cold water lines..
* The water heater bypass valves are found * The water heater bypass valves are found
on the back side of the water heater. on the back side of the water heater.

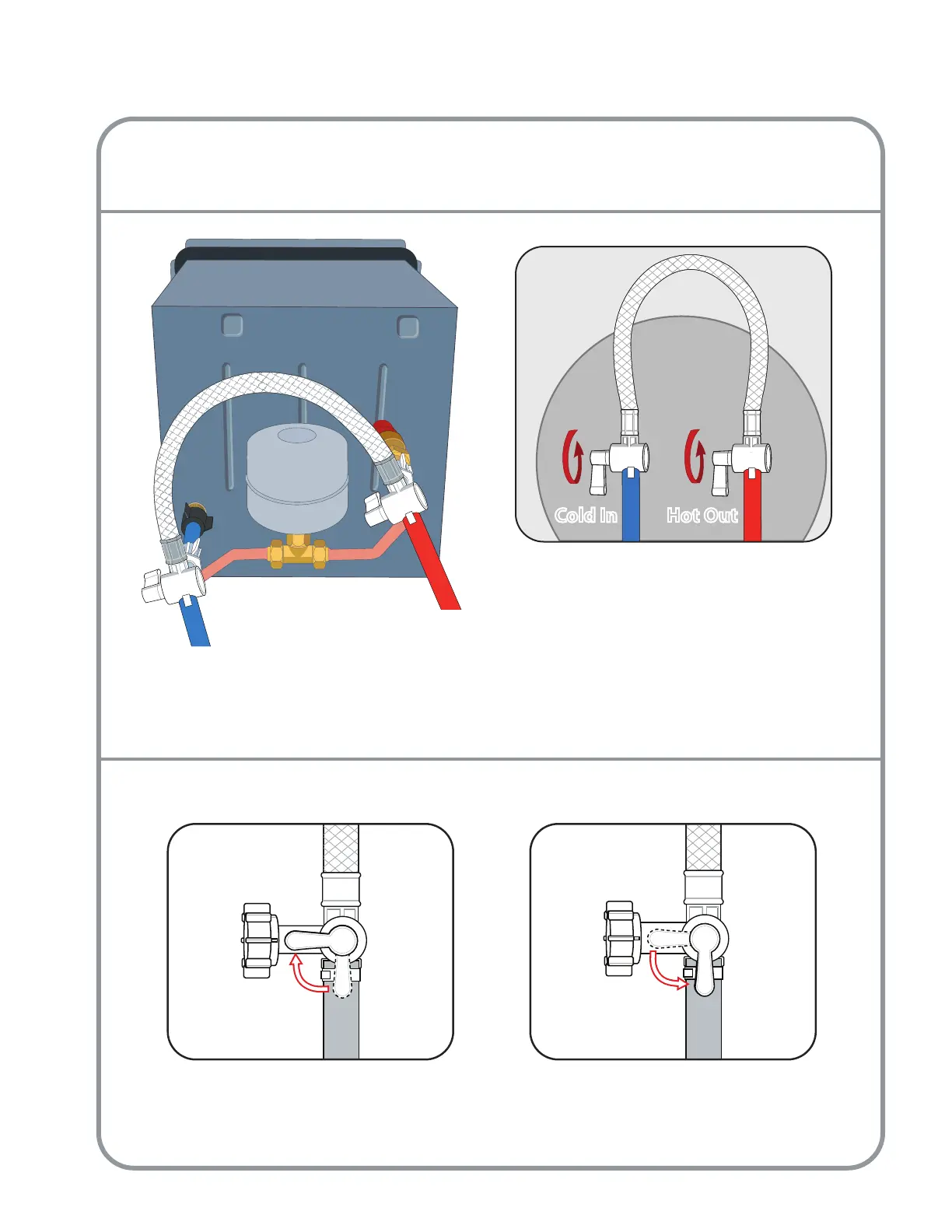

Water Heater Bypass Valves
6-Gallon Water Heater
Bypass Valves.
Bypass Valve Handles are
Shown in
BypassBypass Position.
Hot Out
Hot Out
Cold In
Cold In
KEEP the Furrion
Tankless Water Heater
Bypass Valves in the
Normal Position.
Bypass Valve Handles are
Shown in Normal UseNormal Use Position.
