Electrical Systems

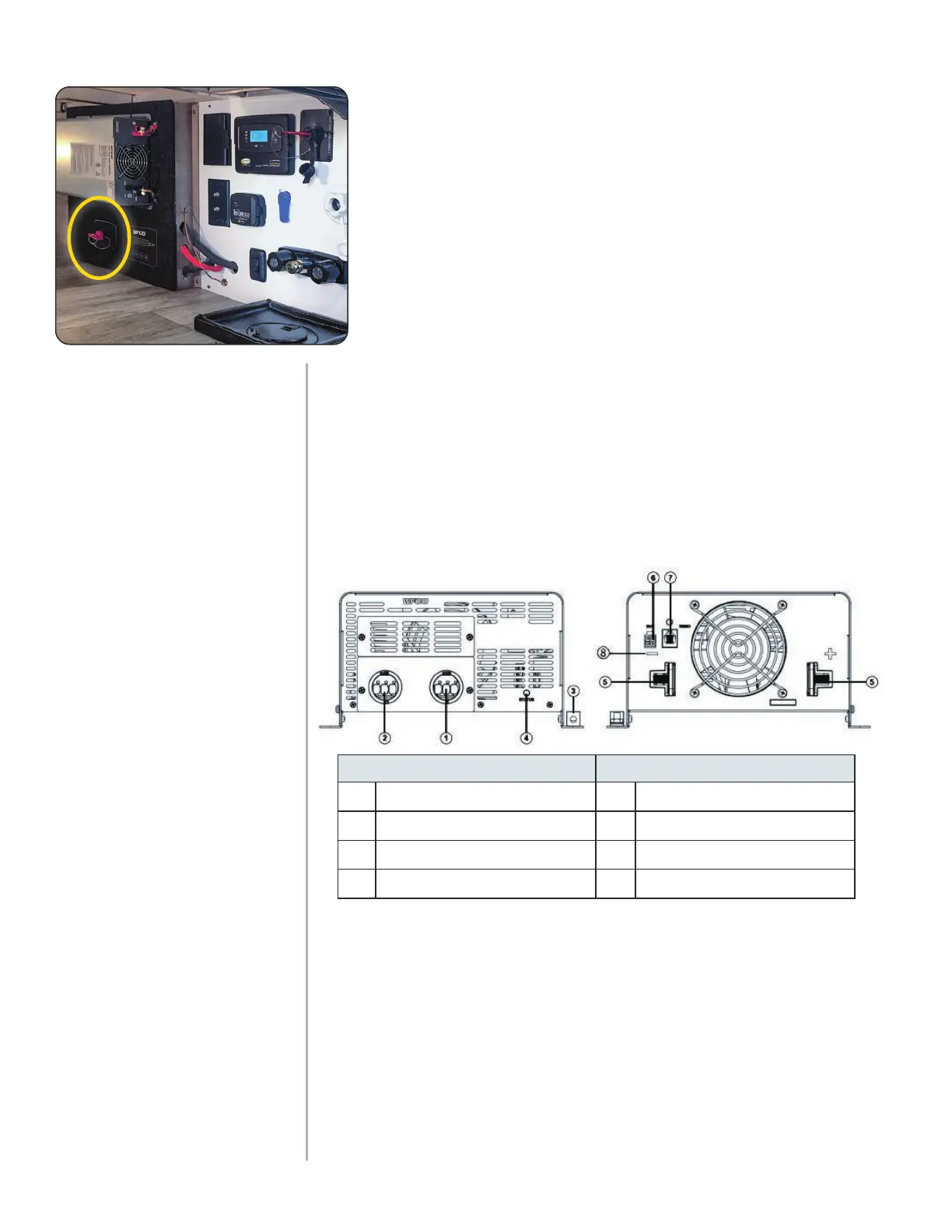

Inverter - 2000 Watts (If So Equipped)
Your Imagine Travel Trailer, if so equipped, has a 2000 watt
inverter mounted next to the Universal Docking Station,
See photo, left.
• Please download and read the entire manufacturer’s
owner’s manual for detailed operating instructions and
safety warnings BEFORE using the inverter.
• The WF-5220 manual is found on the WFCO website:
https://wfcoelectronics.com/product-downloads/
Front Panel Back Panel
1
AC Output
5
DC Input +/-
2
AC Input
6
RVC
3
Cassis Ground
7
Remote Port
4
Status LED
8
Terminal Resistor
Power ON / OFF / Remote (Main) Switch
• The LCD remote control panel is found inside the forward
door-side pass-thru storage compartment.
• The input that comes from the (AC) Breaker Panel can’t be
controlled by the switch. Please disconnect Shore Power
before you operate the main inverter unit in order to avoid
an electric shock.
2000 Watt Inverter &
2nd Battery Disconnect
When properly connected to the RV battery (or batteries) and
turned ON, the inverter transforms the direct current (DC) from
the batteries into a pure sine wave alternating current (AC).
This AC is similar to the voltage provided by your utility and is
used to power any electrical appliances (i.e., AC loads) connected
to the inverter’s output.
Switch the 2nd Battery Disconnect to the OFF position
when the inverter is NOT needed. See photo, upper left.
