Electrical Systems
Remember that the 2000 watt inverter can ONLY run
a maximum of approximately 16.4 amps.
See page 87 in your Owners Manual,
Approximate Electrical Load Ratings.
1

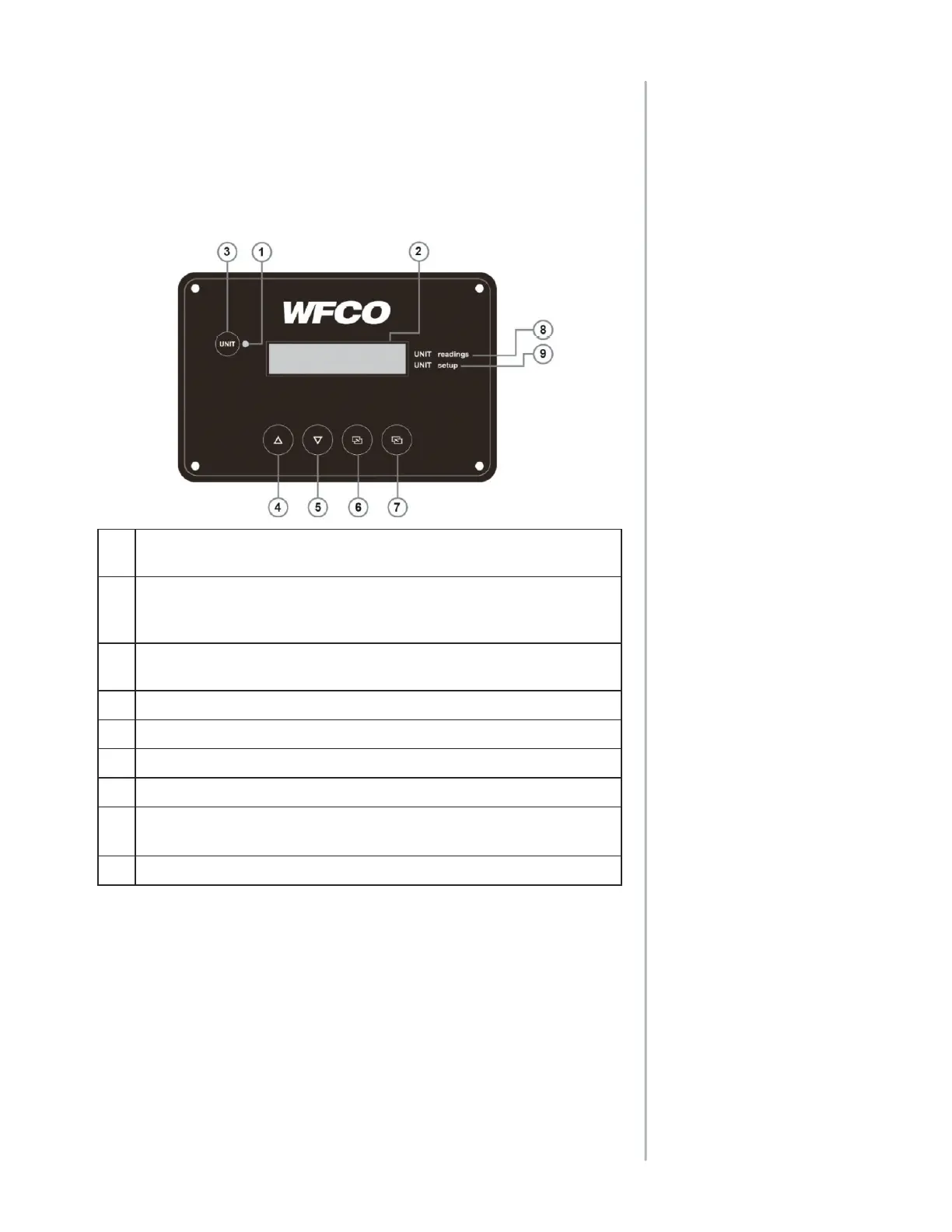

LED indicators - There is an LED indicator on the front panel
that lights solid to indicate the inverter is ON/OFF
2
LED Display - The display is used for setting up the system
operation, as well as viewing current operating status and
fault conditions
3
Unit ON/OFF Button - To Turn ON, PRESS for 0.5 seconds,
To Turn OFF, PRESS for 3 seconds.
4
UP Button - Moves up in the menu tree.
5
Down Button - Moves down in the menu tree.
6
Enter Button - Go to the next page.
7
Back Button - Go to the previous page.
8
Unit Readings - LCD screen displays • Temperature • Temperature
• DC Voltage • Grid Input • Inverter Out • Fault Condition• DC Voltage • Grid Input • Inverter Out • Fault Condition
9
Unit Setup - Sets inverter parameters
For battery recommendations and any further questions,
please contact your dealer or Grand Design RV Customer
Service.
