23
Winterization Valve
Access the Water Pump (Location Varies by Floorplan) - See page 9, #5.
Winterizing:
1. TURN the Winterization Valve to the OPEN position (toward Suction Line).
2. LOCATE the Suction Line & REMOVE the cap.
PLACE Suction Line into your container of RV antifreeze.
3. TURN ON the Water Pump.
4. OPEN all faucet fixtures individually until RV antifreeze is present.
(Kitchen, Lavatory, Shower, Stool, & Outside Faucet/Spray Port)
Also see page 9, Winterizing the Furrion Tankless Water Heater & Plumbing System.
OR
page 17 , Winterizing the 6-Gallon Water Heater & Plumbing System.
Normal / Sanitizing:
1. TURN the Winterization Valve
to the CLOSED position.
2. POUR the Chlorine / Water mixture into
the Fresh Water Gravity Fill Inlet.
3. TURN ON the Water Pump.
4. OPEN all faucet fixtures to circulate
Chlorine / Water mixture through all
waterlines.
Also see page 20, Sanitizing the Fresh Water System.

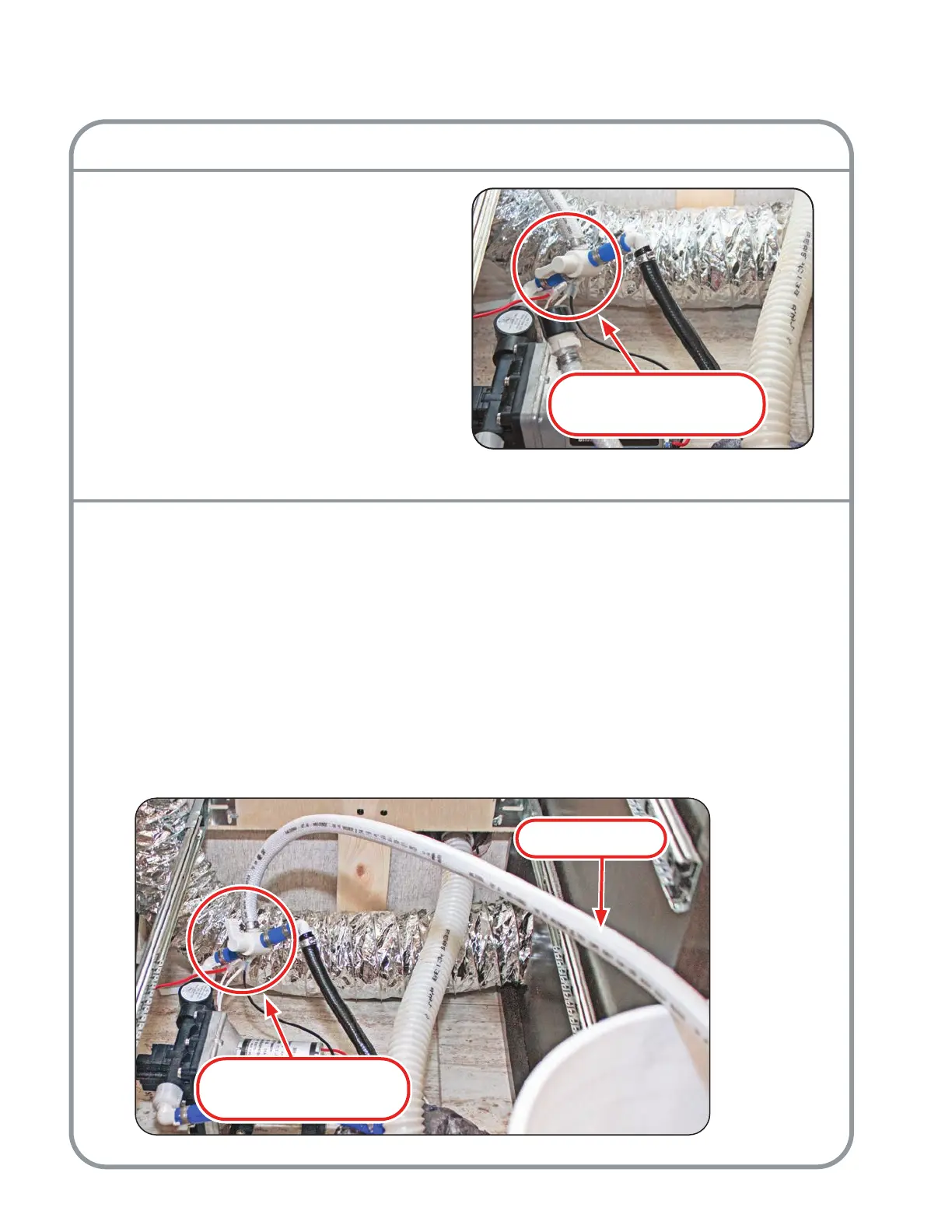

Suction Line
Winterization Valve
Winterization Valve
CLOSED Position
OPEN Position
