Grandstream Networks GRP2612W

To Next Page

To Previous Page

Page | 71

GRP261X /GRP2624/GRP2634 User Guide

Version 1.0.5.48

2. Browse the codes using the UP/Down arrow keys

3. Select an option by pressing the MENU key; Or,

Click “Dial” Softkey.

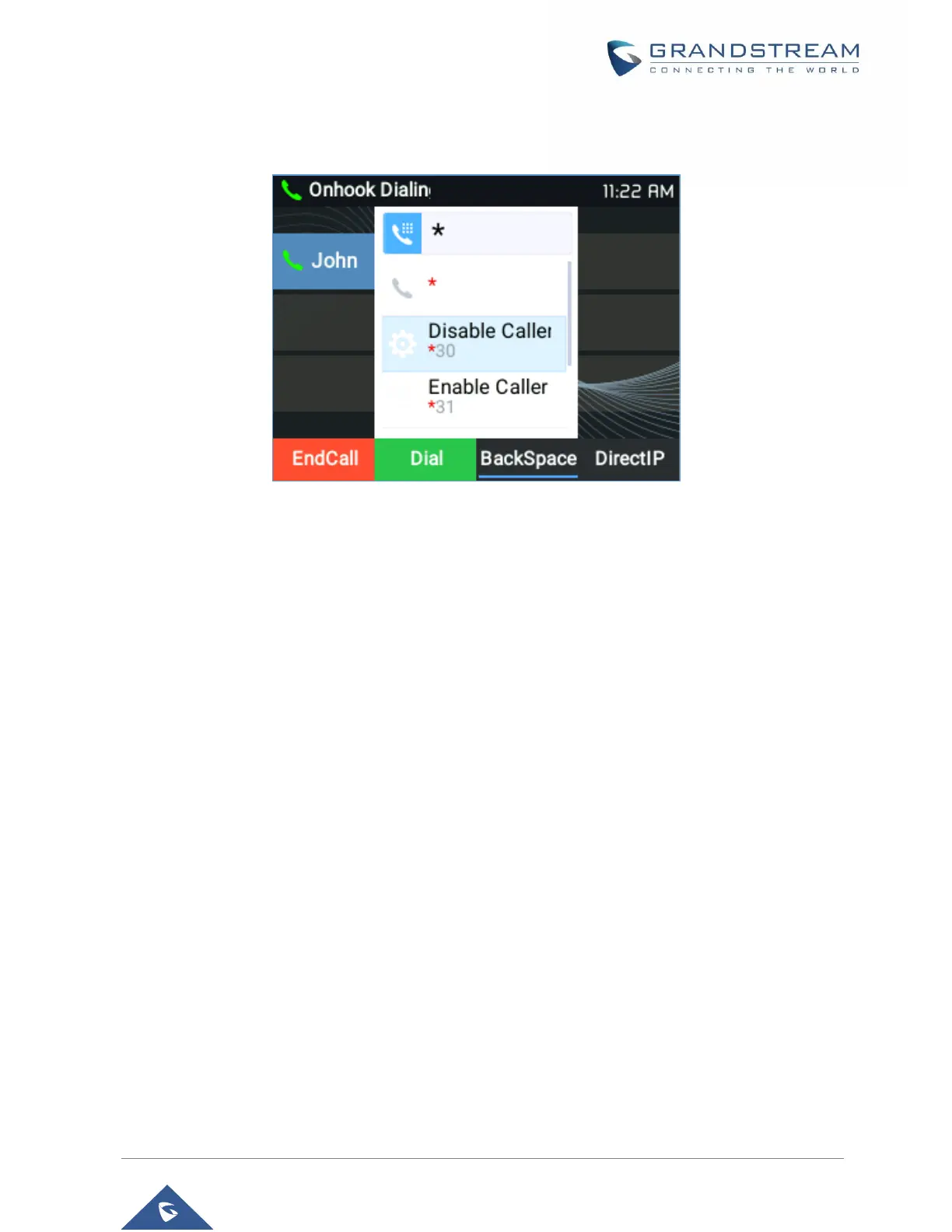

Figure 46 : Feature Codes List

Main Page
