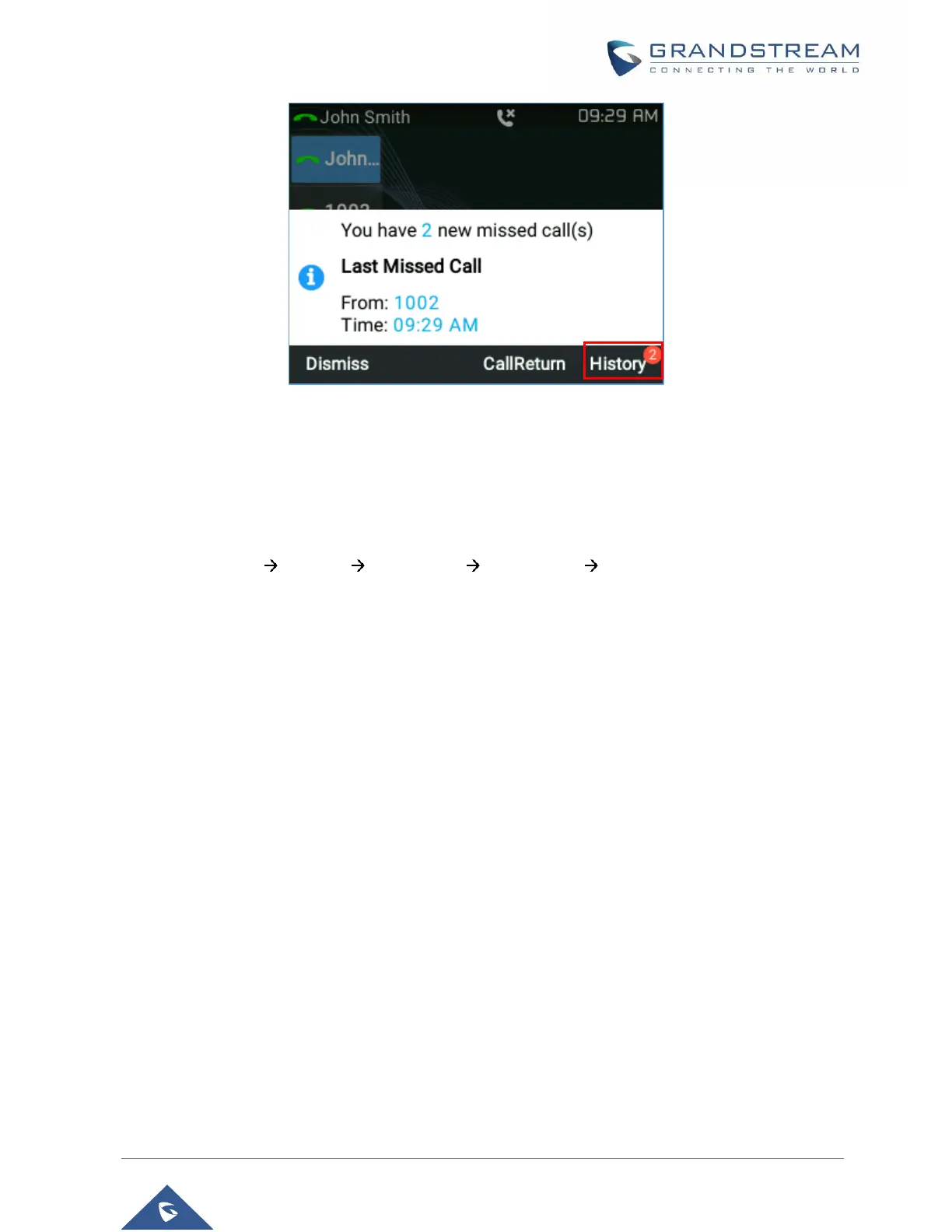

Figure 73: Missed Calls

Users have the option to return the call immediately by clicking the “CallReturn” Softkey.

Note:

Users can set the phone to turn off LCD backlight while having a missed call. This option can be found

under device web UI Settings Preferences LCD Display disable missed call backlight. If

users want to have missed call notification, select yes, bug flash MWI LED.
