1. Click on “System Configuration” in the left hand column. This will
automatically load the Network Settings configuration page (See Figure 4-1).
On this page you can configure the LAN and WAN settings such toggling
between using DHCP or using a static IP address. You may choose to simply
use the default setting values, or customize them if necessary.
2. The default LAN Base IP is 192.168.10.1/255.255.255.0. If you wish to use a
different internal IP addressing scheme, please change it before running the
express setup as the GXE will auto-provision the LAN Base IP into the phones
for them to communicate with the GXE. Reboot the GXE before proceeding to
the next step to make the LAN Base IP setting change take effect.
Warning: Do NOT change the LAN Base IP after auto-provisioning phones
after the express setup, this will break the connection between your
configured phones and the GXE.

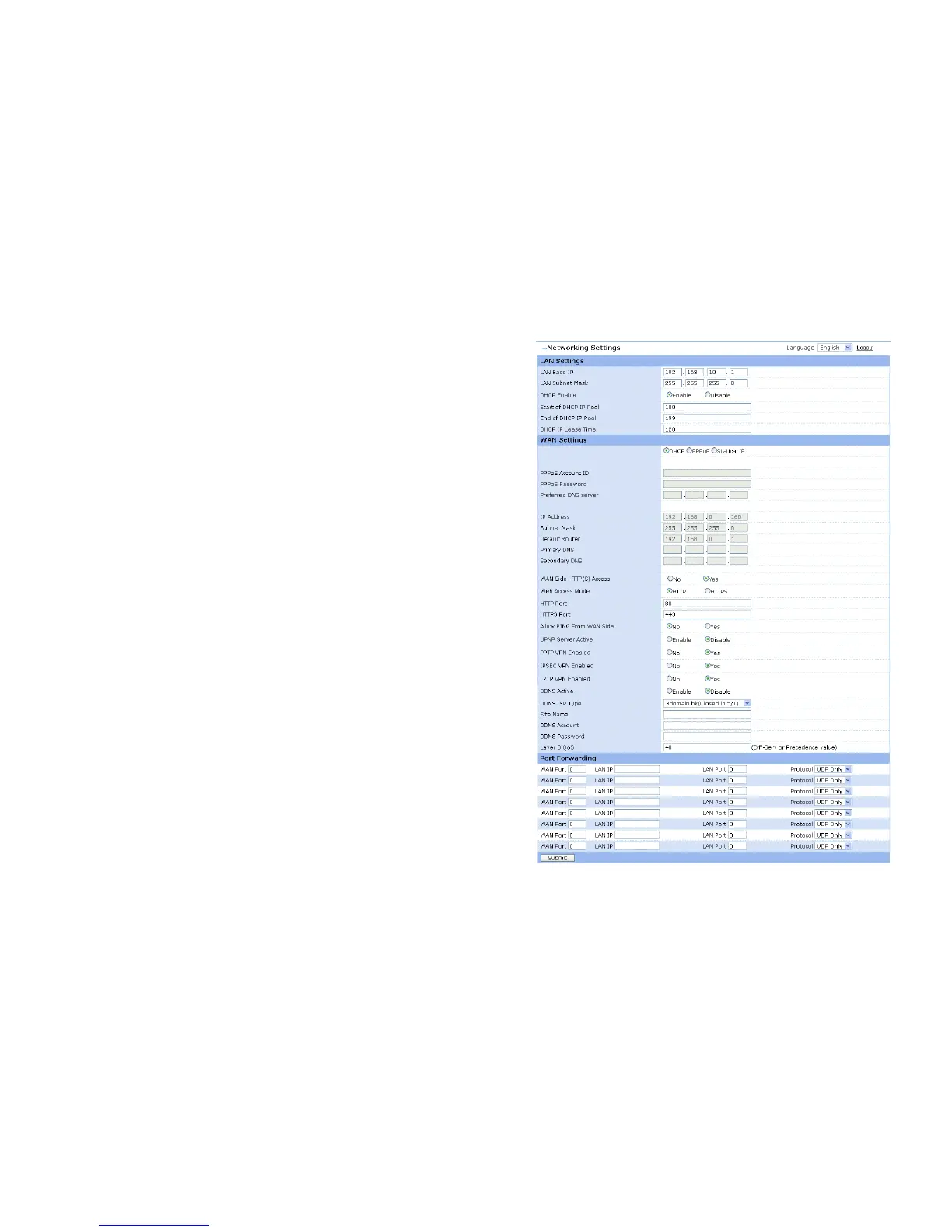

Figure 4-1
