1. Click on TRUNK/Phone Lines on the left menu bar to load the Internal PSTN
Trunk Line configuration page (See Figure 6-1).
2. Click on the button “Add” to add a new line call control (Figure 6-2).
3. Specify a name to this trunk and enter “1-8” in the Line field (if it’s a
GXE5028) or “1-4” (if it’s a GXE5024).
4. Set the Dial Prefix field to the prefix used for outgoing PSTN calls; for
example, “9” is commonly used (it’s not a required field, you can also
configure the outbound calls under the section “Call routing”).
5. For the Call routing profile, you can select the profile used for the inbound
calls. The default profile used is “General Inbound”.
6. Once you’re done, Click on “Submit” to save the configuration.

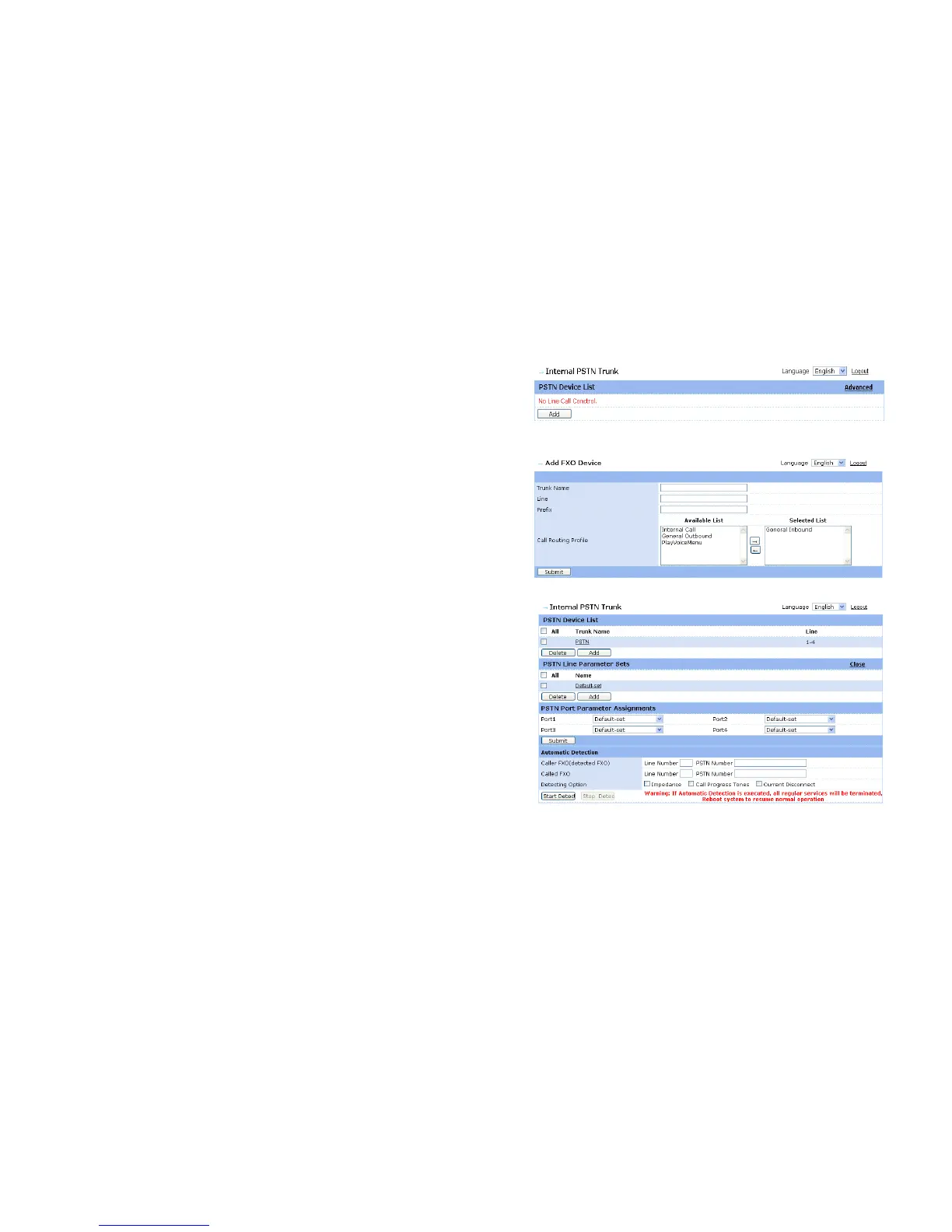

Figure 6-1
Figure 6-2
7. Click on “advanced” to set the PSTN lines settings and assign them to the
FXO ports. You can also use this page to run the PSTN Auto Detection
Module and find automatically the PSTN settings to use.
Figure 6-3
