GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 18 of 42
DC 5V Power Port
5V/600mA power port to connect to power adaptor
HEADSET Port
To connect to RJ9 or EHS headphones
HANDSET Port
To connect handset RJ9
Cord Slot
To place and fix the phone cords
STAND INSTALLATION

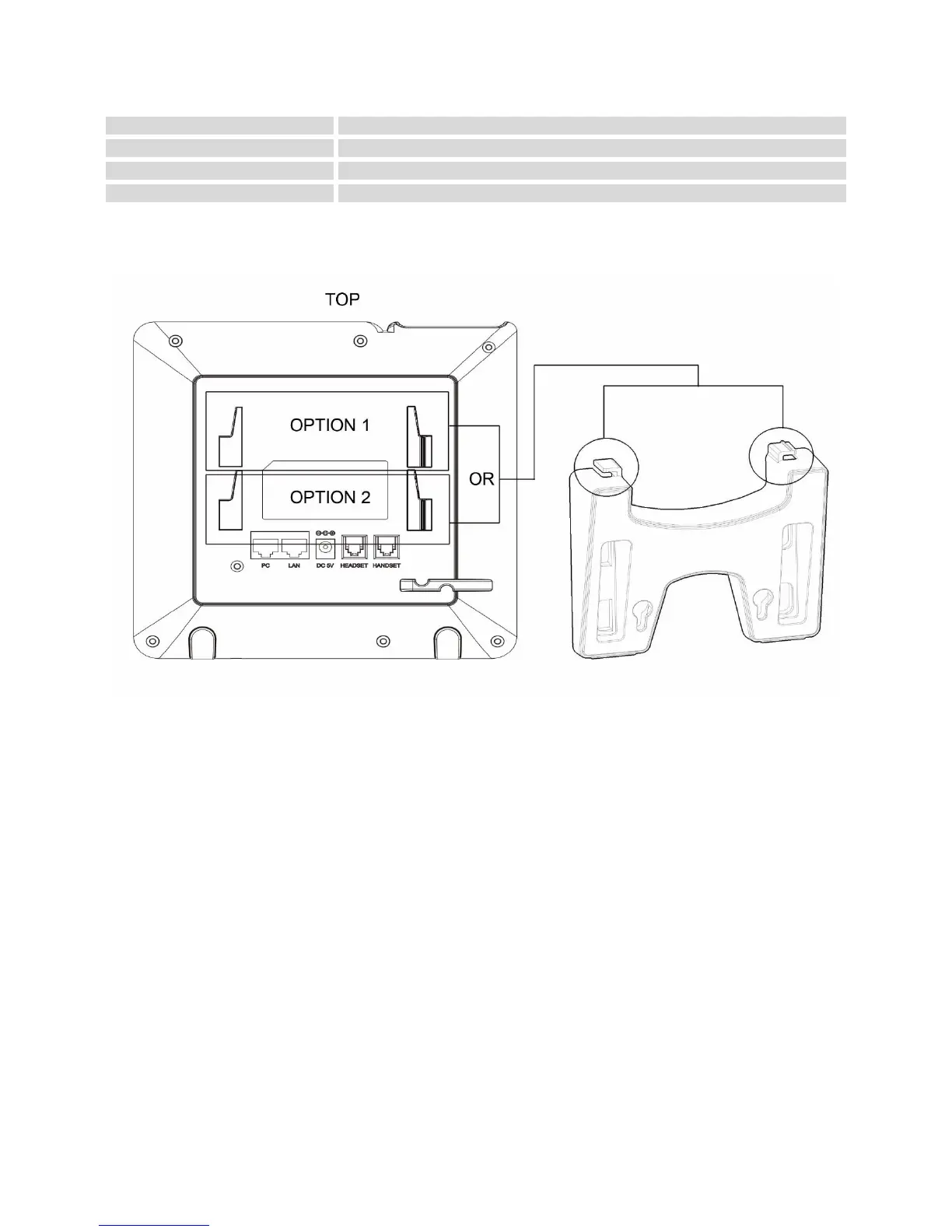

Figure 2: GXP16xx Stand Installation
1. Insert the hooks on the top of the stand into the slots, you have option to use either upper slots OR lower
slots.
2. After both hooks are in the slots, firmly slide the entire stand upward to lock them in place.
