FIRMWARE VERSION 1.0.6.11 GXP2120/GXP2110/GXP2100/GXP14xx USER MANUAL Page 18 of 81
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded web server (Web GUI) by entering the IP
address in web browser, you can further configure the phone.
Please see below the pin-out information for GXP2120/GXP2110/GXP2100/14xx.

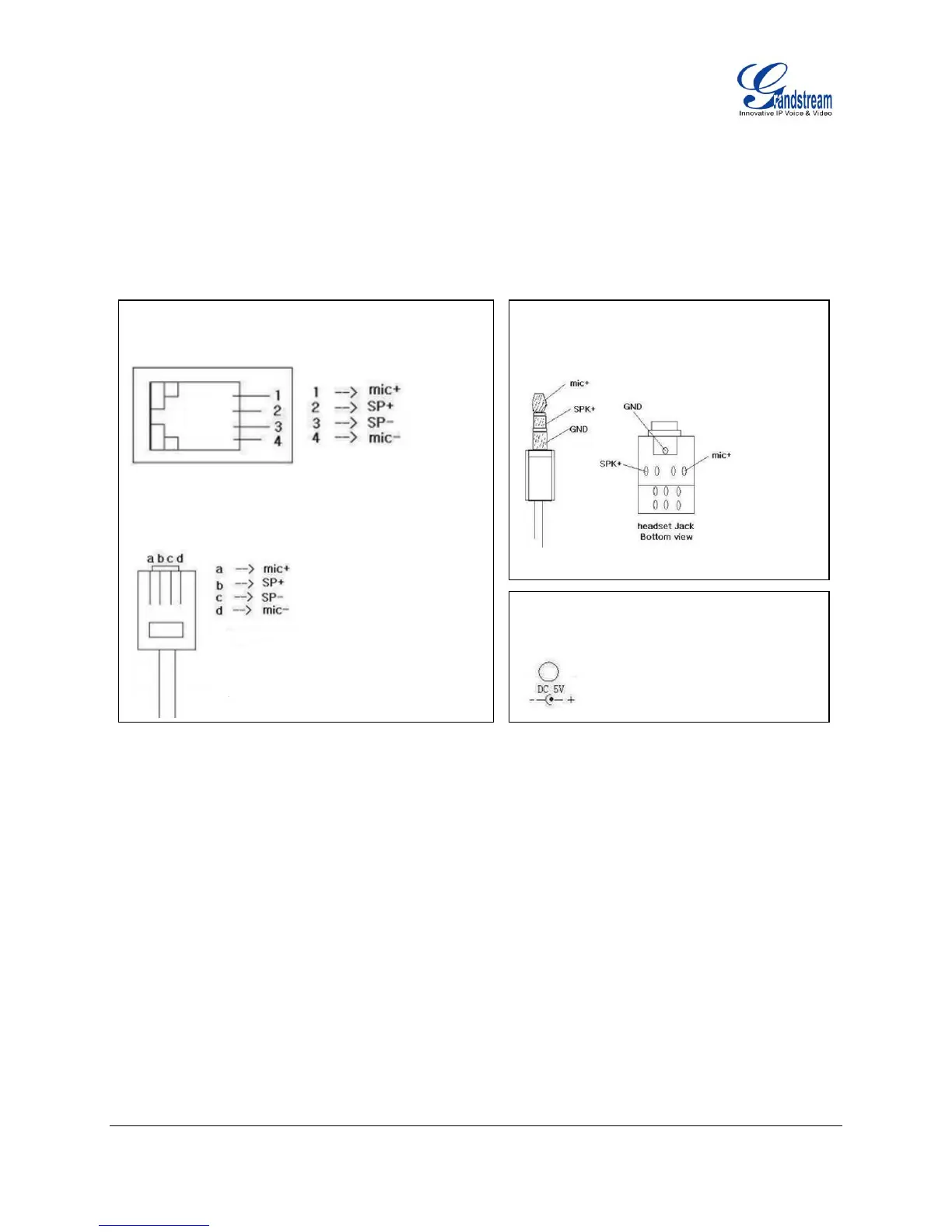

Figure 1: GXP2120/GXP2110/GXP2100/GXP14xx Pin-out
GXP2120/GXP2110 EXTENSION MODULE
GXP2120/2110 supports two EXT boards, providing up to 112 additional programmable extensions. Each
GXP EXT board has 56 multi-purpose keys, dual color LEDs (red/green) and support BLF (Busy Lamp
Field) and Presence.
GXP2120/2110 EXT board package contains:
1 GXP EXT board
2 connection cables
To Next Page
