Grandstream Networks GXV3350 Quick Installation Guide

~ 5 ~ ~ 6 ~
Conguring the GXV3350 using Touch Screen:
1. Ensure your phone is properly powered up and connected to the Internet.
2. Tap on Settings → Status → Network status, to obtain the IP address of
your phone.
3. Type the phone’s IP address in your PC’s browser.
4. The default username for administrator are “admin”, but the password is
a random one which you can see it on the sticker on the back of GXV3350.
The default username and password for user are “user” and “123”.
5. In the web GUI → Account, select Account 1/2/3/.../16 page to configure
Account name, SIP Server, SIP User ID, Authenticate ID and Authenticate
Password to register the account on the GXV3350.
1. Make sure the phone is properly powered up and in idle screen.
2. Select Settings → Advanced → Account settings. Tap on one of the
Account to congure Account name, SIP Server, SIP User ID, SIP Auth ID,
SIP Auth Password to register account on the GXV3350. After successfully
registered, the dial screen will be shown.
3. Follow the Menu options to congure other settings on the phone. For
example, to congure static IP on the GXV3350, set up static IP address
via LCD Menu → Settings → Network → Ethernet Settings.
4. Please contact your ITSP (Internet Telephony Service Provider) for
additional settings that may be necessary to congure the phone.
PHONE CONFIGURATION:
Conguring the GXV3350 using Web Browser:

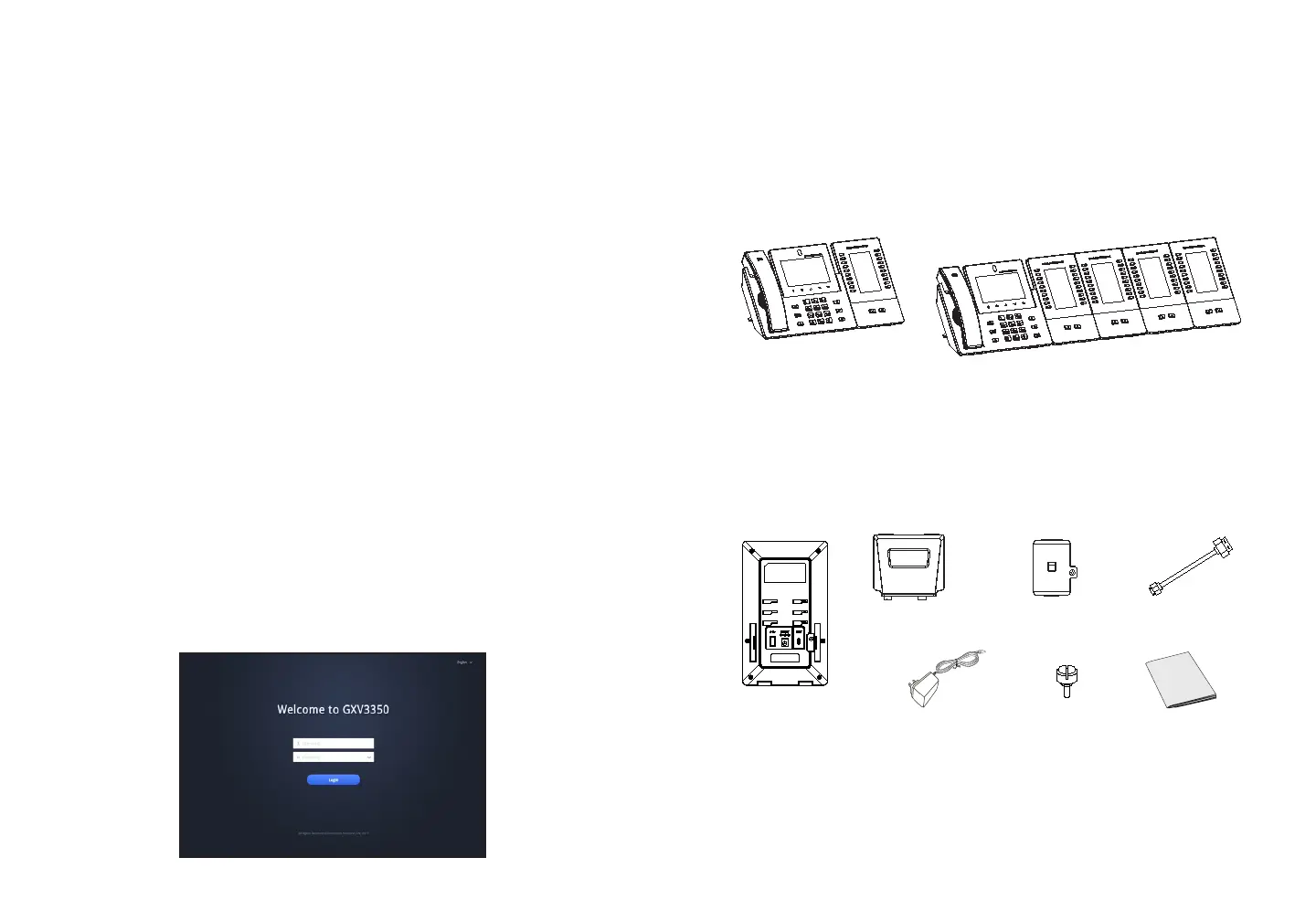

GBX20 PACKAGE CONTENTS:
1x GBX20
Extension Board
1x GBX20 Extension
Board Stand
1x Extension Board
Connector Plate
1x Screw
1x TypeA-MicroB
USB Cable
CONNECTING GBX20 EXTENSION MODULE TO
GXV3550 (GBX20 is sold seperatly):
The GXV3350 uses GBX20 as the extension module. The extension module
is an ideal solution for the busy enterprise environment looking to add the
ability to receive and dispatch calls e󰀩ciently. Each GBX20 extension module
has 20 programmable buttons, Left and Right buttons, supporting 40 Multiple
Purpose Keys to be congured. GXV3350 supports up to 4 extension
modules, adding 160 fully programmable phone extensions to the phone.
Installing the GBX20 to GXV3350:
1. On the back of the GBX20 and the GXV3350 there are slots for connector
plate. Attach the connector plate between the slots for the GBX20, Apply
the screw provided and securely tighten the connector plate to the
GBX20 (see gure in next page).
Notes:
• The GBX20 is an additional accessory for the GXV3350. Therefore, the
GBX20 (including extension module accessories for installation) is not
included in the GXV3350 package.
• In case two or more GBX20 extension modules are connected to the
GXV3350 , the second GBX20 needs to be powered on by a 12V/1A PSU.
GXV3350 with 1x GBX20
GXV3350 with 4x GBX20
1x 12V/1A Power Adapter
12V
1x Quick Installa-
tion Guide
