HT801/HT802 Ports Description

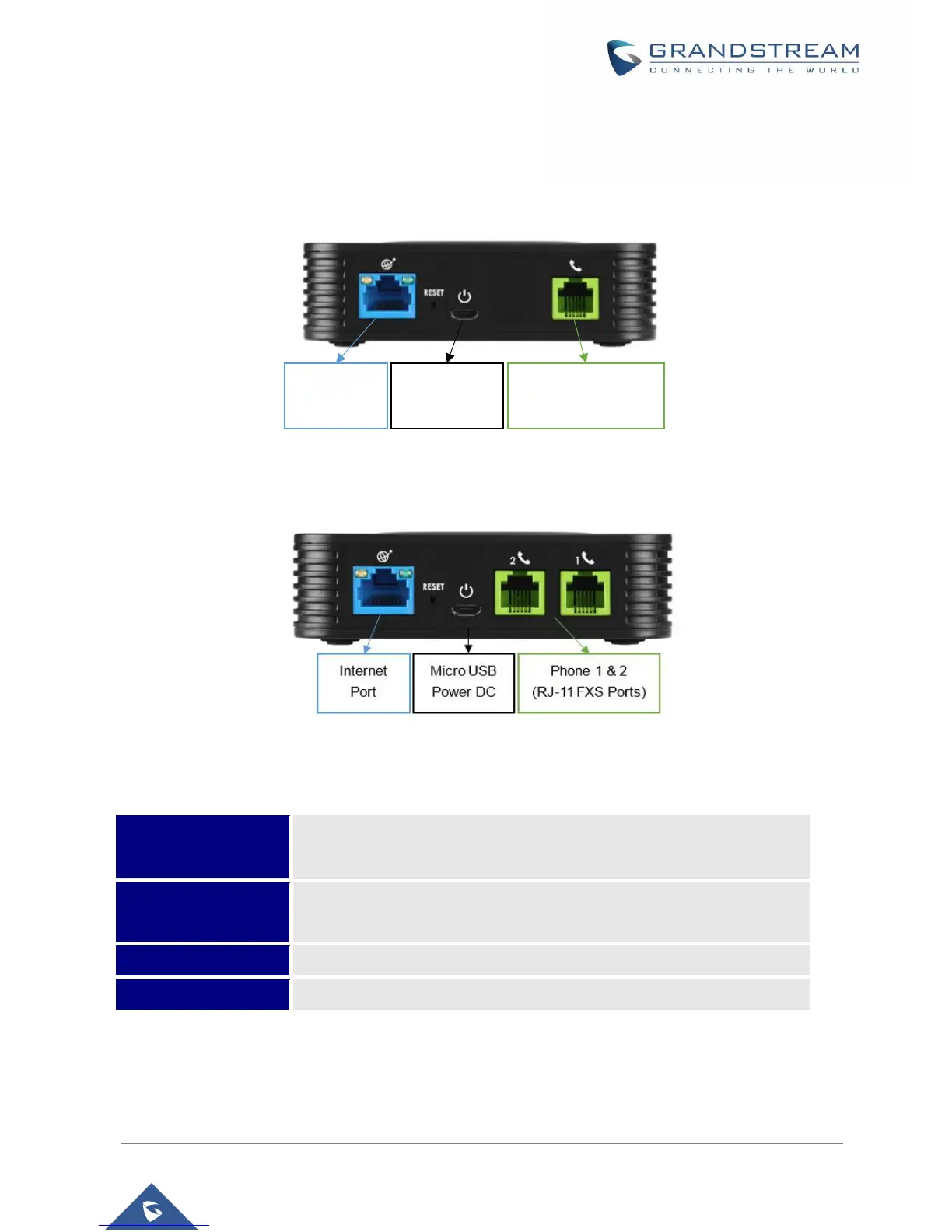

The following figure describes the different ports on the back panel of the HT801.
The following figure describes the different ports on the back panel of the HT802.
Figure 4: HT802 Back Panel
Table 3: Definition of the HT801/HT802 Connectors
Phone for HT801
Phone 1 & 2 for HT802
Used to connect the analog phones / fax machines to the phone adapter
using an RJ-11 telephone cable.
Internet port
Used to connect the phone adapter to your router or gateway using an
Ethernet RJ45 network cable.
co
Micro USB Power
Connects the phone adapter to PSU (5V – 1A).
Reset
Factory reset button, press for 7 seconds to reset factory default settings.
Phone
(RJ-11 FXS Port)
Micro USB
Power DC
Internet
Port
Figure 3: HT801 Back Panel
