10 Commissioning
10.6 Air Adjuster Disc – Combi
21 only
The Riello RDB 2.2 burner fitted to this
boiler incorporates a secondary air
adjustment shutter located within the air
inlet housing.
It is essential that this internal shutter
disc be correctly set to position ‘C’.
Refer to Figure 10-4.
To access the air adjuster disc:
1. Ensure the boiler is isolated from
the electrical supply.
2. Remove the burner from the boiler.
3. Undo the two screws and remove
the air inlet cover from the side of
the burner.
4. The secondary air shutter disc is
factory set in position ‘C’ – i.e.
with the cut-out marked C located
against the die-cast boss on the fan
housing. See Figure 10-4.
5. If not set to position ‘C’: remove
the screw from the centre of the
air shutter disc, and re-position it
such that the cut-out ‘C’ is located
against the cast boss on the fan
housing. Replace the screw in the
centre of the air shutter disc and
tighten.
6. Re-fit the air inlet cover to the side
of the burner and reassemble in
reverse order.
10.7 Information for the User
The User must be advised (and
demonstrated if necessary) of the
following important points:-
• Howtostartandswitchoffthe
boiler and how to operate the
system controls.
• Theprecautionsnecessaryto
prevent damage to the central
heating system and to the building,
in the event of the boiler not being
in operation during frost conditions.
• Theimportanceofservicingthe
boiler to ensure safe and efficient
operation. This should normally be
required only once a year.
• Thetypeoffuelused.
• Thatanyservicingorreplacement
of parts must only be carried out by
a suitably qualified engineer.
• Ensurethattheboilercontrolsand
room thermostat (if fitted) are set to
the User’s requirements.
• TelltheUserthesystempressure
and show them the position of the
safety valve discharge pipe.
• ShowtheUserhowtoresetthe
overheat thermostat and how to
restart the boiler if it goes to ‘Lock-
out’.
Leave this Instruction manual with
the User.
Ensure the User information pack
has been given to the Householder.
!
NOTE

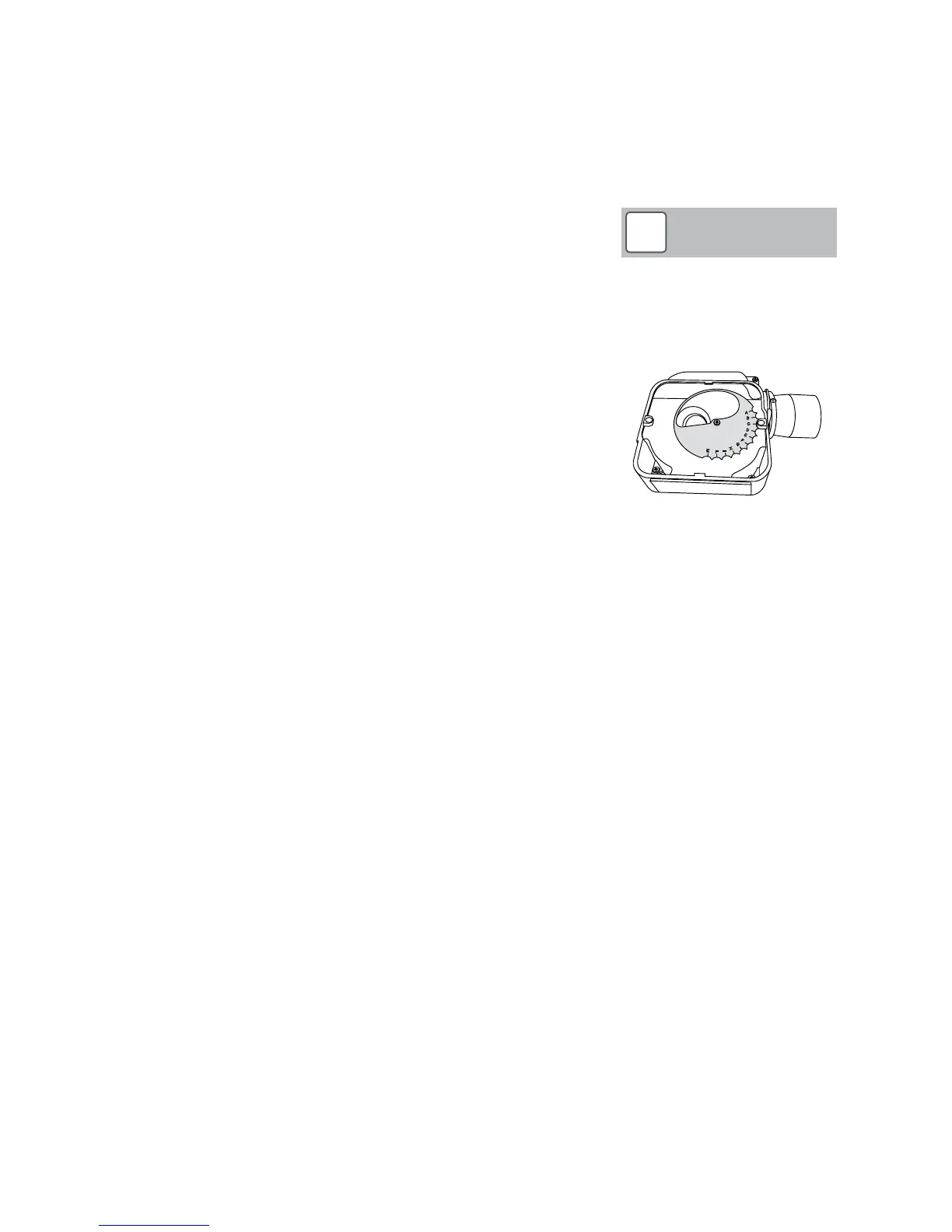

Figure 10-4: Burner air adjuster disc
(shown set to position C)
