Grant Vortex Oil Boilers
3 - BOILER TECHNICAL INFORMATION

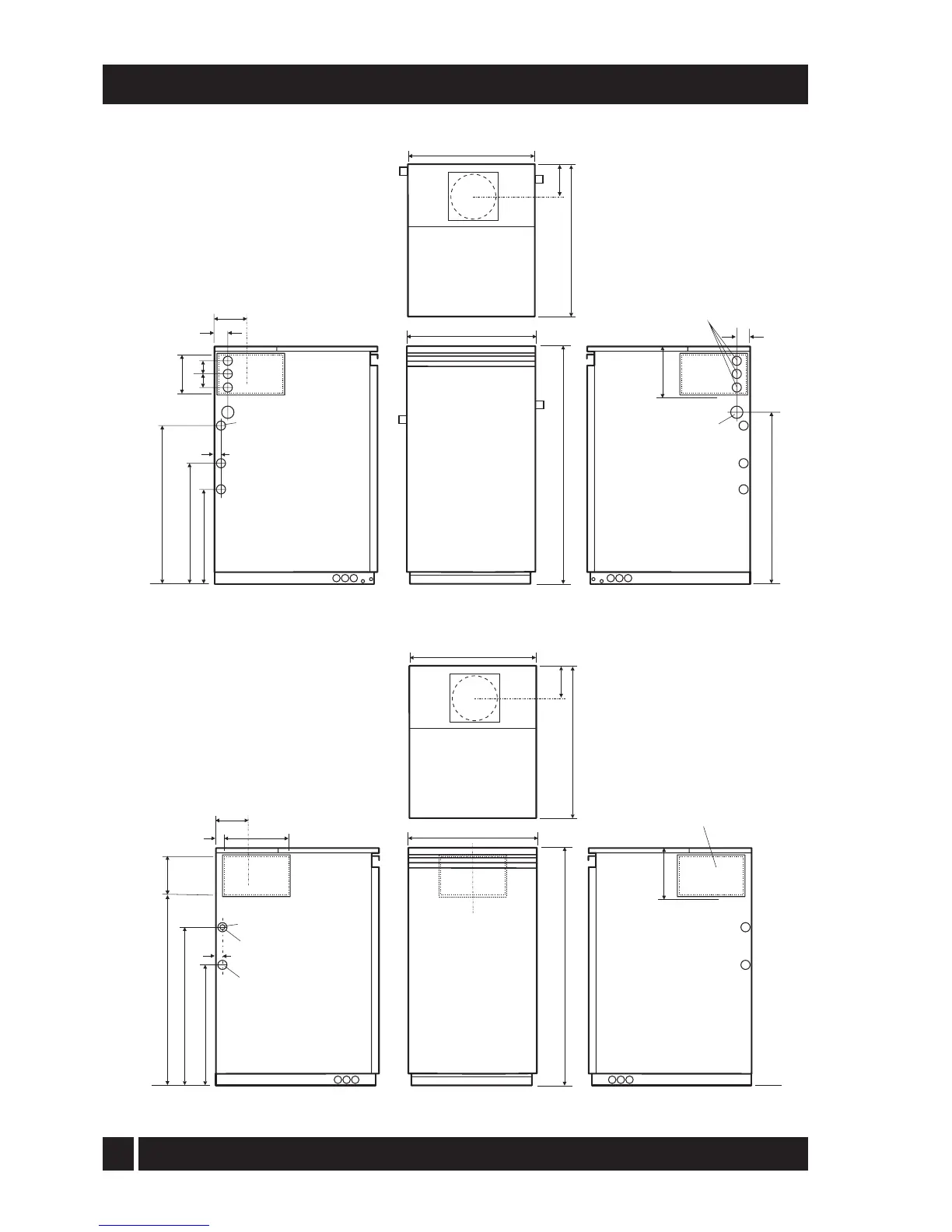

Fig. 1c - Utility and Utility System 26/36 and 36/46 dimensions
Fig. 1d - Utility 46/58 and 58/70 dimensions
Safety
valve
Flow
-
28mm
push-fit
Cold
fill
61
170
61
LEFT
SIDE
VIEW
455
555
599
31
1
24
11
5
63
63
Flue
centre
line
RIGHT
SIDE
VIEW
PLAN
VIEW
470
603
150
22mm
condensate
drain
FRONT
VIEW
470
900
28mm
stainless
return
205
Flue
spigot
170
LEFT
SIDE
VIEW
731
831
1024
25
30
44
Dia.
44
Dia.
109
250
Flue
centre
line
RIGHT
SIDE
VIEW
PLAN
VIEW
563
786
109
22mm
condensate
drain
FRONT
VIEW
563
1234
225
Flue
spigot
Note:
Cover
plate
on
each
side
slides
forwards
to
provide
opening
for
pipes.
9
11
