Grant VORTEX Pro Combi Series User Manual

40
Flue System and
Air Supply
10 Commissioning
It is important that the following
commissioning procedure is carried out
to ensure safe and efficient operation of
the boiler.
To access the controls, remove the front
panel (pull forward at the top and then
lift off).
The controls are shown in Figure 10-1.

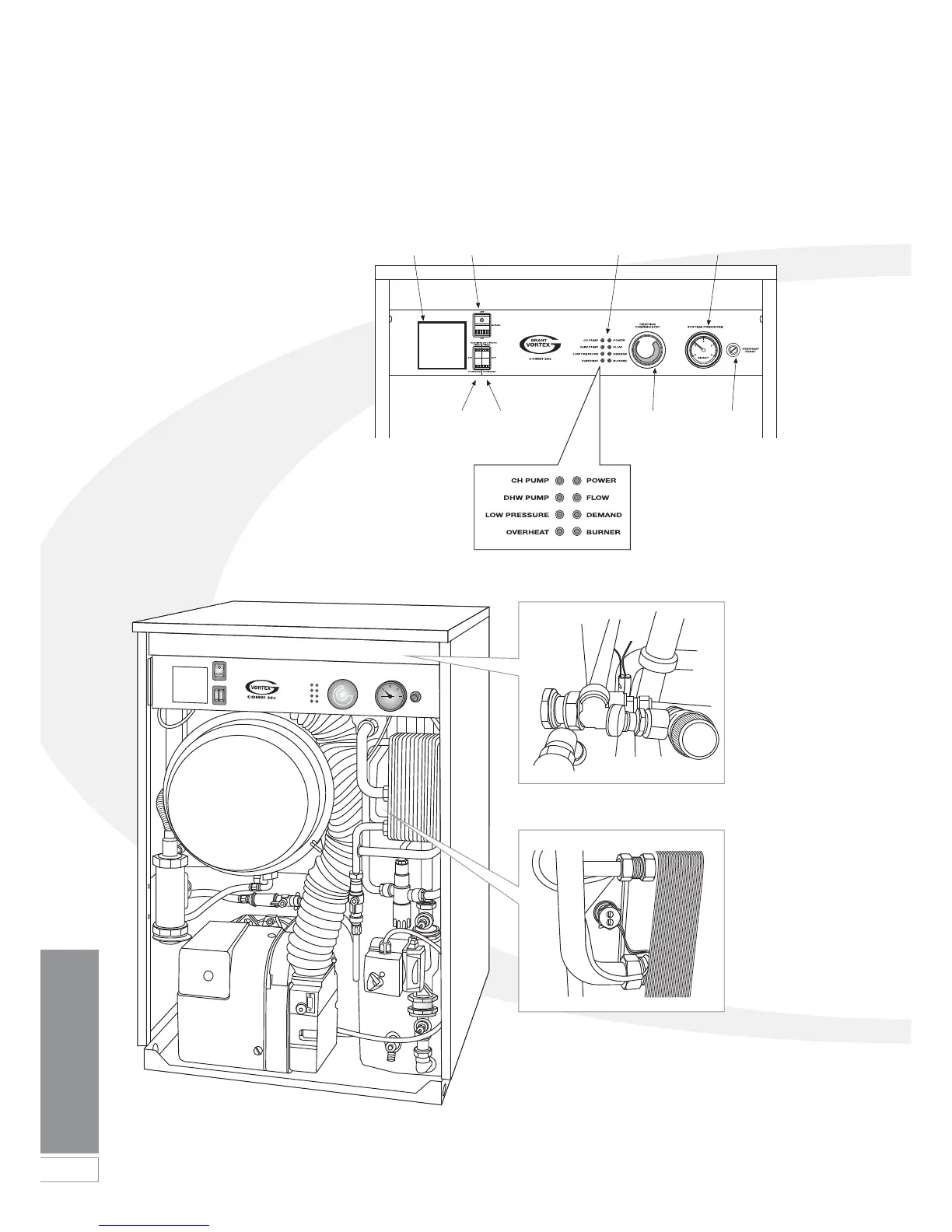

Figure 10-1: Vortex Pro Combi e
boiler control panel
Figure 10-2: Position of boiler components -
Vortex Pro Combi e boilers
Plug-in
programme
r position
(if fitted)
Heating
switch
Hot water
switch
Boiler
thermostat
Over heat
reset button
(under black
cap)
Boiler
On / Off
switch
Indicator
lights
Pressure
gauge
Flow sensor (black sleeve)
Store sensor (white sleeve)

Grant VORTEX Pro Combi Series Specifications

General

Model	VORTEX Pro Combi Series
Boiler Type	Combi
Heating Flow Temperature Range	30°C to 80°C
Installation Type	Wall Mounted
Output	26kW, 36kW
