Grant VORTEX Pro Combi Series User Manual

Boiler Servicing
45

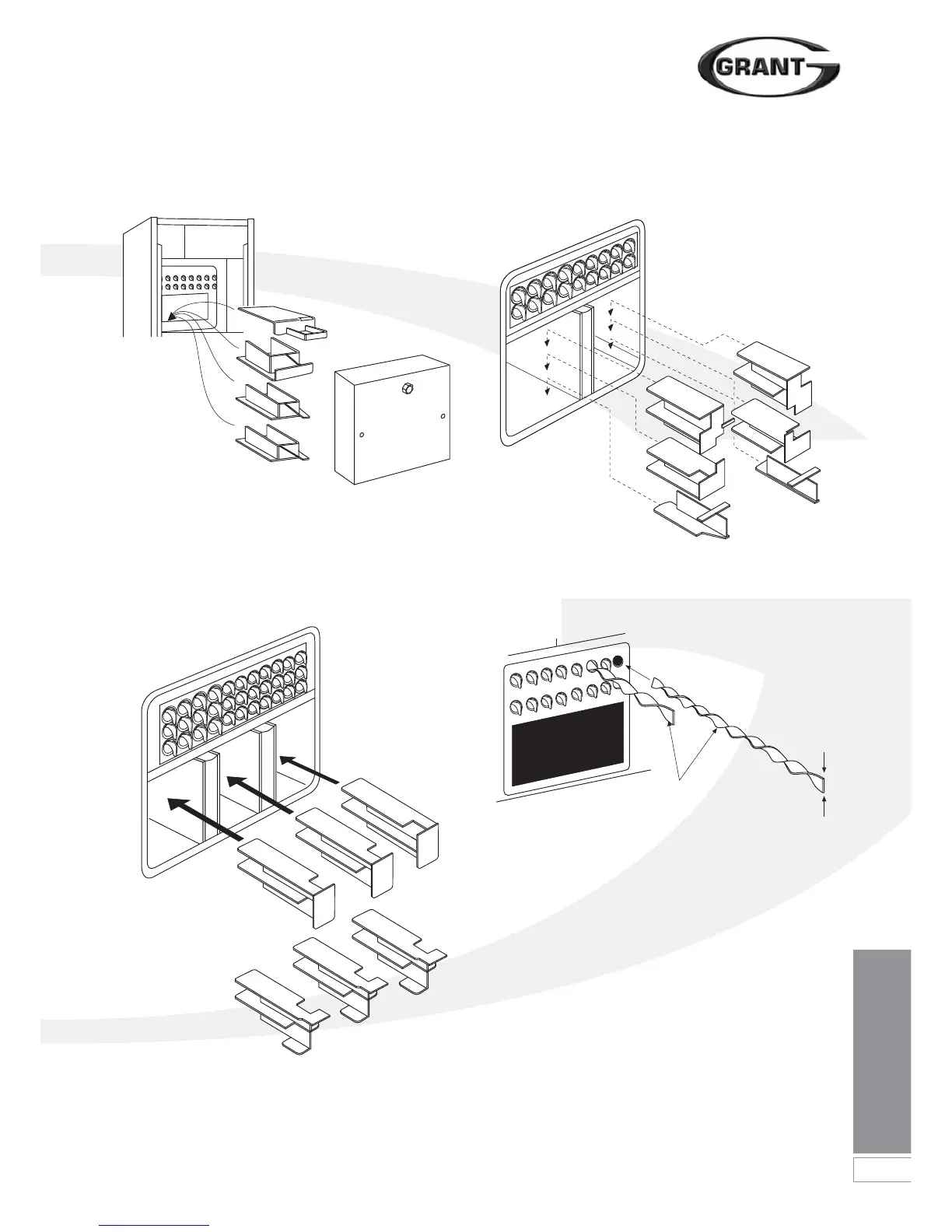

Figure 11-2: Baffles in Vortex Pro Combi 26e
Figure 11-1: Baffles in Vortex Pro Combi 21e
Figure 11-4: Turbulators in Vortex Pro Combi e boilers
Figure 11-3: Baffles in Vortex Pro Combi 36e
IMPORTANT
The ends of the
turbulators must
be vertical
Turbulators
Bottom set
Top set
Right
baffles
Left
baffles
4
3
2
1
Position in vertical plane
