PRODUCT DATA SHEET
www.grassvalley.com
35-Button Source Select Module
KAYN-FRM-EDPM
Four video and key channel expansion
digital picture manipulator module and
software license. Not for the 4 RU frame.
Includes Kurl and Spektra.
KAYN-FRM-IMG-4
4 GB Image Store – Stills license with
standard RAM capacity as follows:
approx. frames/format = 850/1080i,
1900/720p, 4800/525i, 4100/625i.
KAYN-FRM-IMG-UPG
4 GB upgrade to Image Store – Stills
expansion option, doubling the RAM
capacity as follows: approx. frames/
format = 1700/1080i, 3800/720p,
9600/525i, 8200/625i.
KAYN-FRM-IOXPND
Input/output expander module, adding 24
inputs, 12 outputs, eight GPI inputs, 32
GPI output/tally relay closures, optional
four MatchDef inputs. One per empty
M/E slot.
KAYN-LIC-CHROxxx
License enabling two or all chroma
keyers in the system.
KAYN-LIC-IDPM-xxx
License enabling two, four, or all floating
iDPM video and key channels. Includes
Kurl and Spektra.
KAYN-LIC-MATCHDEF
License for MatchDef dual video source
format converter for matching two SD
or HD sources to the production format,
maximum of eight for up to 16 sources.
KAYN-LIC-NETCEN
License enabling NetCentral
™
SNMP
agent for system health monitoring over
Ethernet.
KAYN-LIC-RGB
License for RGB color correction on all
outputs. Thirty-two RGB color correctors
on full M/E busses, eight per M/E, and
on all aux outputs.
KAYN-LIC-SETDEF
License enabling SetDef dual video
source format converters for converting
two outputs from the production format
to another HD or SD format, both outputs
of the same format, different aspect ratio
settings allowed.
KAYN-PNL-OPT-DCM
Device control module option for an
option slot in the main panel, or in a
satellite panel enclosure, or as a spare.
Used for controlling various image record
and playback devices with full-motion
control features and a jog knob.
KAYN-PNL-SAT-1
Single module satellite panel enclosure
for remote mounting a panel module
separate from the main panel up to 15
meters from the panel control unit.
KAYN-PNL-SAT-2
Dual module satellite panel enclosure
for remote mounting two panel modules
separate from the main panel up to 15
meters from the panel control unit.
KAYN-PNL-MENU
Touchscreen menu panel and cable, as
additional menu connected to second
CPU (requires KAYN-PNL-CPU2), or
standalone connected to customer
furnished PC, or as a spare.
KAYN-PNL-CPU2
CPU module for connecting a second
menu panel to one panel control unit.
KAYN-CLPS-2CH-PAK
Two-channel (video/key pair) ClipStore
package is based on the K2 Solo Server
platform and includes both DV and AVC-
Intra codecs and K2-AppCenter Elite.
KAYN-CLPS-4CH-PAK
Four-channel (video/key pair) ClipStore
package is based on the K2 Summit
Server platform and includes both DV and
AVC-Intra codecs and AppCenter Elite.
KAYN-PAK1
Option package including four floating
iDPM channels, 8 GB image store
(stills), two channels of MatchDef input
conversion, two channels of SetDef
output scaling, redundant PSU for frame.
KAYN-PAK2
Option package for 8 RU frames including
machine control module with jogwheel,
four v/k channels of eDPM, two floating
iDPM channels, 8 GB image store
(stills), two channels of MatchDef input
conversion, two channels of SetDef
output scaling, redundant PSU for frame.
KAYN-PAK3
Option package for 8 RU frames
including, four v/k channels of eDPM,
four floating iDPM channels, 8 GB image
store (stills), two floating chroma keys,
redundant PSU for frame.
KAYENNE OPTIONS
Please contact your authorized Grass Valley representative for a full list of available options.
Local and regional sales contacts can be found by visiting www.grassvalley.com/sales

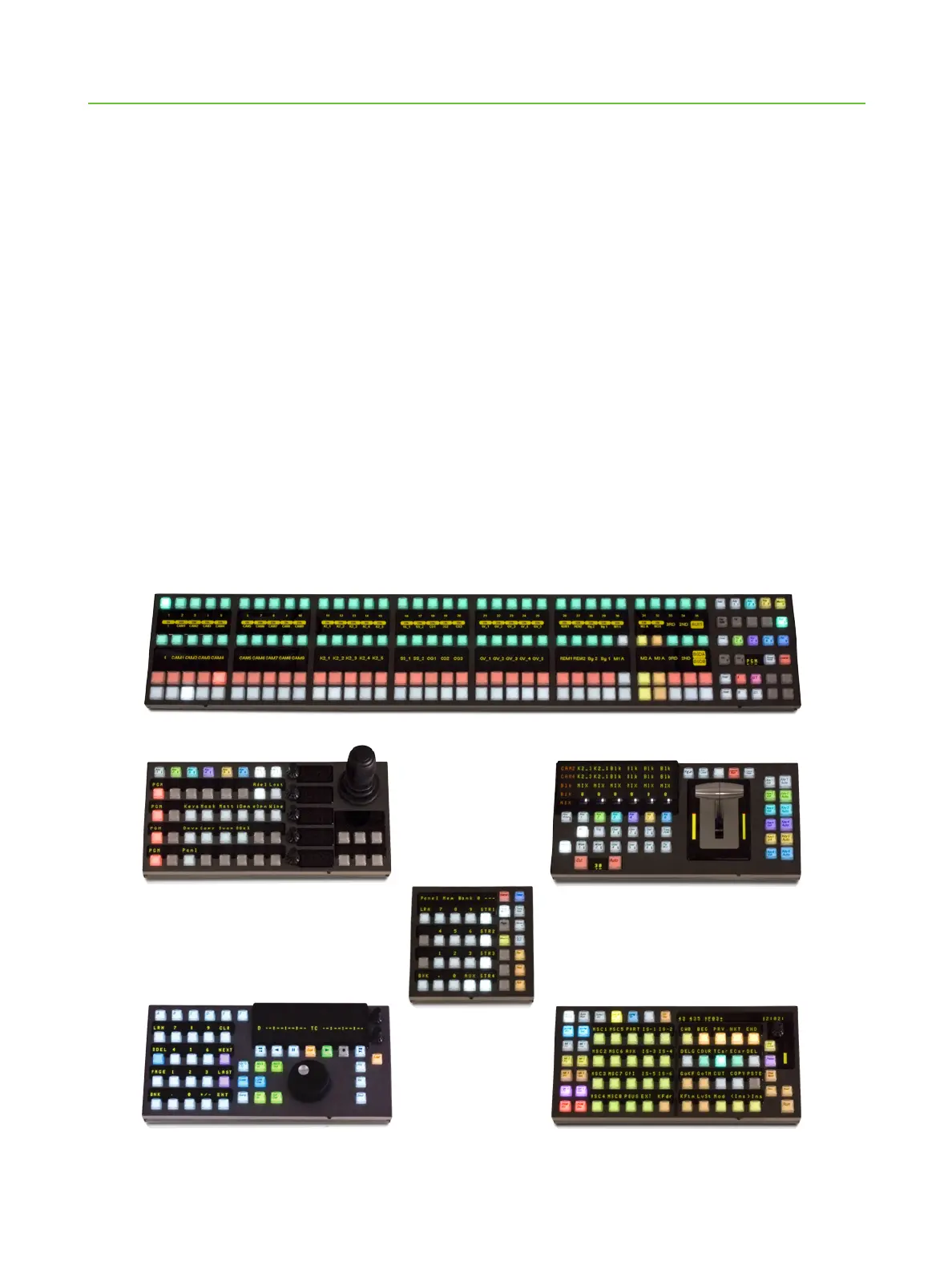

Master E-MEM Module
Local E-MEM Module
Transition ModuleMultifunction Module
Device Control Module
