GRASS VALLEY KAYENNE Datasheet

PRODUCT DATA SHEET

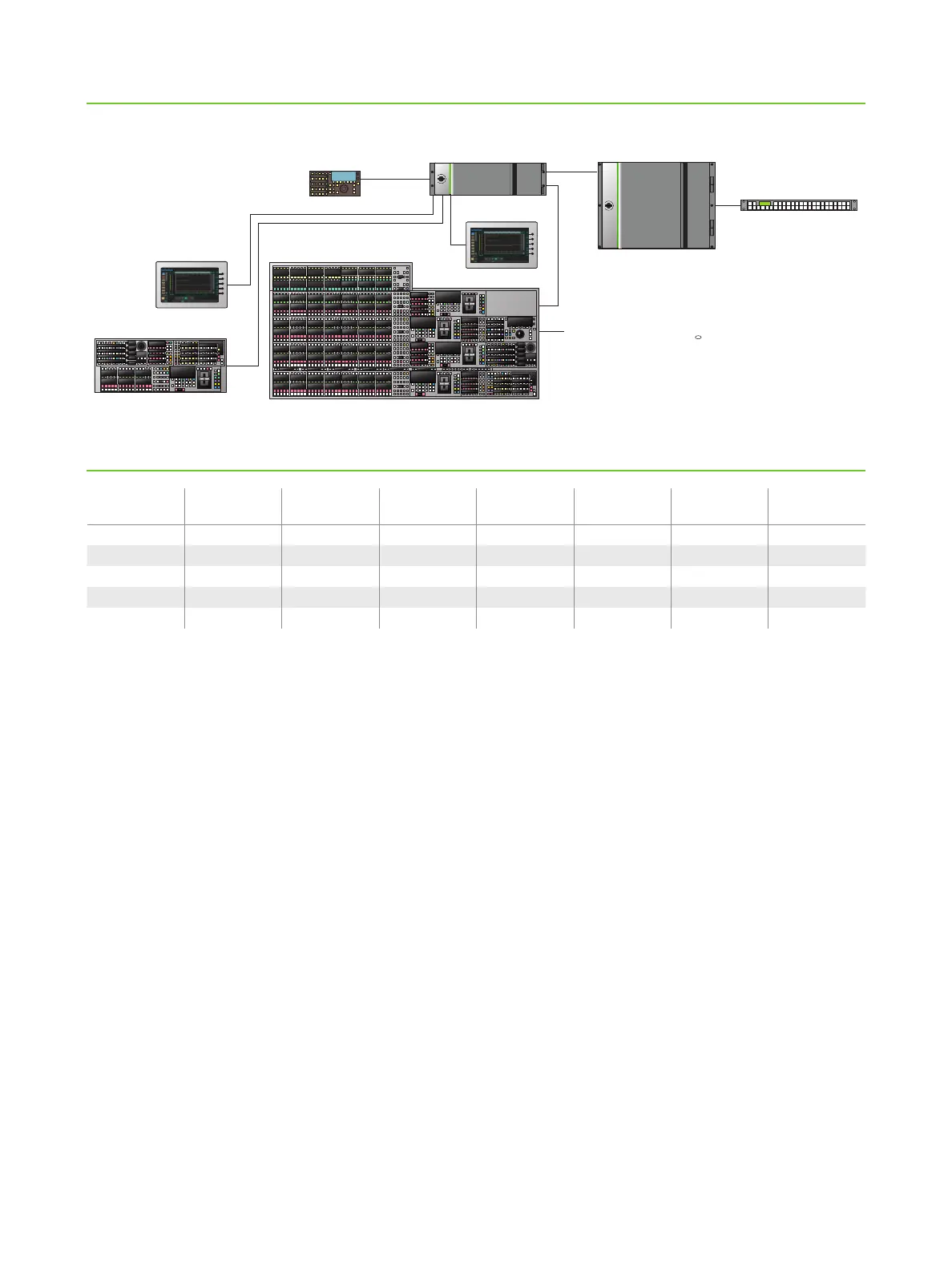

KAYENNE VIDEO PRODUCTION CENTER SYSTEM SET-UP OPTIONS
Optional Satellite Panel
with Device Control Module
Kayenne Panel Control Unit
Kayenne 8 RU
Video Processing Frame
Kayenne Menu Panel
Optional Kayenne
Menu Panel
Standard 4 M/E Panel
Optional 1 M/E Panel
Optional Device Control Module
KAYENNE
VIDEO PRODUCTION CENTER
Frame Model M/Es Inputs Outputs GPI Inputs GPI/Tally
Outputs
MatchDef
Inputs
SetDef Outputs
150C 1.5 24-48* 12-24* 8-16* 32-64* Up to 8* Up to 4*
250C 2.5 48 24 16 64 Up to 8 Up to 4
250 2.5 48-96* 24-48* 16-32* 64-128* Up to 16* Up to 8*
350 3.5 72-96* 36-48* 24-32* 96-128* Up to 16* Up to 8*
450 4.5 96 48 32 128 Up to 16 Up to 8
* With optional I/O expansion.
Video Standards
HD Mode:
1080i 25/29.97/30•
1080pSF 23.976/24/25/29.97/30•
720p 50/59.94/60•
SD Mode:
525i 59.94•
625i 50•
Power
Video Processing Frame 4 RU:
Line voltage: 100V-240 VAC ±10% •
autorange, power factor corrected.
Automatic line-voltage sensing for
120V and 240V sources
Line frequency: 50/60 Hz ±5%•
Power consumption: Max. 400W•
Leakage current: <2.5 mA•
Video Processing Frame 8 RU:
Line voltage: 100V-240 VAC ±10% •
autorange, power factor corrected.
Automatic line-voltage sensing for
120V and 240V sources
Line frequency: 50/60 Hz ±5%•
Power consumption: Max. 800W •
(1000W with EDPM)
Leakage current: <2.5 mA•
Panel Control Unit (PCU) 3 RU:
Line voltage: 100V-240 VAC ±10% •
autorange, power factor corrected.
Automatic line-voltage sensing for
120V and 240V sources
Line frequency: 50/60 Hz ±5%•
Power consumption: Max. 500W•
Leakage current: <2.5 mA•
Communications
Connections:
Panel to PCU: Custom multi-pin cable. •
15m/49 ft. max. length
PCU to frame: 100Base-T, 1000Base-T •
compatible. Category 5 cable, 8
conductor twisted pair. 100m/328 ft.
max. length
Interoperability:
The Kayenne Video Production Center
is fully interoperable with the Encore
™
,
Jupiter
™
, and SMS-7000 routing control
systems and with the K2 server family
(including the new K2 Summit
™
SD/HD
Live Production Server), legacy Profile
®
servers, M-Series
™
iVDRs, and Turbo
™
iDDRs. The Kayenne Video Production
Center supports Ethernet and serial
AMP protocol (standard in all systems),
BVW and Odetics protocols, as well as
controlling devices using PBusII and GPIs.
Environmental Conditions
Storage temperature: -20 to 70ºC •
(-4 to 158ºF)
Operating temperature: 0 to 40ºC •
(32 to 104ºF)
Relative humidity: 0-95% •
(non-condensing)
Electromagnetic environment: E2 •
(according to EN55103-1, -2)
