6

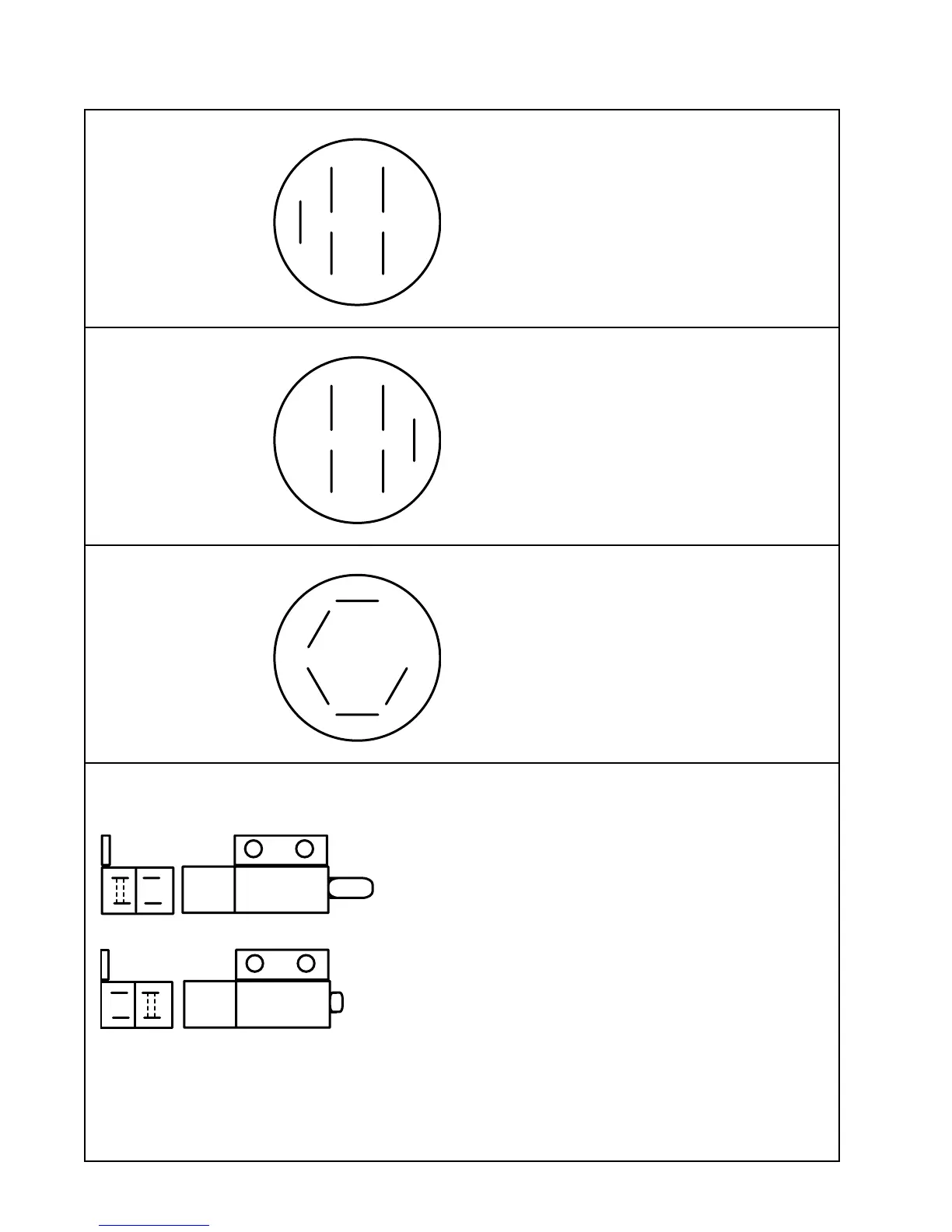

Ignition switch, part no. 183806.
(Models 612, 614, 718, 718K, and 720K).
M Magneto terminal.
S Starter terminal.
B Battery terminal.
L Lights, accessory terminal.
G Ground terminal.
Ignition switch, part no. 183830.
(Model 720).
R Regulator terminal.
A (Not used).
B Battery terminal.
S Starter terminal.
I Ignition terminal.
Ignition switch, part no. 183825.
(Models 718D, 721, 721D, and 725).
30 Battery terminal.
50 Starter terminal.
AC Accessory terminal.
17 Glow plug terminal (Diesel only).
19 Glow plug indicator terminal (Diesel only).
Brake switch, part no. 183894.
NC (normally closed) - means that the
contact is closed and current will flow
between these two terminals. When
the button is depressed, these two
terminals become open.
NO (normally open) - means that the
contact is open with the switch
mechanism released. When the
button is depressed, these two termi-
nals become closed.
The dotted line indicates an electrical con-
nection between the two terminal posts.
SWITCH FUNCTIONS
L
GB
S
M
R
A
B
I
S
50
17
AC
30
19
NC NO
NC NO
RELEASED
DEPRESSED
