Grasshopper 718K User Manual

Item
Order
Description
Item Order
Description
No. No.
No.
No.
1 393759
Splined Power Shaft 16 388791
Spring & Nut Kit
2
122043
Pillowblock Bearing W/Coliar
17 883801
RetainingWasher
3
398914
Sleeve Sect. Q.D. Drive Shaft 18
257412 Lock Washer .375
4
401019
Yoke-Splined Quick Disconnect
19 243346
Bolt .375-24 x 1.75
5
121010 Cross & Bearing
20
603080 Idler Arm W/Bearing
6
401015
Yoke With Sleeve 21 422585
Nylon Bearing
7
415650
Sheave
22 259745
Shoulder Bolt .5 x 1.75 x .375
8
281588
Gib Key .25 x 1.5 23 393175
Idler Pulley
9
257106
Washer 1" x 18 GA - 718
24
243810 Bolt .625-11 x 2
257107
Washer 1" x 10 GA - 718K 25 257452
Lock Washer .625
10
282622
Spacer .500 xl"
26
283820 Spring Extension W/Swivel
11
388762
Electric Clutch
27
732539 Idler Spring Bracket
12
388796
Field Assembly
28 729118
Clutch Bracket
13
388797
Rotor Assembly
29
381914
Drive Belt
14
388792
Armature W/Pulley 30
733148 Sheave Guard
15
388793
Brake Plate
08-89
24
27
11
10 ~~Gr~e
,
26
15
9
-
6
4
2

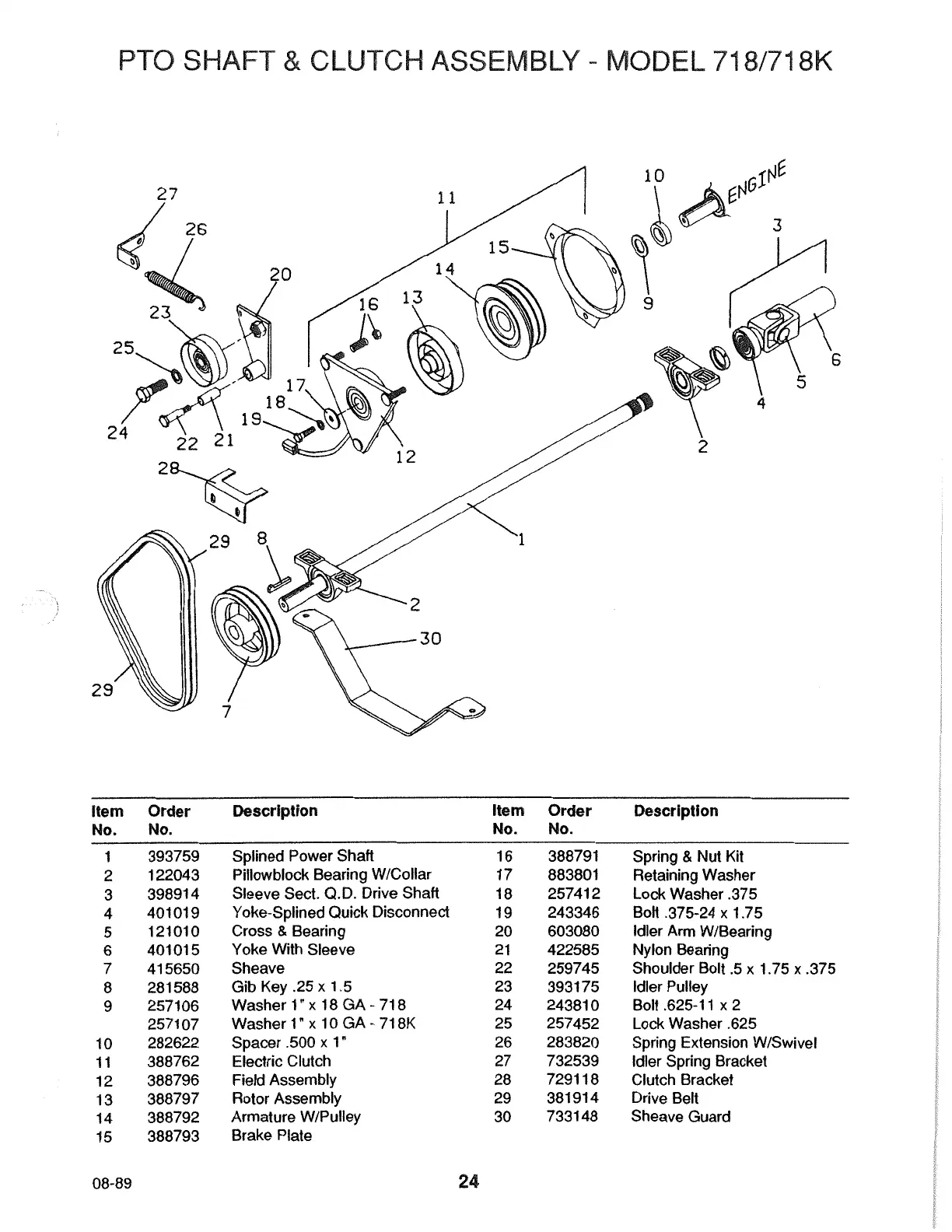

PTO SHAFT & CLUTCH ASSEMBLY - MODEL 718/718K
