Grasshopper 718K User Manual

Item
Order
Description
Item Order
Description
No. No. No.
No.
603755
Seat Ass'y (Items 1 thru 10) 14
822569 Spring Seat
1
321510 Seat Cushion - Formed 14 x 18 15
257037
Step Bushing - Rubber
2
321511 Back Cushion 14 x 16 16
243215 Bolt .312-18 x 1.5
3
321501
Arm Rest
17 257030
Flat Washer .312
4 724310
Side Member - Rt. 18
253450 Nut .312-18 Nylon Insert
5
724311
Side Member - Lt. 19
603212 Cable Assembly
6
822630
Seat Edge Trim 20
257040 Flat Washer .375
7
643620
Seat Bottom Panel 21
260648 Cotter Pin .125 x .5
8
253193
Hex Whiz Bolt .312-18 x 1
22 243210 Bolt .312-18 x 1.25
9
257410
Star Washer External
23 260520 Hair Pin .080 x 1.187
10
243195
Arm Rest Bolt .312-18 x .75 24
253176 Truss Whiz Bolt .25-20 x .5
11 643622
Seat Support Panel
25
253025 Whiz Nut .25-20
12
822645
Seat Mount Trim 26 774248 Seat Latch
13
820166 Seat Hinge
27
284407 Spring - Torsion
31
09-89
3
4
~ ..

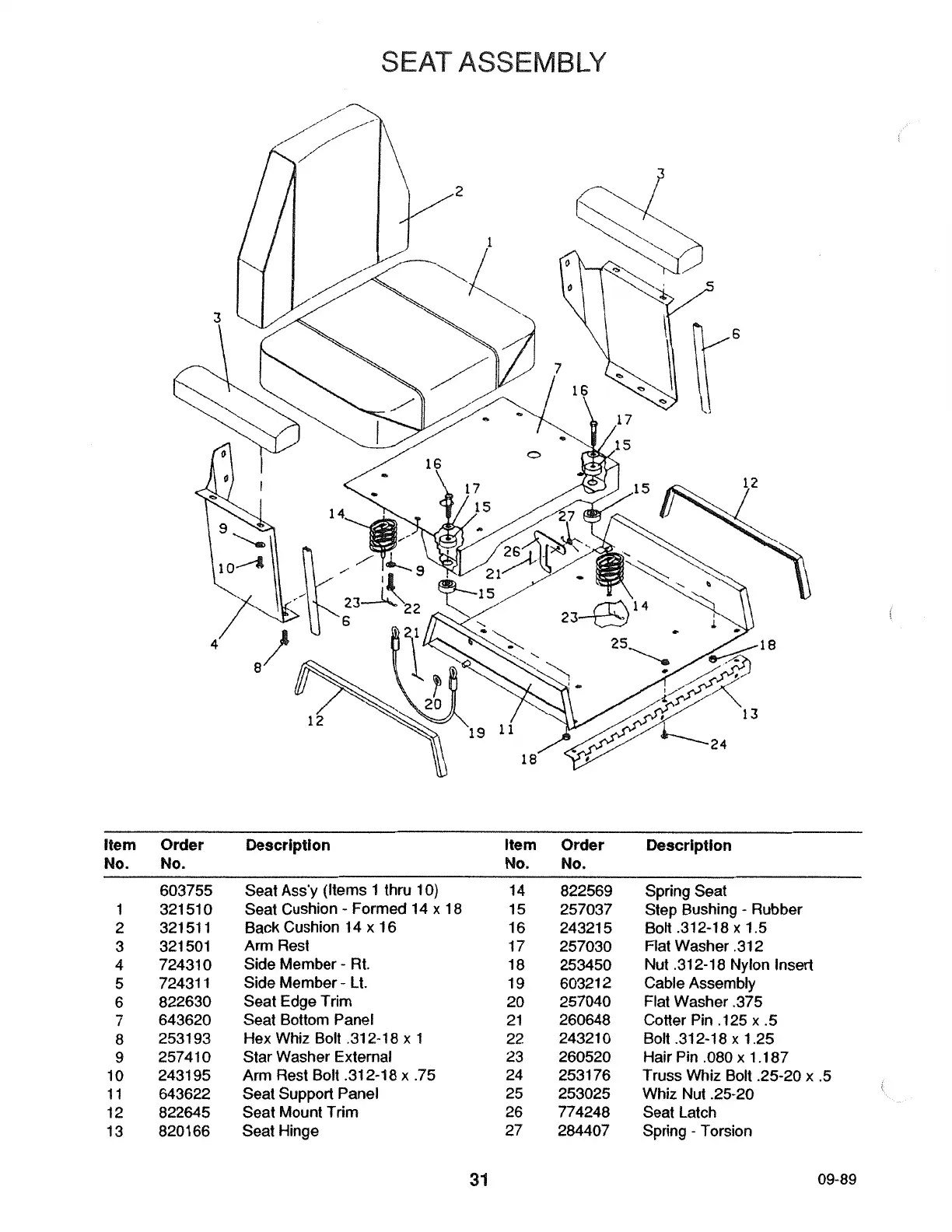

SEAT ASSEMBLY

Grasshopper 718K Specifications

General

Brand	Grasshopper
Model	718K
Category	Lawn Mower
Language	English
