08-89
27

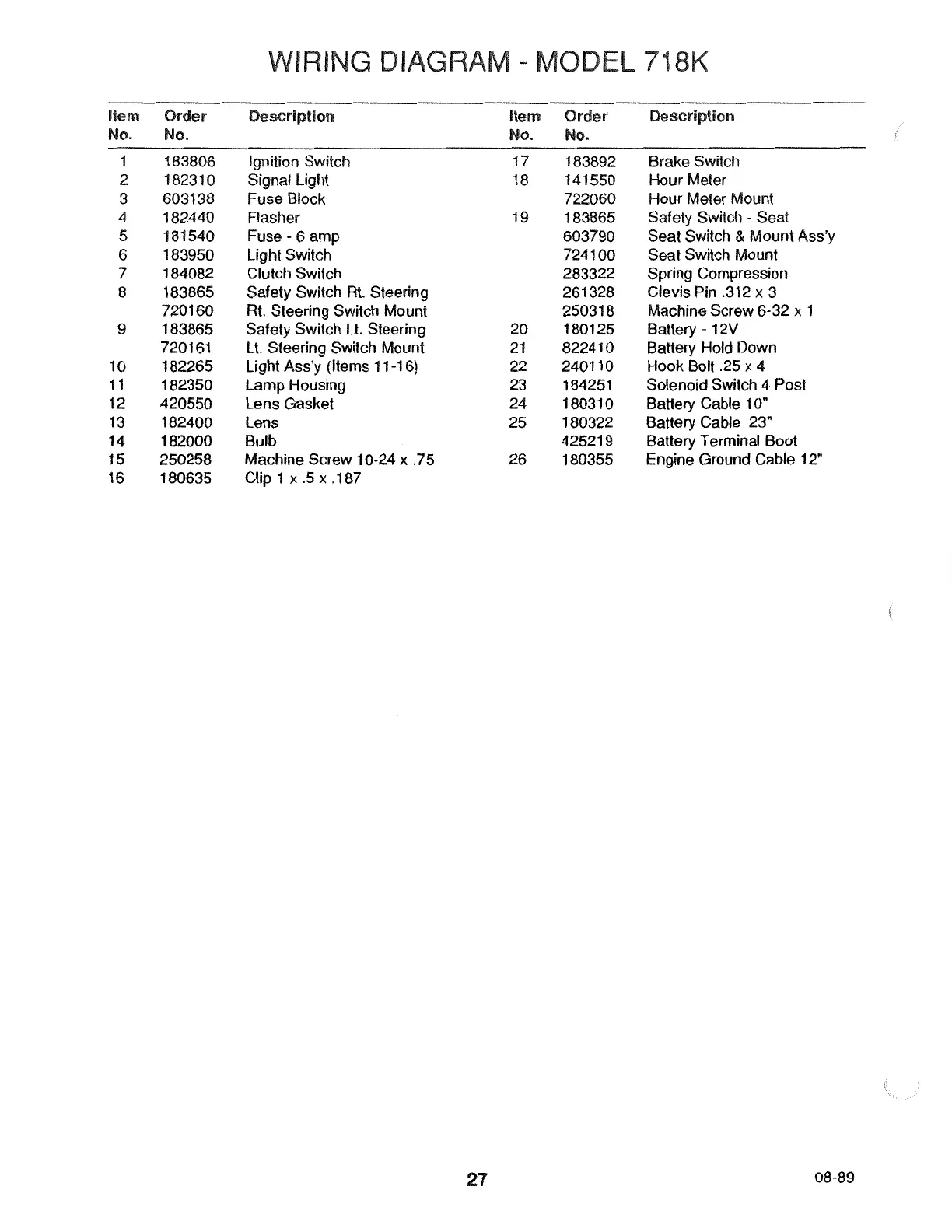

WIRING DIAGRAM - MODEL 718K
Item Order
Description Item Order Description
No. No.
No. No.
183806 Ignition Switch 17 183892 Brake Switch
2 182310
Signal Light 18 141550 Hour Meter
3 603138 Fuse Block 722060 Hour Meter Mount
4
182440 Flasher
19 183865
Safety Switch - Seat
5 181540
Fuse - 6 amp
603790 Seat Switch & Mount Ass'y
6
183950
Light Switch
724100 Seat Switch Mount
7 184082 Clutch Switch 283322 Spring Compression
8
183865
Safety Switch Rt. Steering
261328 Clevis Pin .312 x 3
720160 Rt. Steering Switch Mount 250318 Machine Screw 6-32 x 1
9 183865 Safety Switch
Lt .
Steering 20 180125
Battery - 12V
720161 U. Steering Switch Mount
21
822410 Battery Hold Down
10 182265
Light Ass'y (Items 11-16)
22 240110 Hook Bolt .25 x 4
11
182350 Lamp Housing 23 184251 Solenoid Switch 4 Post
12
420550 Lens Gasket 24 180310 Battery Cable 10"
13
182400 Lens 25 180322
Battery Cable 23"
14
182000 Bulb 425219 Battery Terminal Boot
15 250258 Machine Screw 10-24 x .75 26
180355
Engine Ground Cable 12"
16 180635 Clip 1 x.5 x .187
To Next Page
