Grasshopper 718K User Manual

02-89
29

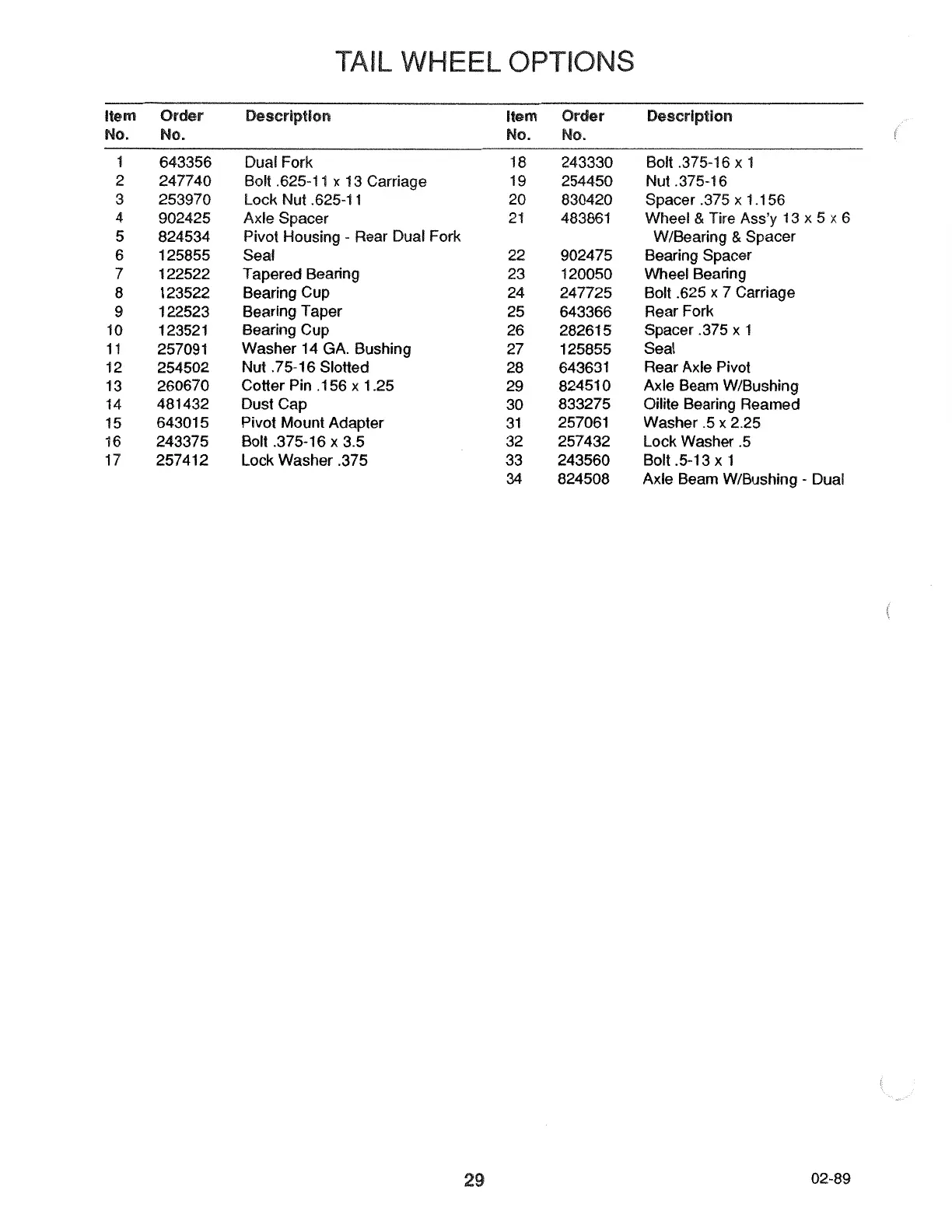

TAIL WHEEL OPTIONS
Item
Order Description
Item Order
Description
No.
No. No. No.
1
643356 Dual Fork 18 243330
Bolt .375-16 xi
2 247740
Bolt .625-11 x 13 Carriage
19
254450
Nut .375-16
3 253970 Lock Nut. 625-11 20
830420
Spacer .375 x 1.156
4
902425 Axle Spacer 21 483861 Wheel & Tire Ass'y 13 x 5 x 6
5 824534 Pivot Housing - Rear Dual Fork W/Bearing & Spacer
6 125855 Seal 22 902475 Bearing Spacer
7
122522 Tapered Bearing 23 120050 Wheel Bearing
8 123522 Bearing Cup 24 247725 Bolt .625 x 7 Carriage
9 122523
Bearing Taper 25
643366
Rear Fork
10
123521 Bearing Cup 26 282615 Spacer .375 x 1
11
257091
Washer 14 GA. Bushing 27
125855 Seal
12 254502 Nut .75-16 Slotted 28 643631 Rear Axle Pivot
13
260670
Cotter Pin .156 x 1.25 29
824510 Axle Beam W/Bushing
14
481432 Dust Cap 30 833275 Oilite Bearing Reamed
15 643015
Pivot Mount Adapter 31
257061
Washer .5 x 2.25
16 243375 Bolt .375-16 x 3.5 32 257432
Lock Washer .5
17 257412 Lock Washer .375 33 243560
Bolt .5-13 xl
34
824508 Axle Beam W/Bushing - Dual

Grasshopper 718K Specifications

General

Brand	Grasshopper
Model	718K
Category	Lawn Mower
Language	English
