Safety precautions
· The connection and installation of electrical devices may only be carried out by a qualified
electrician.
· Interventions in and changes to the device result in the voiding of the warranty claim.
· Observe your national regulations and the respective safety provisions.
· Fixed and flexible conductors of up to 10 mm² may be attached to the external terminal clips.
·Flexiblecableswithacross-section≤1mm²shouldnotbeattached.
General information
·
Deactivation commands take priority over activation commands.
· If the power supply is correct, the dots shown between the hours and minutes (HH:MM) are
displayed permanently. The dots flash if the power supply is interrupted.
· If there is no power supply, the position indicator display goes out after 2 minutes.
· The whole display flashes the battery needs to be changed for up to 2 weeks to warn that.

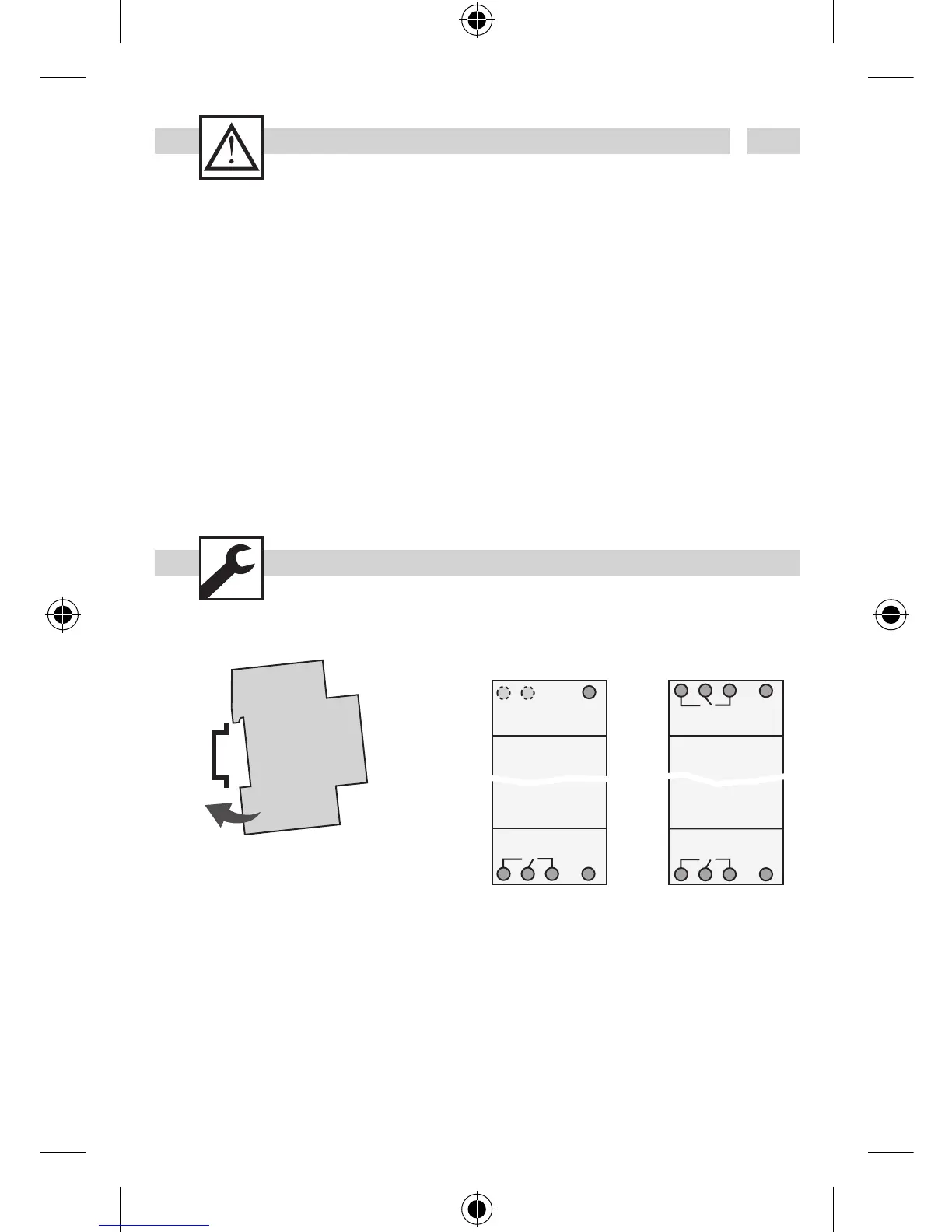

Installation on DIN rail Terminal diagram
5 6
L
1 2 3
N
5 6 7
L
1 2 3
N
C1
C2(DCF)
C1
Channel 2
Weekly program
Channel 1
A
stro program
Channel 1
Astro program
