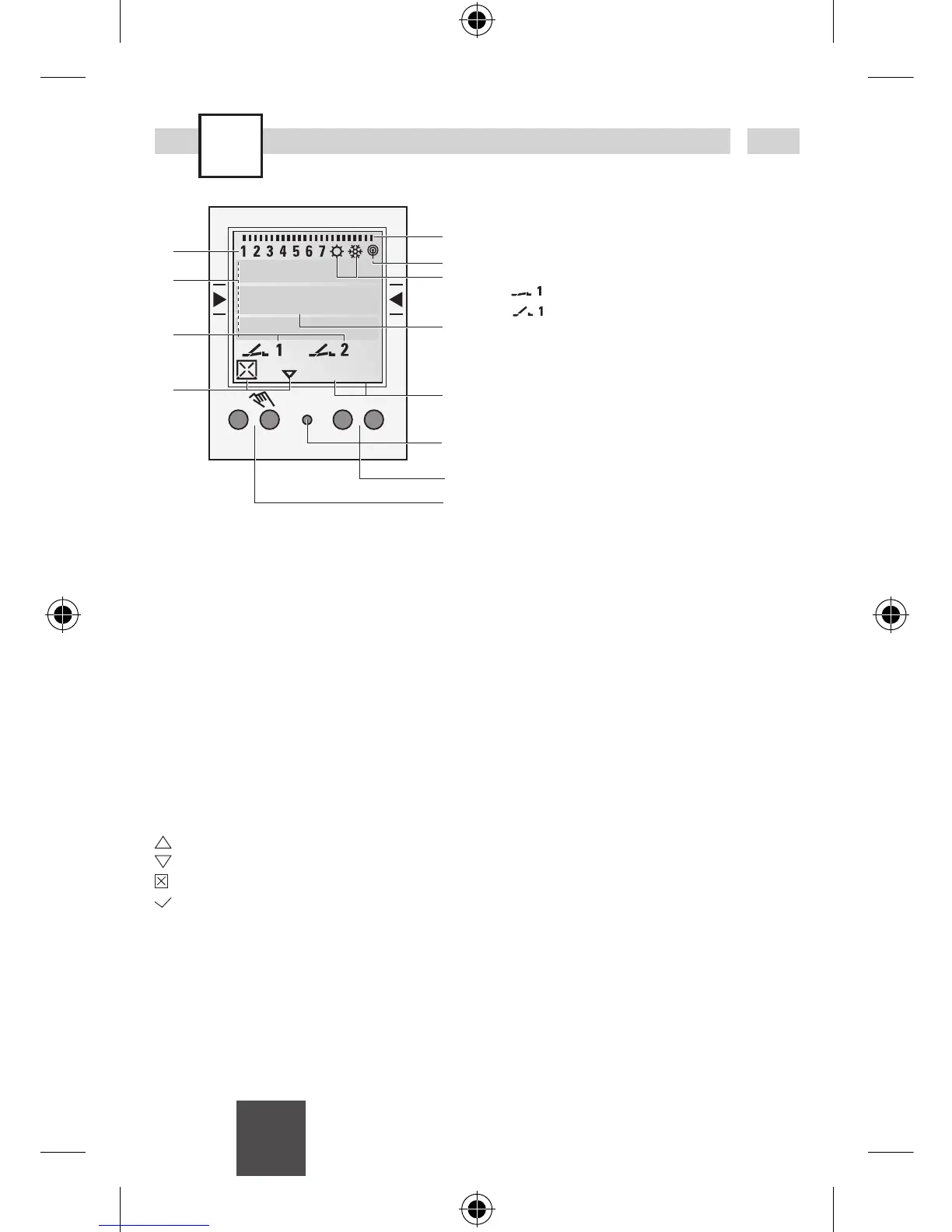

Display
A
Function displays of the two left-hand
buttons
B
Channel status displays
= Channel 1 ON
= Channel 1 OFF
Channel 1 = C1, Channel 2 = C2
C
3 communication lines for time display,
menu items, entry prompts etc.
D
Day-of-week display
E
Overview of daily switching program
F
Radio antenna
G
Display of summer/winter time
H
Operating voltage (permanently lit dots)
Reserve power operation (dots flash)
I
Function displays of the two right-hand
buttons
Buttons
J Reset
The programs are retained in the case of
a reset. The date and time must be set
again. Press reset button with a blunt
object (pen).
K
Right-hand buttons
L
Left-hand buttons with manual switch
function in Automatic mode
General information
· The middle communication line shows the
selectable menu item. If confirmed with
OK,
this item is activated.
· Flashing texts or symbols require an entry.
· If no entries are made within the next
2 minutes, the clock reverts to Auto mode.
Function displays of the two left-hand
buttons:
scroll up in menu
scroll down in menu
Select/reject suggestion
Select/accept suggestion
+ Pressing briefly = +1
Pressing long (approx. 2 sec) = +5
- Pressing briefly = -1
Pressing long (approx. 2 sec) = -5
Function displays of the two right-hand
buttons:
MENU
Exits the Automatic mode and
enters the Programming mode
ESC
Pressing briefly = one step back
Pressing long (approx. 2 sec) =
return to Automatic mode
OK
Make selection and apply
EDT
Change request in Read mode
NO
Do not execute command
YES
Execute command
DEL Delete
