GRAUPNER GR-12L User Manual

11 / 24
16570.123_V1sh

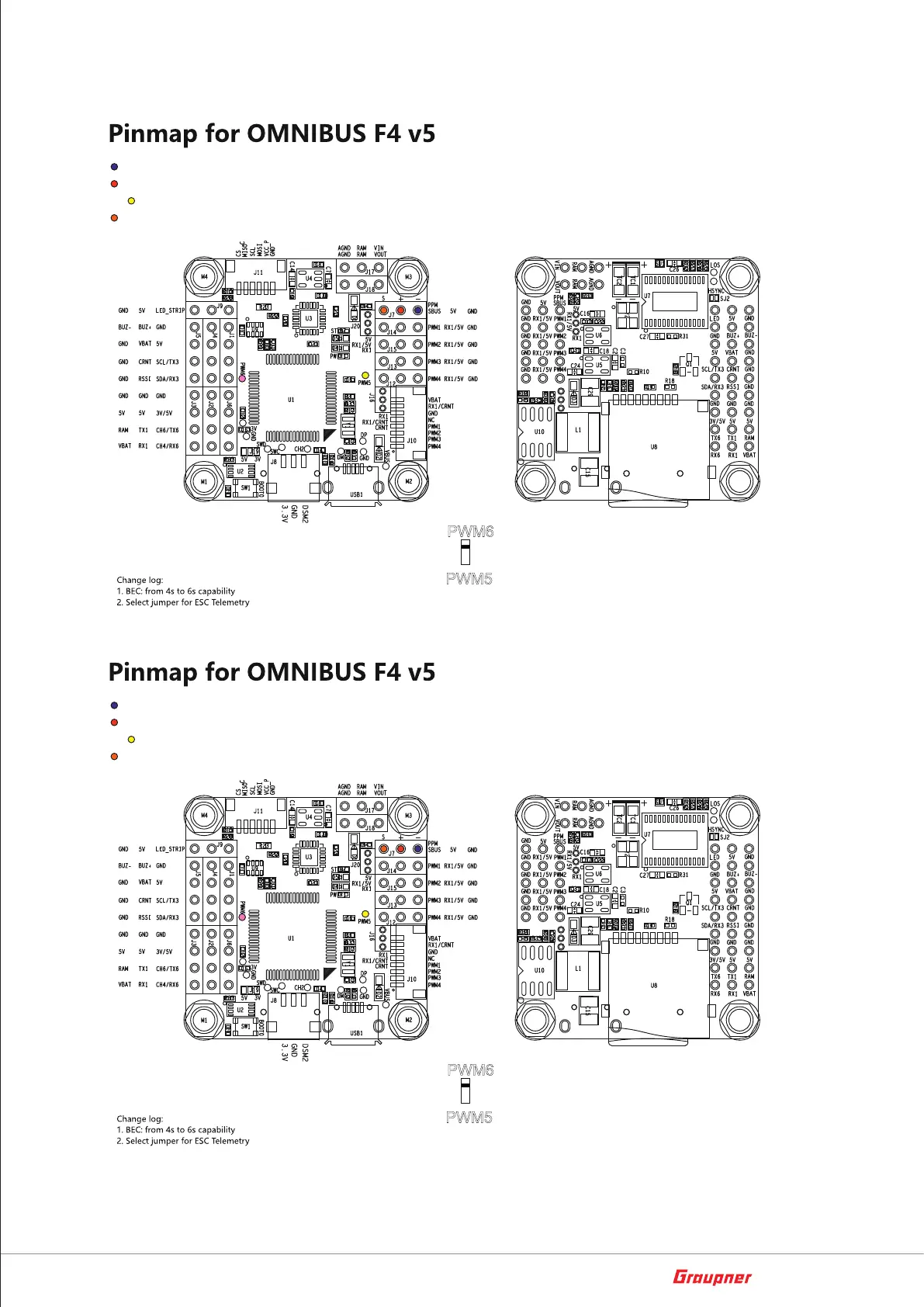

with inav software,
special compiled software
needed for use of softserial
with PWM5 and PWM6
diode
1N4148
PWM6
PWM5
GND
+5 V DC
Softserial telemetry connected to 5 of SUMD receiver
SUMD connected to 6 of SUMD receiver
telemetry half duplex = off, Softserial 1
serial RX on RX6
GPS on Rx1, Tx1
Magnetometer on SCL, SDA
#48474.MPU6000
with inav software,
special compiled software
needed for use of softserial
with PWM5 and PWM6
diode
1N4148
PWM6
PWM5
GND
+5 V DC
Softserial telemetry connected to 5 of SUMD receiver
SUMD connected to 6 of SUMD receiver
telemetry half duplex = off, Softserial 1
serial RX on RX6
GPS on Rx1, Tx1
Magnetometer on SCL, SDA
#48474.MPU6000

GRAUPNER GR-12L Specifications

General

Type	Radio-Controlled (RC) Model Parts
Proper use	Helicopter
Product type	Receiver
Programmable	Yes
Product color	Black, Green
Frequency range	2400 - 2483.5 MHz
Channels quantity	16 channels
Brand compatibility	Graupner
Maximum operating distance	3000 m
Voltage	3.6-8.4 V
Operating temperature (T-T)	-15 - 70 °C

Weight and Dimensions

Width	25 mm
Height	4 mm
Weight	4 g
