GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved! No liability for printing errors! 10/2011
- 5 -

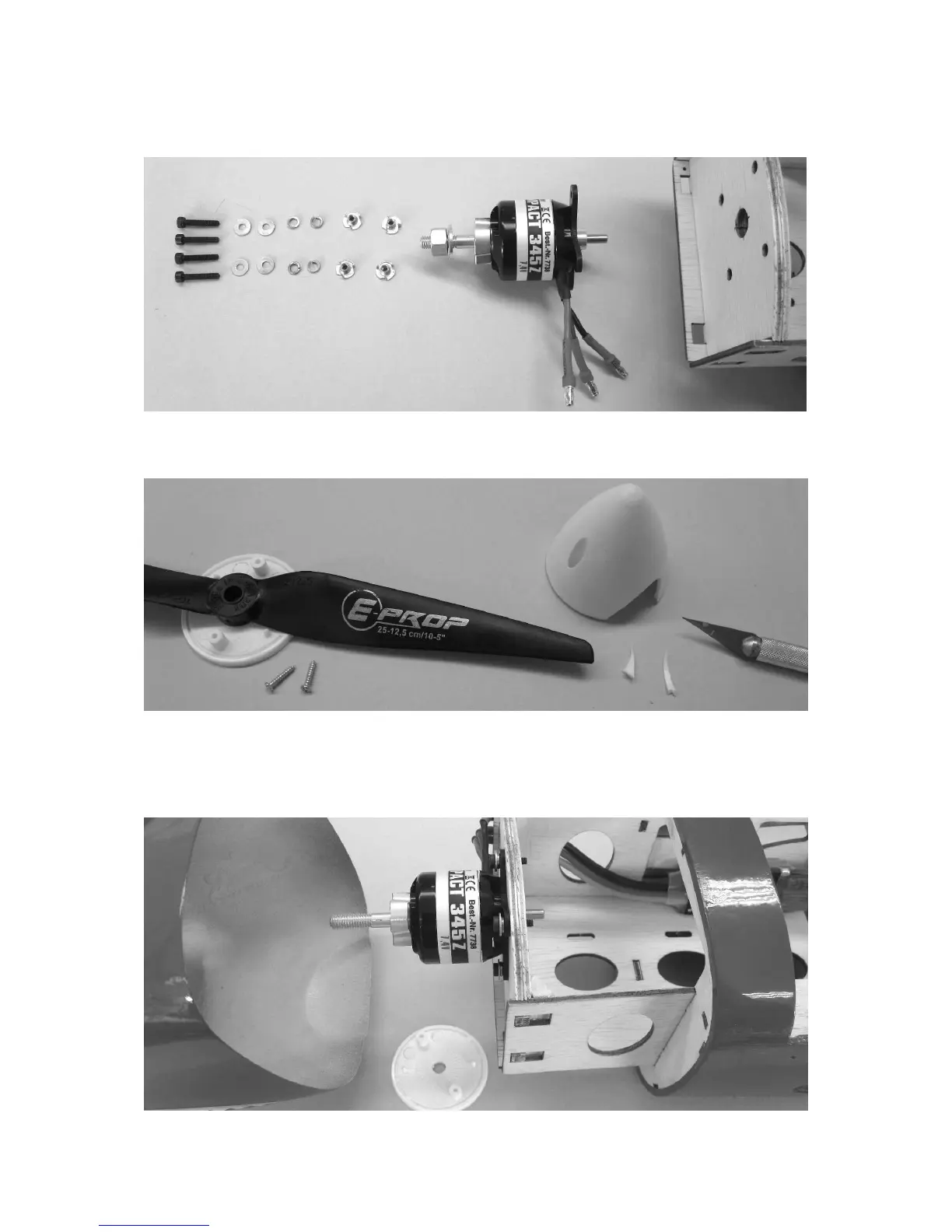

the motor. Viewed in flight direction, the motor should rotate to the right; if this is not
the case, switch any two of the leads and re-insert.
Using the 4 M 3x10 mm and the washers and locking rings shown, screw the motor
in tight.
Place the GRP propeller spacer onto the propeller, enlarge the cut-outs in the spinner
cap to fit the propeller, separate the two short pins on the spinner back plate, so that
the spinner cap fits and can be pushed on without any stress.
