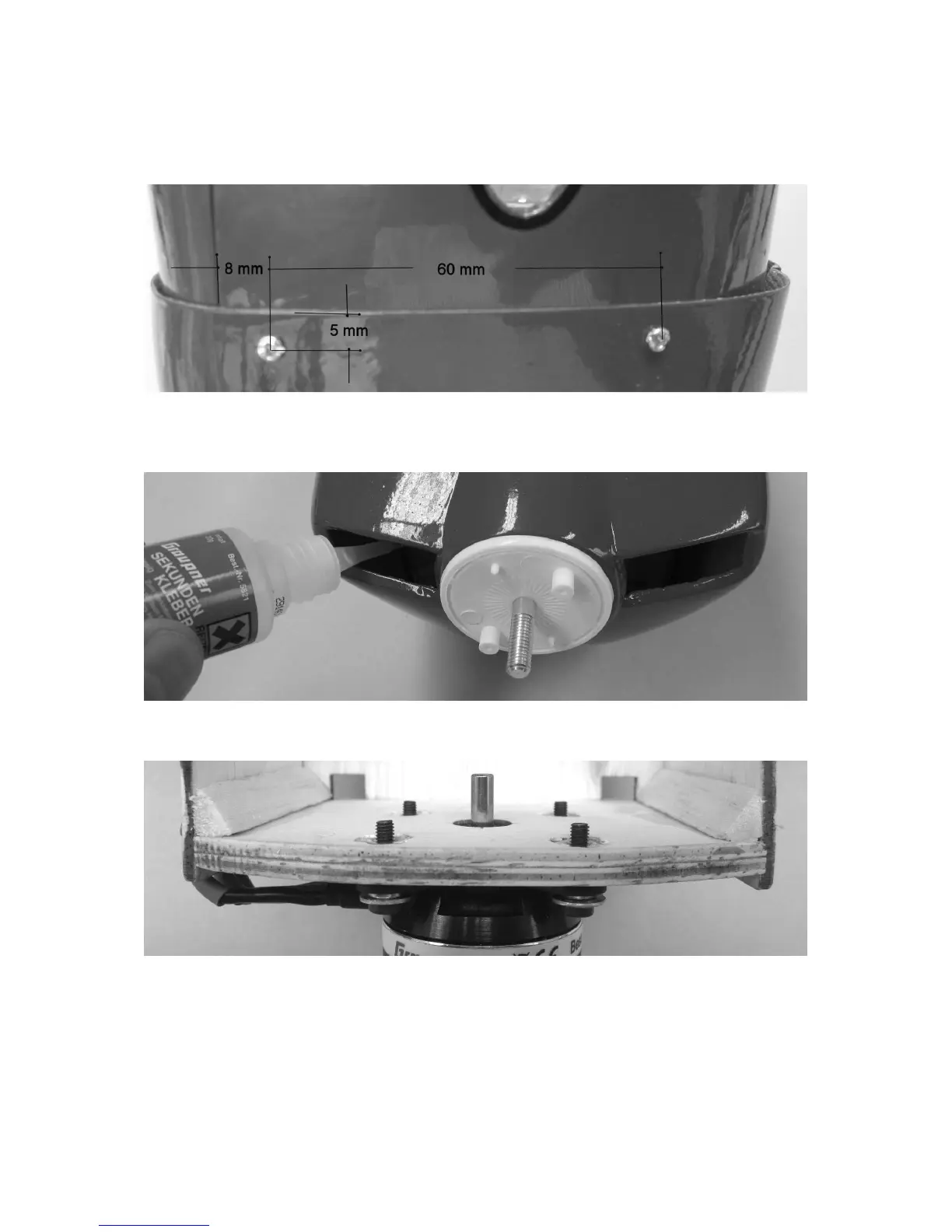

Now adjust the motor with the moveable motor bulkhead so that spinner and motor
bonnet match up. When everything fits, attach the motor bonnet with tape. Keep 1
mm of play between the spinner back plate and fuselage.
The motor bonnet, which is still held in place by tape, is now screwed into place with
four Ø 2.2x6 mm metal screws as shown in the illustration. Pre-drill at Ø 1.6 mm.
Glue the motor bulkhead in place through the cooling air intakes.
Remove the motor bonnet again, glue in the 8x8 mm chamfer strips and completely
glue in the motor bulkhead from the front as well.
