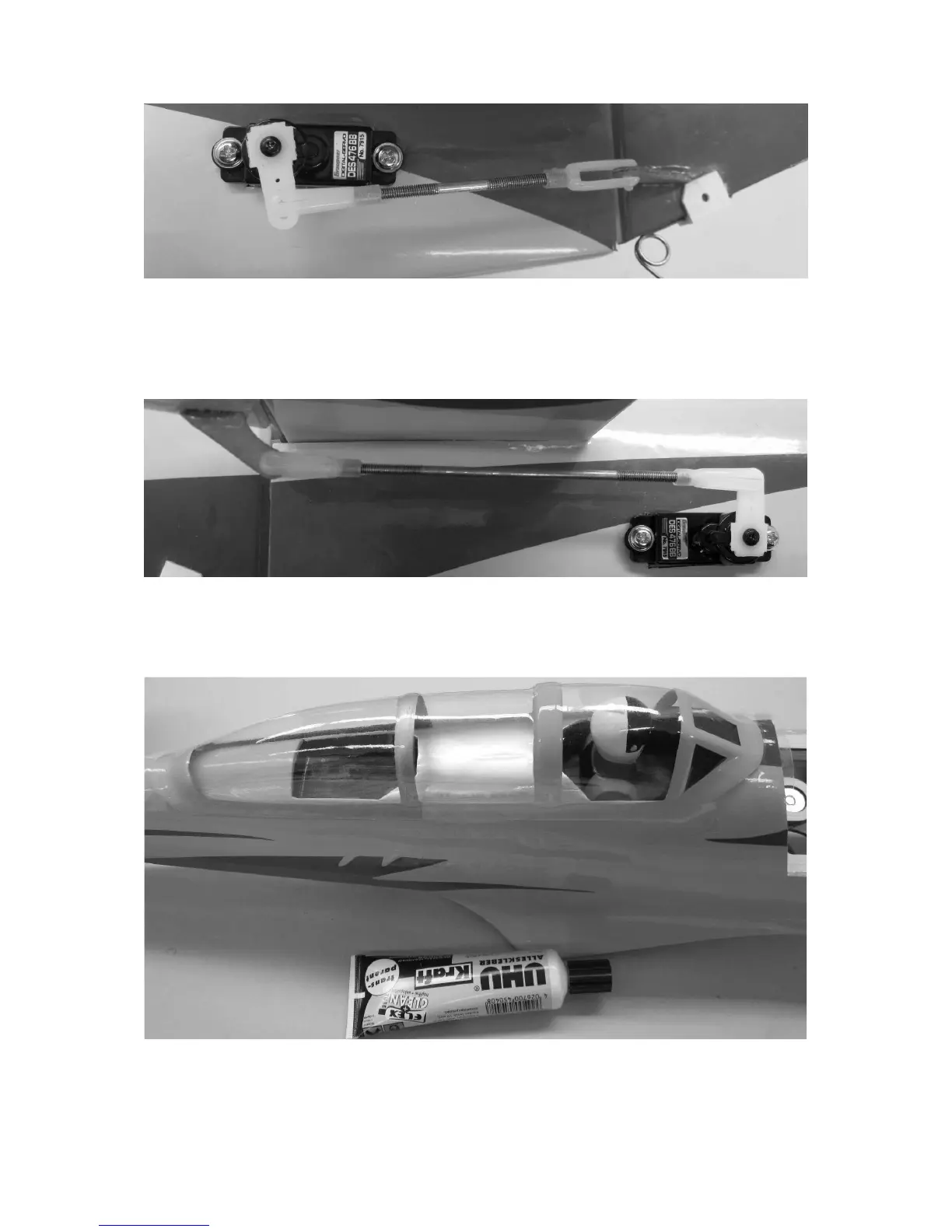

The figure shows the rudder servo with the control already attached. Also glue in the
rudder horn and drill a Ø 1.6 mm hole in the servo lever arm. Then
place rubber grommets on the servo, insert the hollow rivets from below, and screw
in the servo. All servo attachment elements are included with the respective servos.
The figure shows the elevator servo with the control already attached. Installation is
done according to the same principle as already described. Attach a 320 mm servo
extension cable to each aileron and elevator servo.
