3. Install belt cover.
NOTE: Use figure 14 to determine the location of the
5/16" wing knob (item 26) and rubber bumper (item 27)
when installing the belt cover.

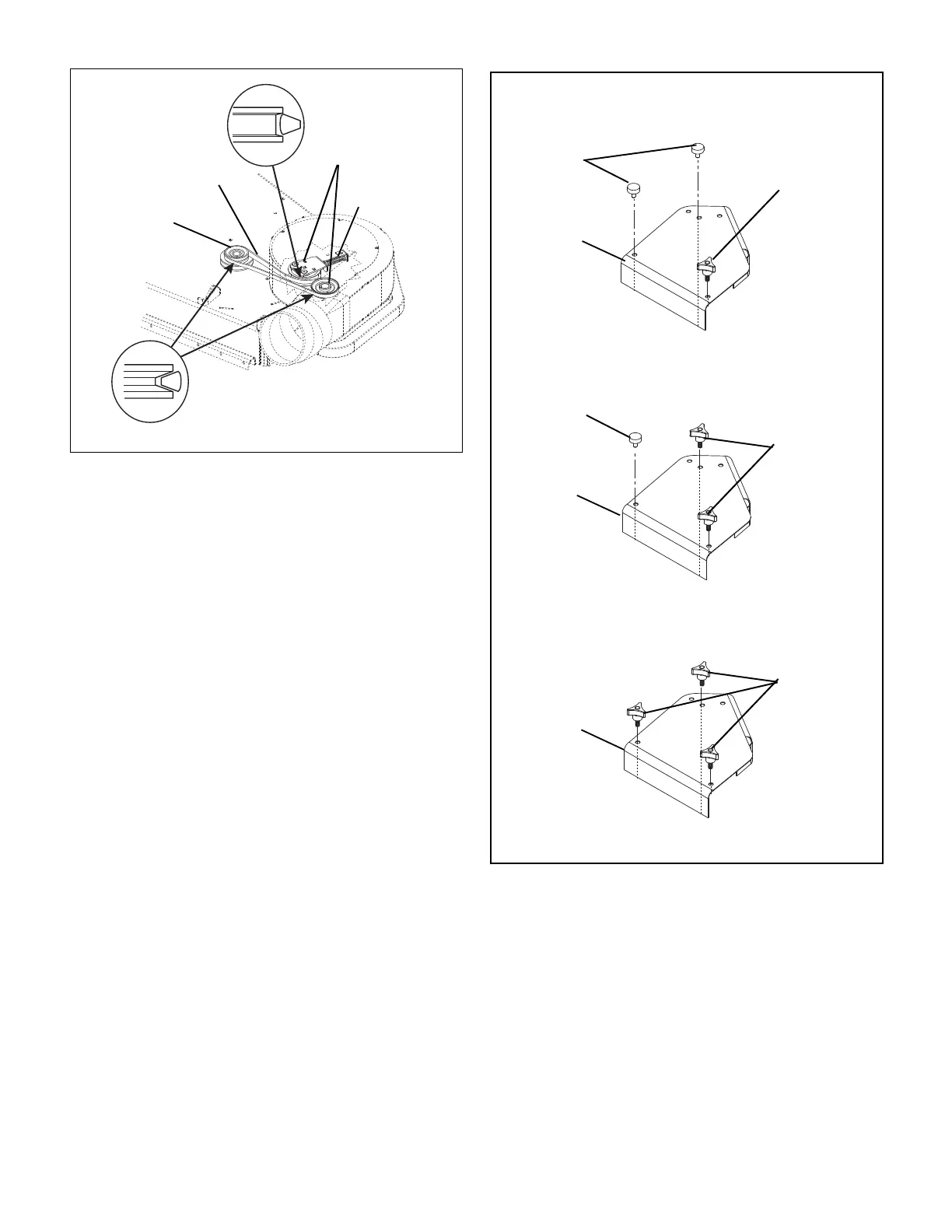

Figure 13
OTt3024
V-Belt
Blower
Assembly
Pulleys
Double
Pulley
Compression
Spring
Figure 14
52-Inch Decks
60- and 66-inch Decks
Rubber
Bumper
(Item 27)
Belt Cover
5/16" Wing
Knob
(Item 26)
Belt Cover
5/16" Wing
Knob
(Item 26)
72-Inch Decks
Belt Cover
5/16" Wing
Knob
(Item 26)
Rubber
Bumper
(Item 27)
