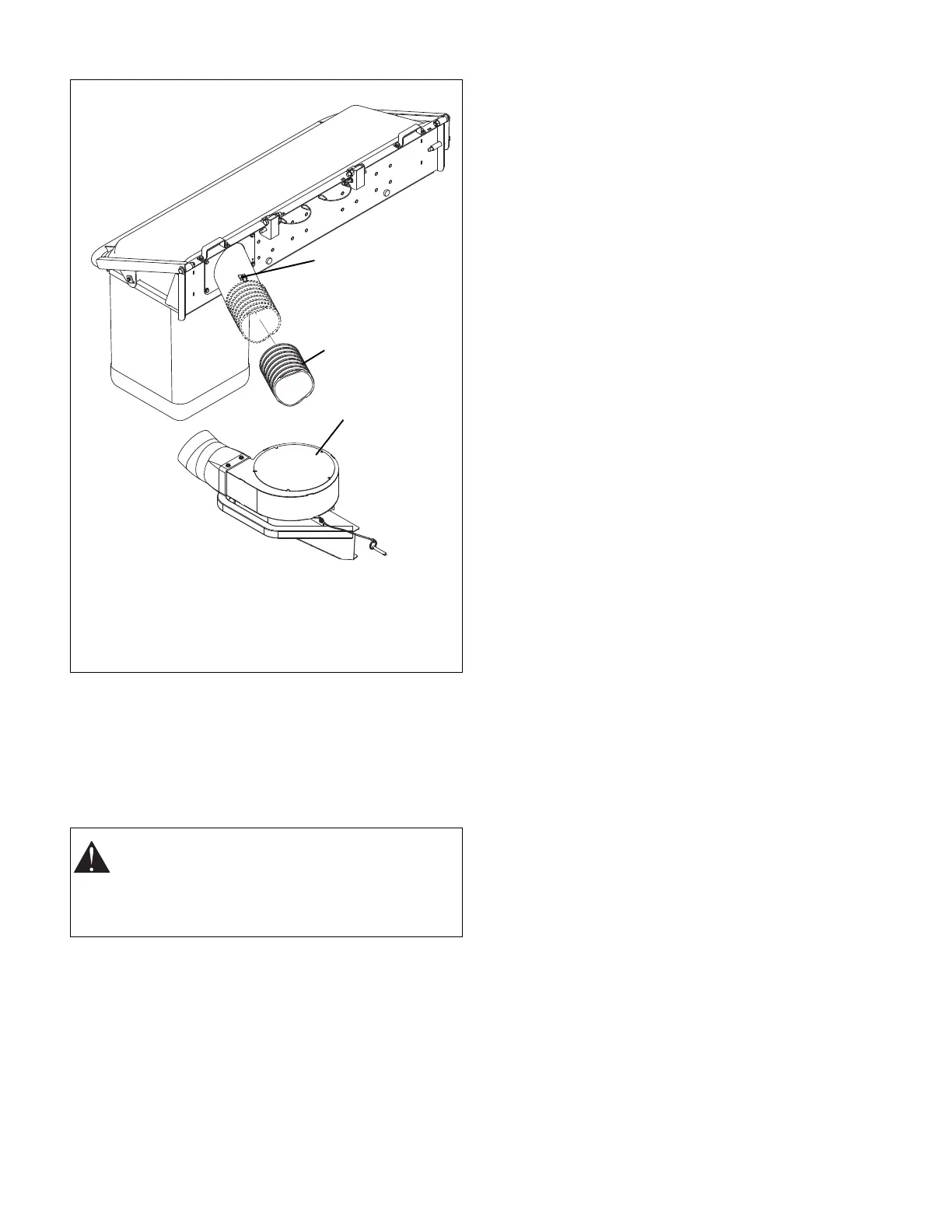

INSTALL HOSE FIGURE 15
1. Install hose (item 3) onto the inlet assembly (item 2)
and secure with thumb latch.
2. Install hose (item 3) onto the blower assembly
(item 9)
NOTE: Trim hose length as needed. The hose must fit in
clip on the inlet assembly (item 2) and over the hose
adapter on the blower assembly (item 9).
Item Description Item Description
2 Inlet Assembly 9 Blower Assembly
3Hose
Figure 15
CAUTION: Deflected material may cause injury.
ALWAYS operate mower with bagger cover
closed and secured, blower assembly fastened
securely, or with chute deflector in operating
position.
2
9
3
