Gravely 200 Series User Manual

24

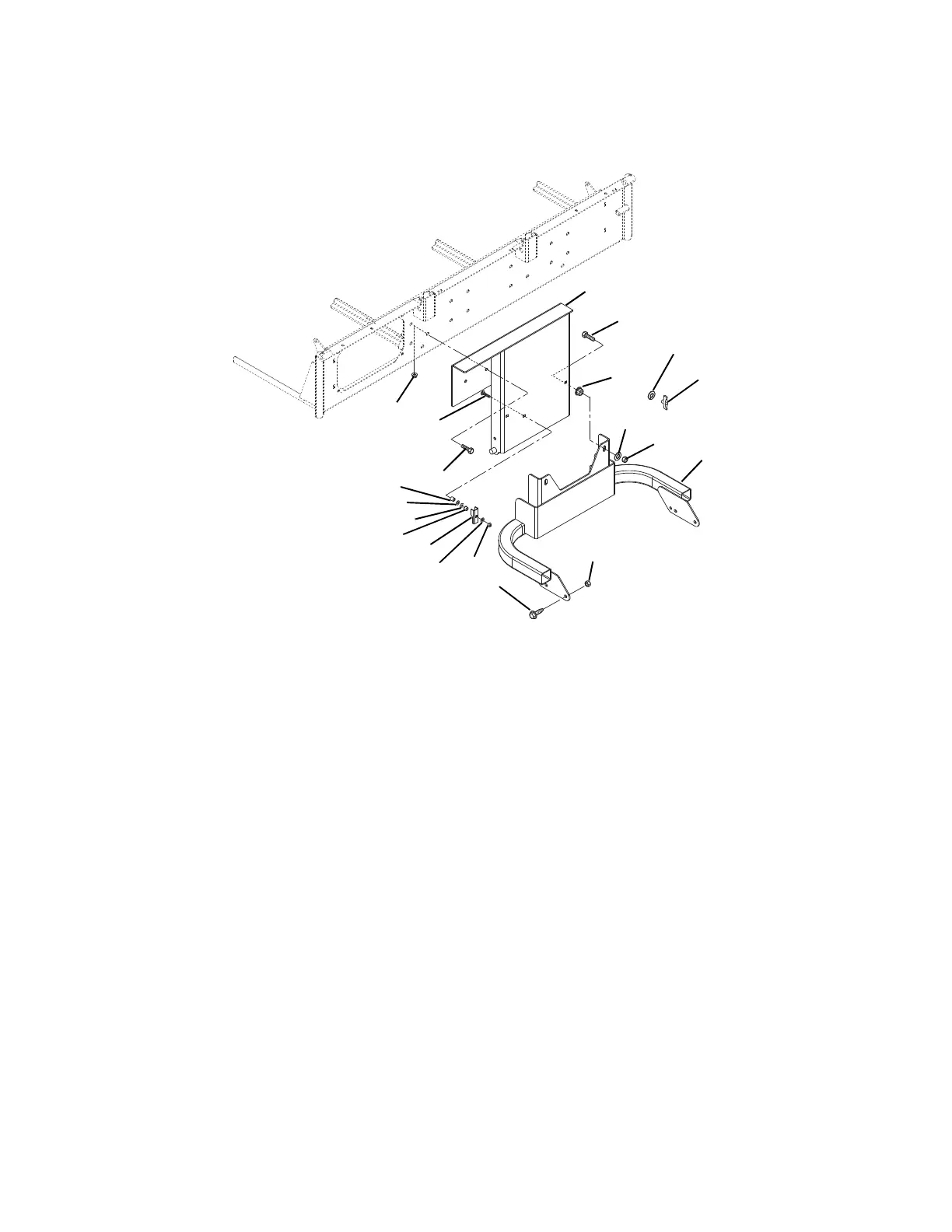

BAGGER MOUNT
Item Part No. Qty. Description
1 06545500 14 Nut, .38-16 Nyloc Flange
2 00460951 1 Upper Mount, 3-Bag
3 06223800 2 Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5
4 06534900 2 Nut, Spinlock Flange .375
5 00455851 1 Mount, Bagger 200 Series
6 05961100 6 Bolt, Hex .38-16 x 3.25 Grade 5
7 05948700 8 Bolt, Hex .38-16 x 1.00 Grade 5
8 06400006 2 Washer, Flat Steel .406 x 1.50 x .245
9 06306500 2 Washer, Locking .375 x .115 Heavy (Tool-less hardware option)
10 07019300 2 Nut, Wing .38-16 (Tool-less hardware option)
11 00186400 1 Spacer .41 x .75 x .88
12 06435900 2 Washer, Flat Steel .438 x 1.00 x .083
13 03704900 1 Wave Washer .640 x .875 x .125 Free Height
14 05508900 1 Bushing, Sleeve .377 x .624 x .235
15 00610751 1 Latch, Bagger Upper Mount
16 06542000 1 Nut, Locking Top Flange .38-16
17 06224300 1 Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
1
2
3
410
5
6
7
1
9
1
8
17
11
15
12
14
16
12
13
