GB - 11

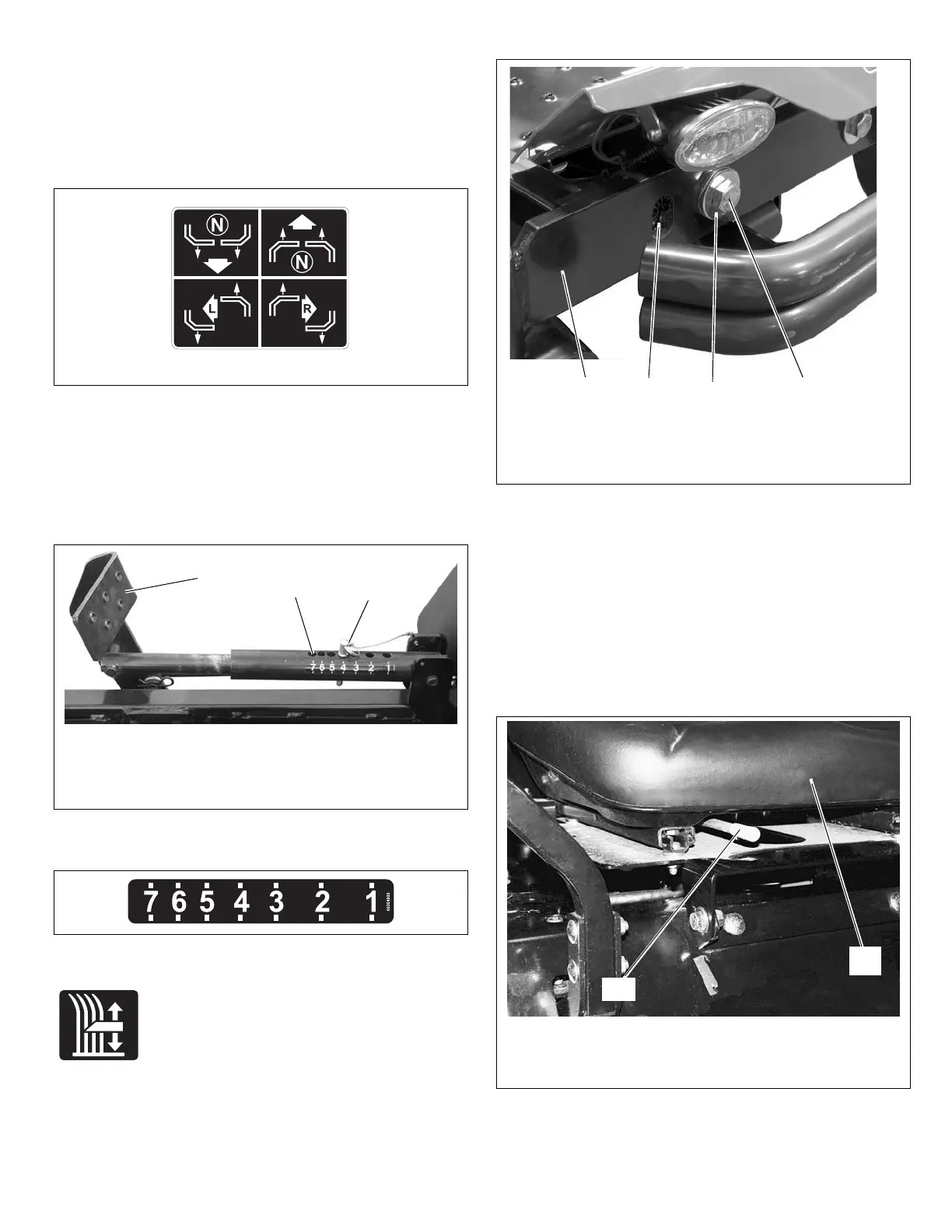

Steering Levers
• Reverse (1) – Pull both steering levers backward.
• Forward (2) – Push both steering levers forward.
• Left (3) – Pull left steering lever back or push right
steering lever forward or a combination of both.
• Right (4) – Pull right steering lever back or push left
steering lever forward or a combination of both.
NOTE: To stop, return both steering levers to neutral.
NOTE: The steering levers must be in the neutral position to
start the engine.
NOTE: The parking brake must be disengaged prior to
moving the steering levers from the neutral position.
Mower Lift Pedal (Figure 5)
Raises and lowers mower deck.
NOTE: The adjustment pin is used to set the height of the
mower deck. See SPECIFICATIONS on page 25 for cutting
height dimensions.
Press mower lift pedal and install adjustment pin in the
desired adjustment hole.
NOTE: Adjusting the seat further forward will
help increase the leverage in lifting the mower
deck (see Adjusting Seat on page 11).
Axle Locks (Figure 6)
NOTE: The unit comes shipped with the front axle in the
lockout position.
If a pivoting front axle is needed: Remove axle lock
hardware from lockout position and install axle lock
hardware in pivoting position on both sides of front axle.
NOTE: To lock front axle, install axle lock hardware in the
lockout position on both sides of the axle.
Adjusting Seat
Lift adjustment lever and slide seat forward or backward to
the desired position.
1
2
3
4
2
3
1. Adjustment Pin
2. Mower Lift Pedal
3. Adjustment Hole
Figure 5
1
08088400A
43
2
1
1. Front Axle
2. Pivoting Position
3. Lockout Position
4. Axle Lock Hardware
Figure 6
2
1. Seat 2. Adjustment Lever
Figure 7
1
