Gravely 988060 - Continuity Diagrams for Recoil Start Models

9 - 37

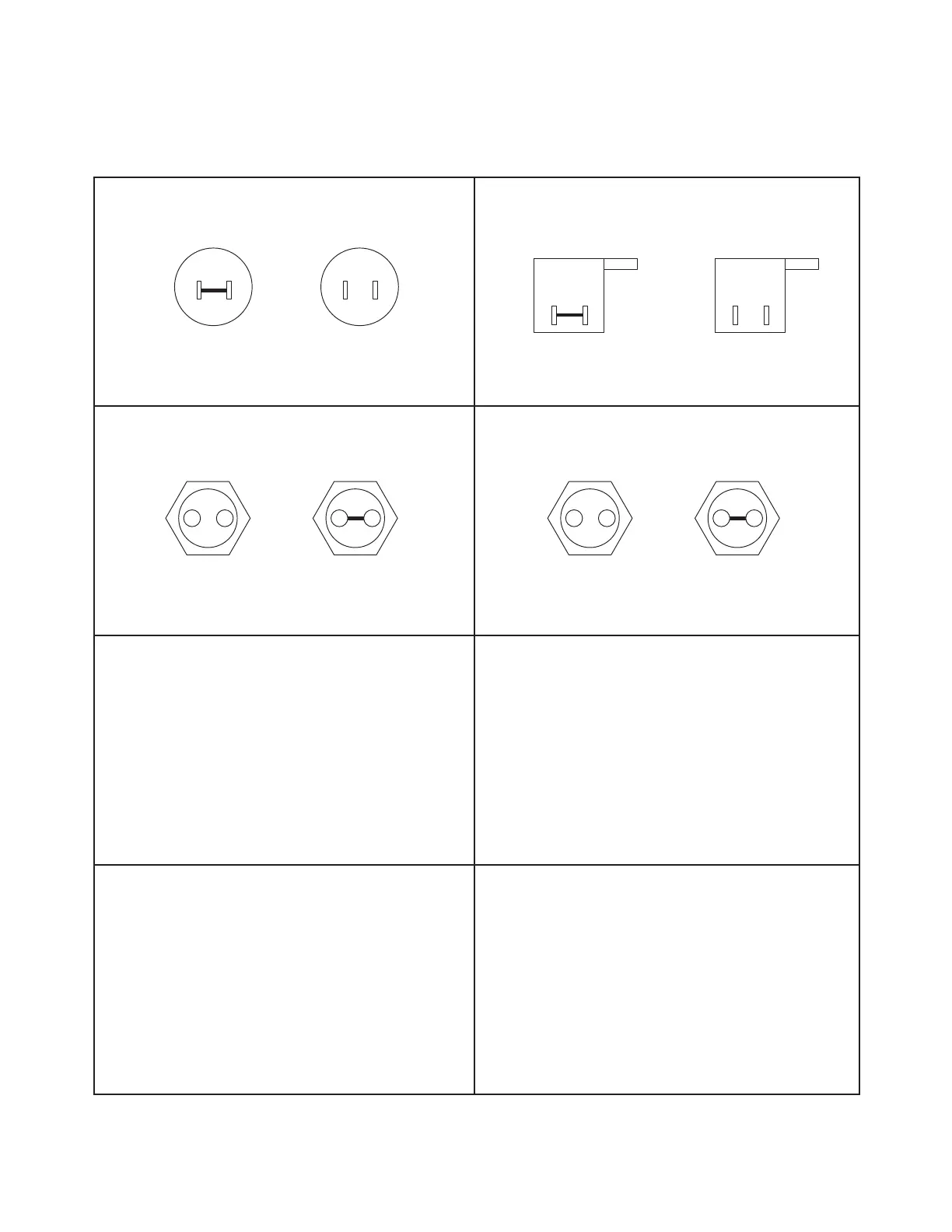

9.14 CONTINUITY DIAGRAMS
Recoil Start Models
PG0471
RUN
(button down)
OFF
(button up)
1
2
DISENGAGED
(button out)
1
2
ENAGED
(button in)
Transmission Neutral Switch
(034640)
1
2
NEUTRAL
(button down)
1
2
RUN
(button up)
PTO Switch
(020916)
1
2
1
2
HAND
ON HANDLE
Bale Switch
(09251900)
HAND
OFF HANDLE
1
2
1
2
Key Switch
(02456500)
The diagrams below show the various states of connection for electrical components.
The solid lines on switches show continuity.
NOTE: All switches are viewed from the rear.
