7. Engage parking brake and check
adjustment. Repeat as needed.
8. Ensure bypass levers are in the operating
position after brake adjustment.
REPLACE MOWER BELTS
Belt Access
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Position mower deck at lowest cutting
height.
4. Loosen wing knobs securing belt covers
to the deck and remove belt covers. See
Figure 36.
5. Open the belt access panel. See Service
Position on page 19.
Remove PTO Belt
See Figure 27.
1. Using a spring puller, slowly remove
spring from anchor bolt until all tension is
removed.
2. Remove PTO belt from deck sheaves.
CAUTION: Damaged or worn
belts may result in injury and /
or damage to the unit. Check
belts for excessive wear or
cracks often.

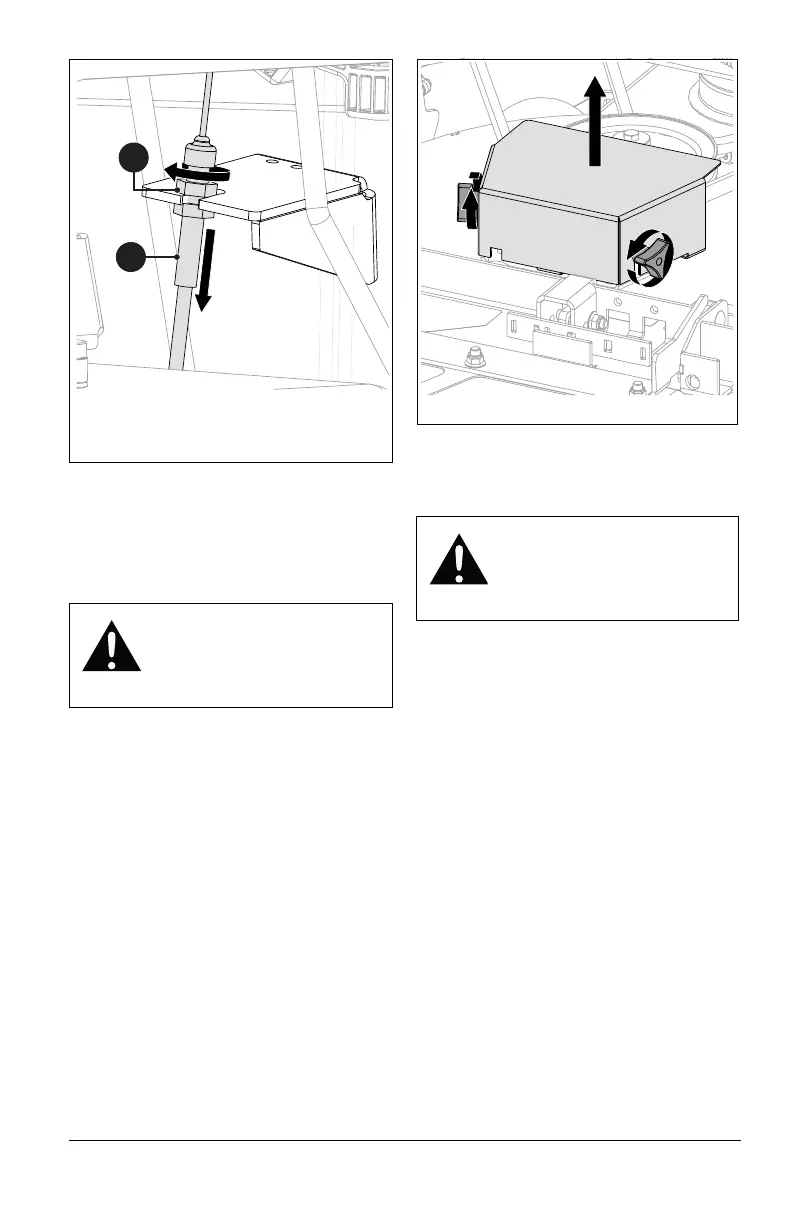

Figure 35
1. Jam Nut
2. Parking Brake Cable Adjuster
1
2
CAUTION: Use care when
releasing idler spring tension.
Keep body parts well away
from idlers when performing
this operation.
