Adjust Forward Position
The steering lever forward position may be
adjusted for operator comfort.
1. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
2. Loosen mounting hardware on steering
lever assemblies.
3. Place steering levers in desired position:
• Gently push levers forward for greater
distance from operator.
• Gently pull levers back for closer
distance to operator.
4. Tighten hardware.
ADJUST UNIT TO DRIVE
STRAIGHT
NOTICE: Reverse travel can only be
adjusted by your Gravely dealer.
Adjust Tire Pressure
1. Place unit in service position. See
Service Position on page 16.
2. Check tire pressures. If needed, adjust to
recommended pressures. See
Specifications on page 35.
3. Check tracking.
• If unit does not track straight, increase
tire pressure to the drive wheel of the
side it moves toward.
IMPORTANT: DO NOT exceed maximum tire
pressure listed on tire sidewall.
• If increasing tire pressure does not
correct tracking, adjust the limiter bolts
as directed below.
4. Align steering levers. See Adjust Steering
Levers on page 22.
Adjust Limiter Bolts

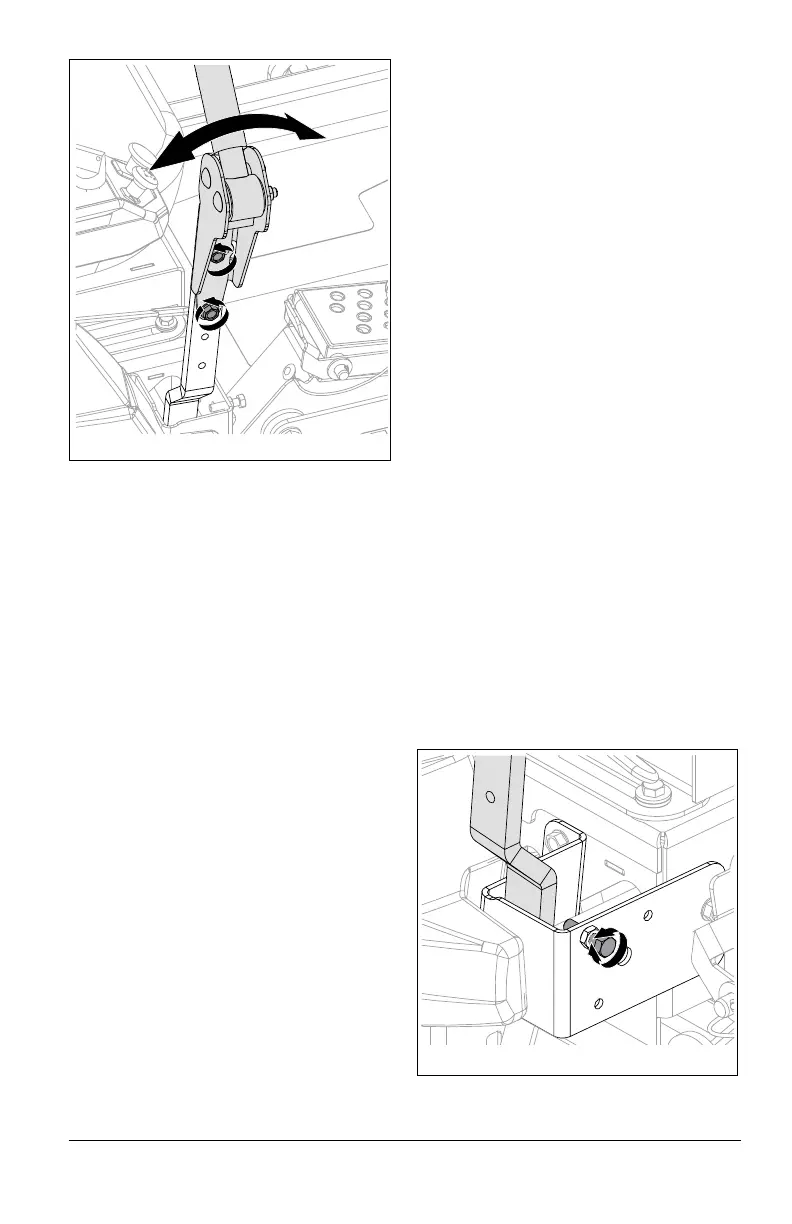

See Figure 26.
Limiter bolts can be adjusted to increase or
decrease drive wheel speeds. To adjust:
1. Loosen jam nut.
• Turn limiter bolt counterclockwise to
increase maximum drive wheel speed
on that side.
• Turn limiter bolt clockwise to reduce
maximum drive wheel speed on that
side.
2. Tighten jam nut.
