GB - 9
1. Remove the unit from shipping container.
2. Adjust tire pressure to 8 to 16 psi (55 to 110 kPa).
3. Check the adjustments outlined in Service &
Adjustments.
4. Check engine oil level. See engine manual.
5. Add clean fuel to the fuel tank. See engine manual for
type and grade.
6. Check for loose hardware.
7. Be sure that safety interlock system operates correctly.
See Check Safety Interlock System on page 10.
8. Be sure that unit tracks straight.
Unit must not pull sharply to the left or right when the
steering levers are released. See Adjusting the Unit to
Track Straight on page 17.
1. Shift Lever
2. Steering Lever Latches (988100, 102, 103, 110, 112)
3. Steering Levers (988100, 102, 103, 110, 112)
4. Control Levers (988114,115, 118, 119, 313)
5. Throttle Lever (988102, 103, 112, 115, 119)
6. Throttle-Choke Lever (988100, 114, 110, 118, 313)
7. Ignition Switch
8. PTO Switch
9. Operator Presence Controls
10. Fuel Cap
11. Recoil Starter Handle
12. Traction Belt Guard
13. Choke Control (988102, 103, 112, 115, 119)
14. Hour Meter
15. Muffler Guard (988313)
16. Pivot Bar (988114,115, 118, 119, 313)
17. Mower Lift Lock
18. Control Stop Lock Lever (988114,115, 118, 119, 313)
ASSEMBLY
WARNING: AVOID INJURY. Read and
understand the entire Safety section before
proceeding.

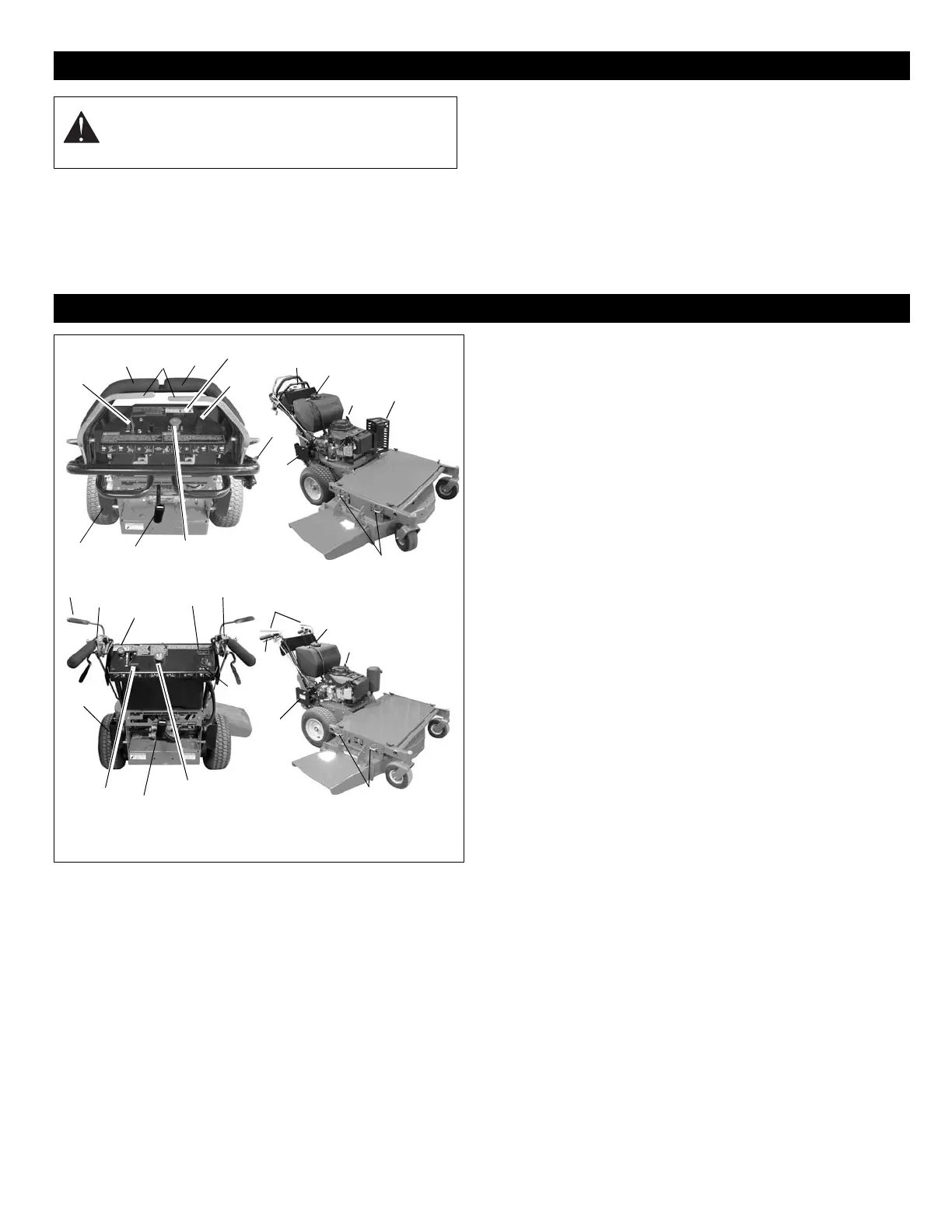

CONTROLS AND FEATURES
Figure 5
7
OG1765
OG1730
OG1720
OG0742
12
2
14
3
9
6
4
4
5
13
7
8
8
9
2
7
9
10
10
11
12
12
1
12
1
15
16
18
17
17
14
11
